Description

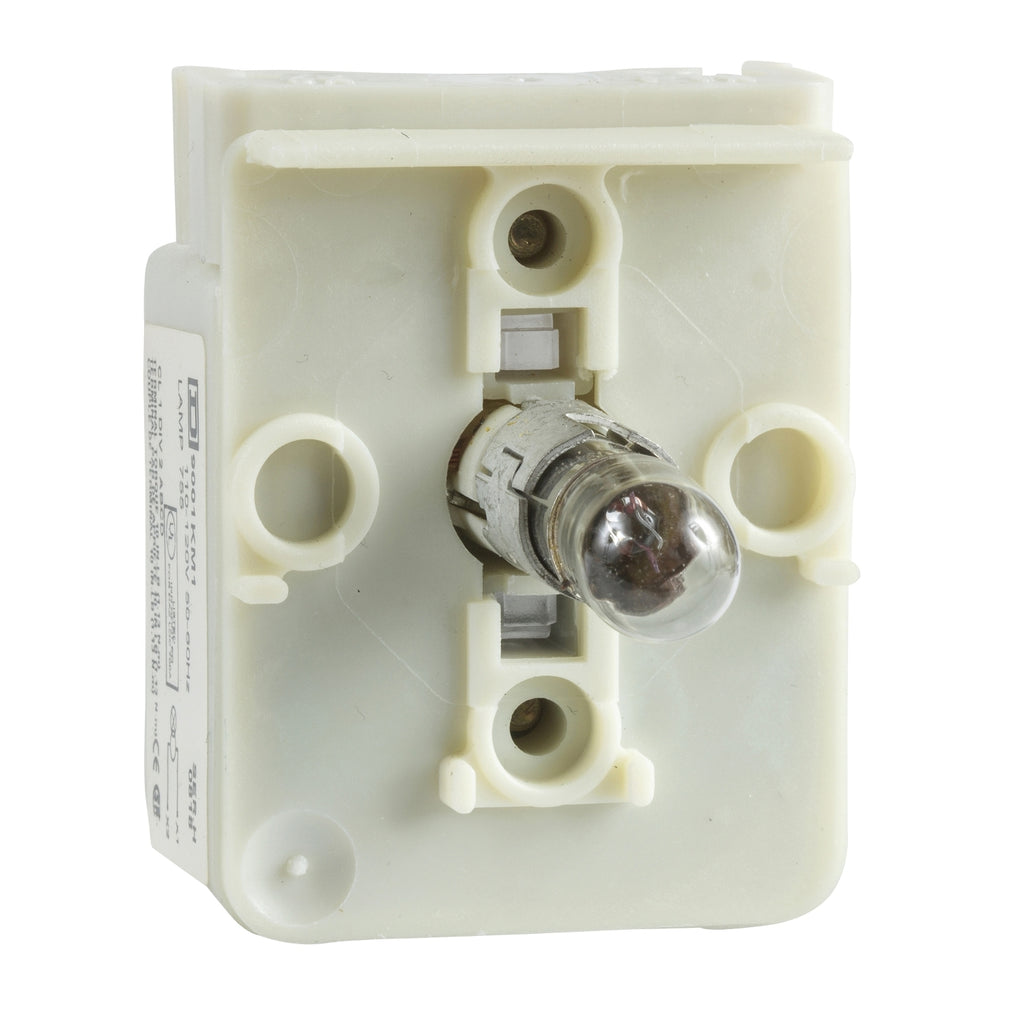

9001KM5 - Schneider Electric - Square D Motor Control Part And Accessory
This light block with transformer provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due illumination via integral LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, and vibration resistant thanks to its IP20, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K Harmony 9001SK |
|---|---|
| Product or Component Type | Light block |
| Device short name | 9001K |
| Bulb base | BA 9s |
| Light block supply | Direct via integral transformer 6 V |
| Net Weight | 0.317 lb(US) (0.144 kg) |
|---|---|
| Light source | Incandescent bulb |
| [Us] rated supply voltage | 380...480 V AC/DC |
| [Us] Rated supply voltage | 380...480 V |
| Light block supply | Via integral transformer |
| Supply frequency | 50...60 Hz |
| Size | 30 mm |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| IP degree of protection | IP20 IEC 60529 |
| Standards | UL 508 JIS C 852 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-4 IEC 60947-1 JIS C 4520 |
| Product Certifications | NEMA UL 508 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Category | US10CS121435 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901725336 |
| Returnability | No |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.90 in (4.826 cm) |
| Package 1 Width | 2.30 in (5.842 cm) |
| Package 1 Length | 3.70 in (9.398 cm) |
| Package 1 Weight | 5.280 oz (149.686 g) |
PRODUCT DATASHEET
