9001KN223 - Schneider Electric - Square D 30mm Marked Legend Plate

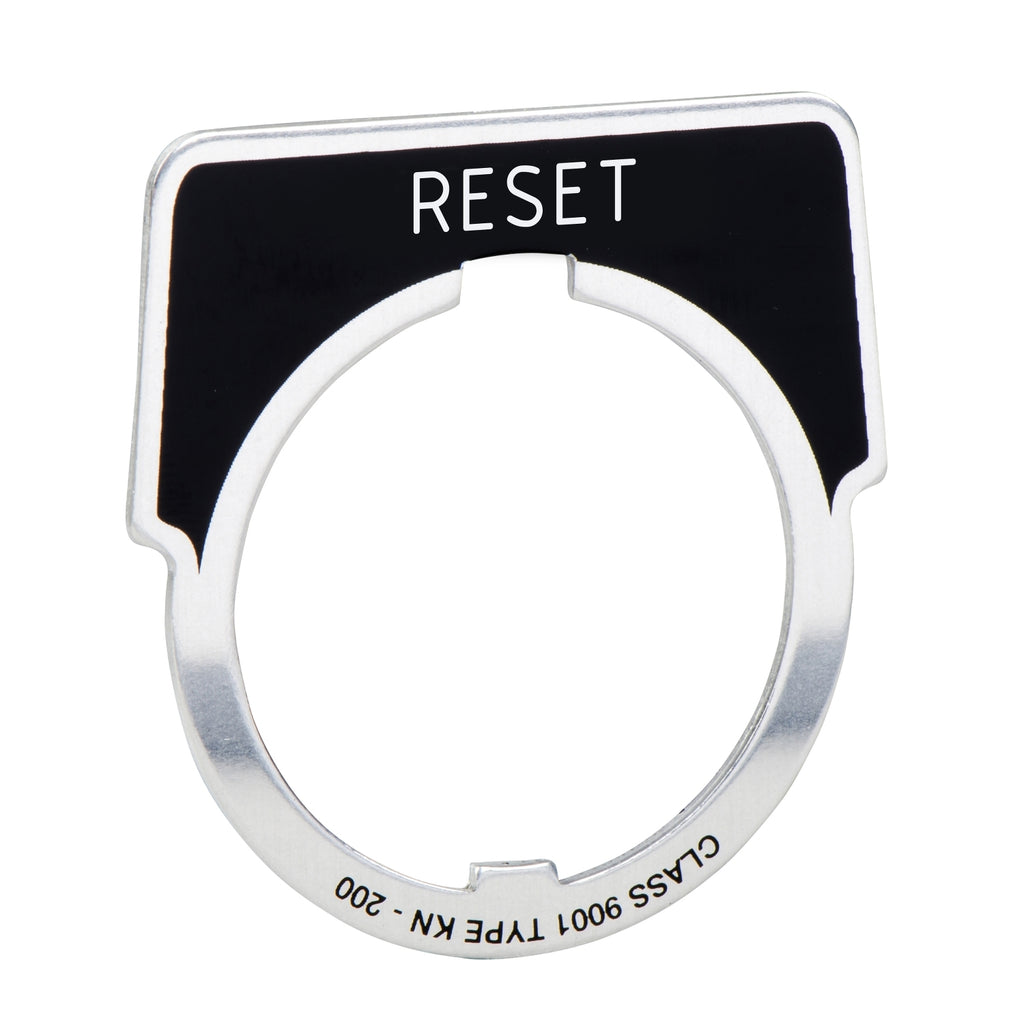

The Schneider Electric 9001KN223 is a 30mm aluminum legend plate designed for use with Harmony 9001K and 9001SK series push buttons and pilot lights. It features a black background with silver "RESET" lettering, providing clear and durable labeling for control panel operations.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K
Harmony 9001SK |
| Product or Component Type |
Marked legend |
| Accessory / Separate Part Type |
Legend plate |
| Accessory / separate part category |
Marking accessory |
| Accessory / separate part destination |
Control and signalling units Ø 30 mm (metal range) |
| Label dimensions |
40 x 43 mm |
| Marking |
White RESET black |
| User Language |
French |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Material |
Aluminium |
| Net Weight |
0.011 lb(US) (0.005 kg) |
| Size |
30 mm |
| Colour of marking |
Silver |
| Background colour |
Black |
| Marking |
RESET |
Ordering and shipping details
| Category |
US10CS121433 |
| Discount Schedule |
0CS1 |
| GTIN |
785901915928 |
| Returnability |
No |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.10 in (0.254 cm) |
| Package 1 Width |
1.80 in (4.572 cm) |
| Package 1 Length |
1.60 in (4.064 cm) |
| Package 1 Weight |
0.160 oz (4.536 g) |
PRODUCT DATASHEET
9001KN223_Product Datasheet
