9001KN301 - Schneider Electric - 30mm Square D Push Button Marked Legend

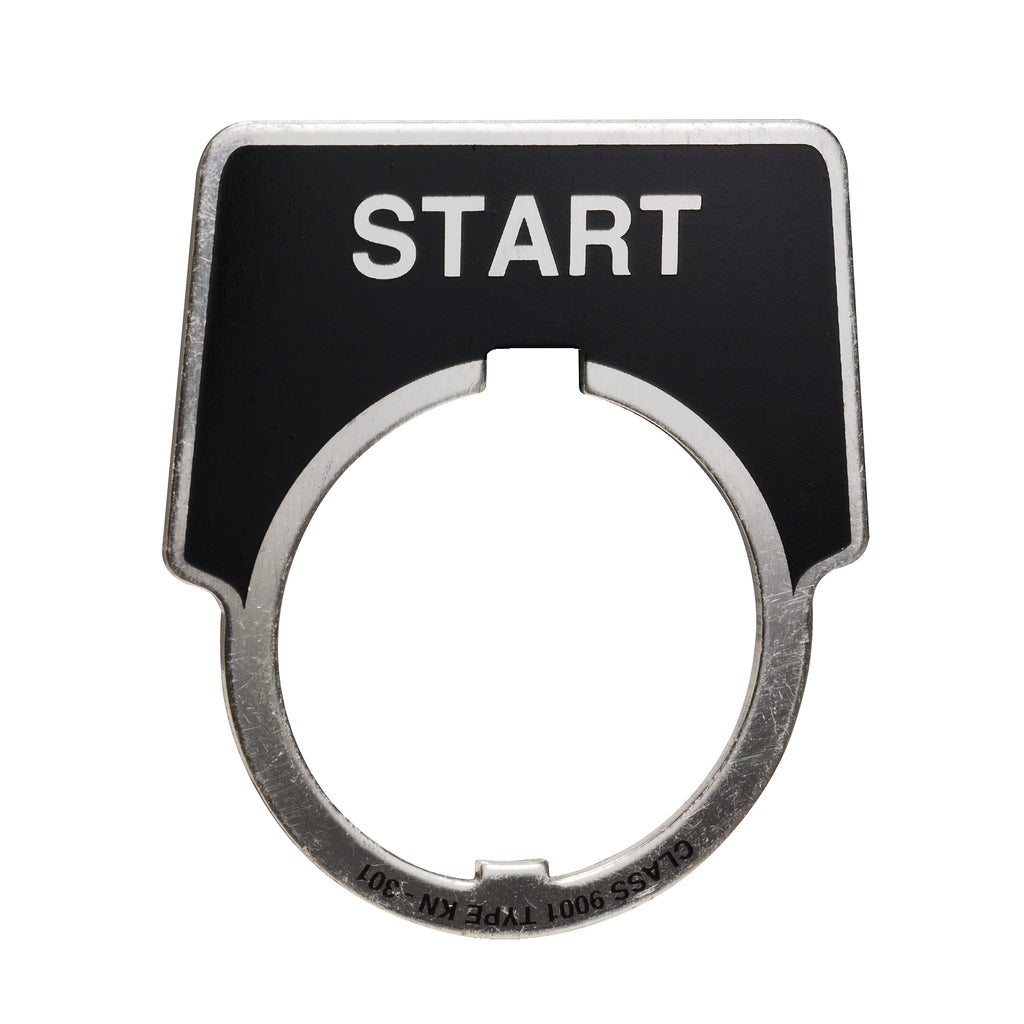

The Schneider Electric 9001KN301 is a 30mm aluminum legend plate designed for use with Harmony 9001K and 9001SK series push buttons and pilot lights. It features a black background with silver "START" lettering, providing clear and durable labeling for control panel operations.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K Harmony 9001SK |
|---|---|
| Product or Component Type | Marked legend |
| Accessory / Separate Part Type | Legend plate |
| Accessory / separate part category | Marking accessory |
| Accessory / separate part destination | Control and signalling units Ø 30 mm (metal range) |
| Label dimensions | 44 x 50 mm |
| Marking | White START |
| User Language | English |
| Mounting diameter | 1.2 in (30 mm) |
|---|---|
| Material | Aluminium |
| Net Weight | 0.011 lb(US) (0.005 kg) |
| Size | 30 mm |
| Colour of marking | Silver |
| Background colour | Black |
| Marking | START |
| Category | US10CS121433 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901915621 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.10 in (0.254 cm) |
| Package 1 Width | 1.80 in (4.572 cm) |
| Package 1 Length | 2.00 in (5.08 cm) |
| Package 1 Weight | 0.160 oz (4.536 g) |
