9001KP - Schneider Electric - Square D Motor Control Part And Accessory

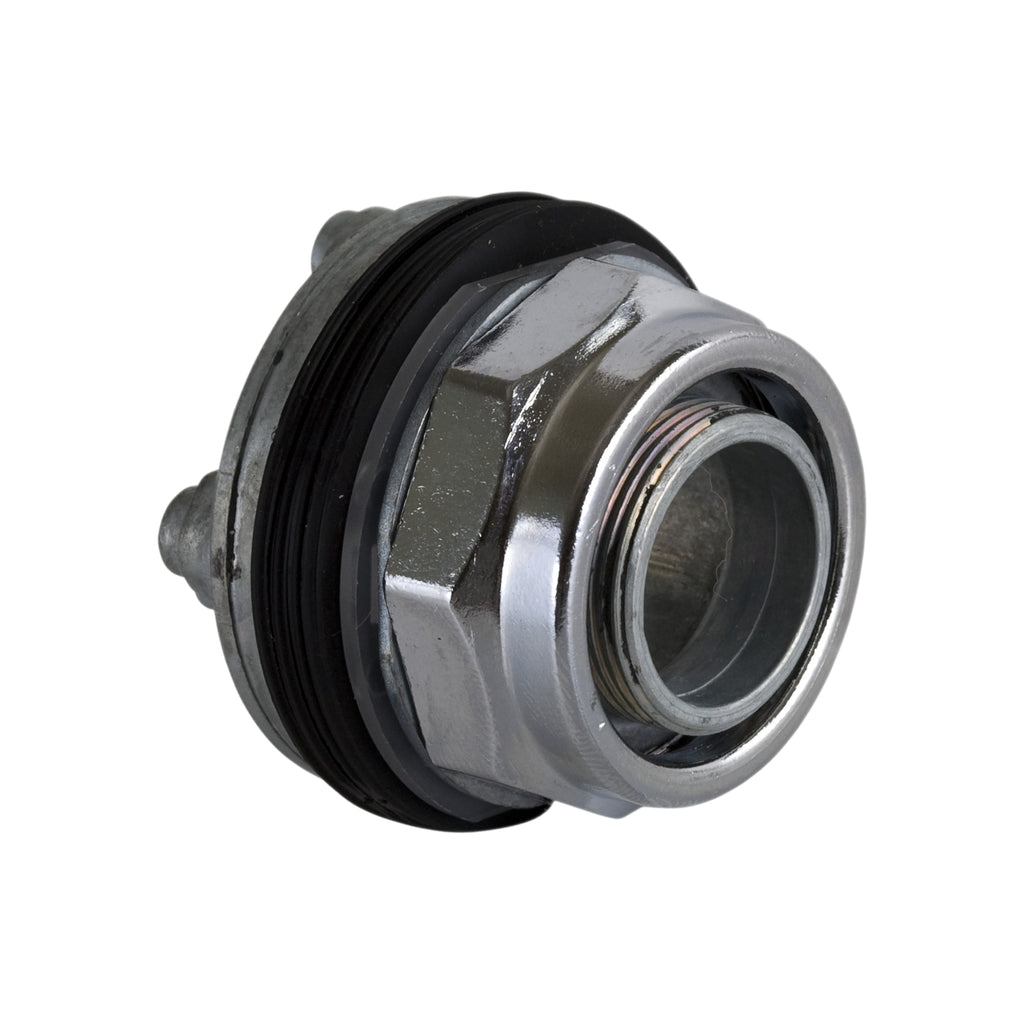

This Harmony 9001KP is a pilot light without light module, without lens. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for pilot light |
| Device short name |
K |
Complementary
| Bezel material |
Metal |
| Mounting diameter |
1.2 in (30 mm) |
| Cap/operator or lens colour |
Without cap |
| Light source |
without |
| Bulb base |
BA 9s |
| Light block supply |
Without supply |
| Connections - terminals |
Screw clamp terminals |
| Shape of screw head |
Round |
| Light source |
Bulb not included |
| Operating Mode |
Normal |
| Light block supply |
Without supply |
| Size |
30 mm |
Environment
| Product Certifications |
CSA LR25490 class 3211 03
CE
UL listed file E42259 CCN NKCR |
| IP Degree of Protection |
IP65/IP66 |
| NEMA degree of protection |
NEMA 3R/6/13 |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901909309 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.90 in (4.826 cm) |
| Package 1 Width |
2.20 in (5.588 cm) |
| Package 1 Length |
3.70 in (9.398 cm) |
| Package 1 Weight |
3.52 oz (99.79 g) |
PRODUCT DATASHEET
9001KP_Product Datasheet
