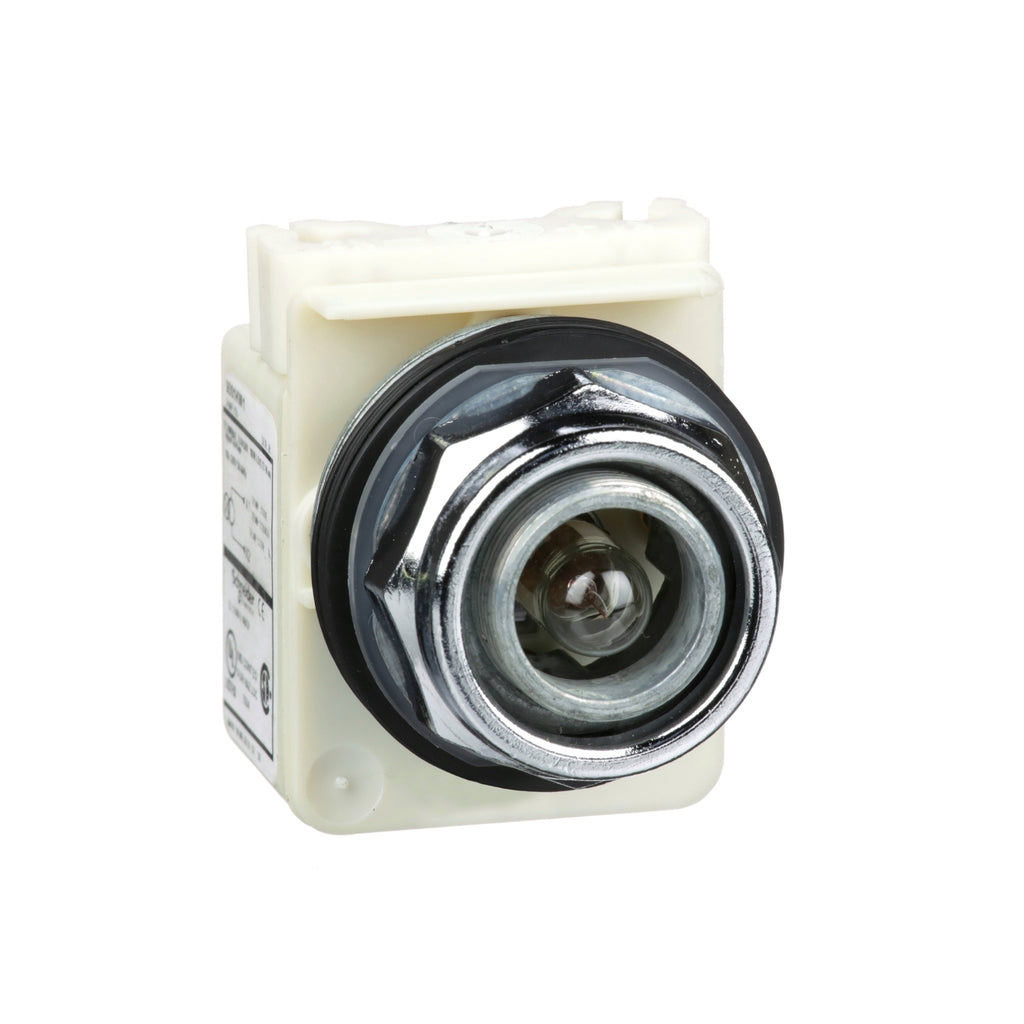

9001KP1 - Schneider Electric - Square D Motor Control Part And Accessory
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for pilot light |
| Device short name |
K |
Complementary
| Bezel material |
Metal |
| Mounting diameter |
1.2 in (30 mm) |
| Cap/operator or lens colour |
Without cap |
| Bulb base |
BA 9s |
| Light block supply |
Via transformer 110 V AC 50/60 Hz
Via transformer 120 V AC 50/60 Hz |
| Shape of screw head |
Round |
| Light source |
Incandescent bulb |
| Operating Mode |
Normal |
| [Us] rated supply voltage |
110...120 V |
| Light block supply |
Via integral transformer |
| Supply frequency |
50...60 Hz |
| Size |
30 mm |
Environment
| Product Certifications |
CE
CSA LR25490 class 3211 03
UL listed file E42259 CCN NKCR |
| IP Degree of Protection |
IP65/IP66 |
| NEMA degree of protection |
NEMA 3R/6/13 |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901732501 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.800 in (4.572 cm) |
| Package 1 Width |
2.200 in (5.588 cm) |
| Package 1 Length |
3.600 in (9.144 cm) |
| Package weight(Lbs) |
7.84 oz (222.26 g) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
1200 |
| Package 2 Height |
40.0 in (101.6 cm) |
| Package 2 Width |
40.0 in (101.6 cm) |
| Package 2 Length |
48.00 in (121.92 cm) |
| Package 2 Weight |
601.0005 lb(US) (272.609 kg) |
