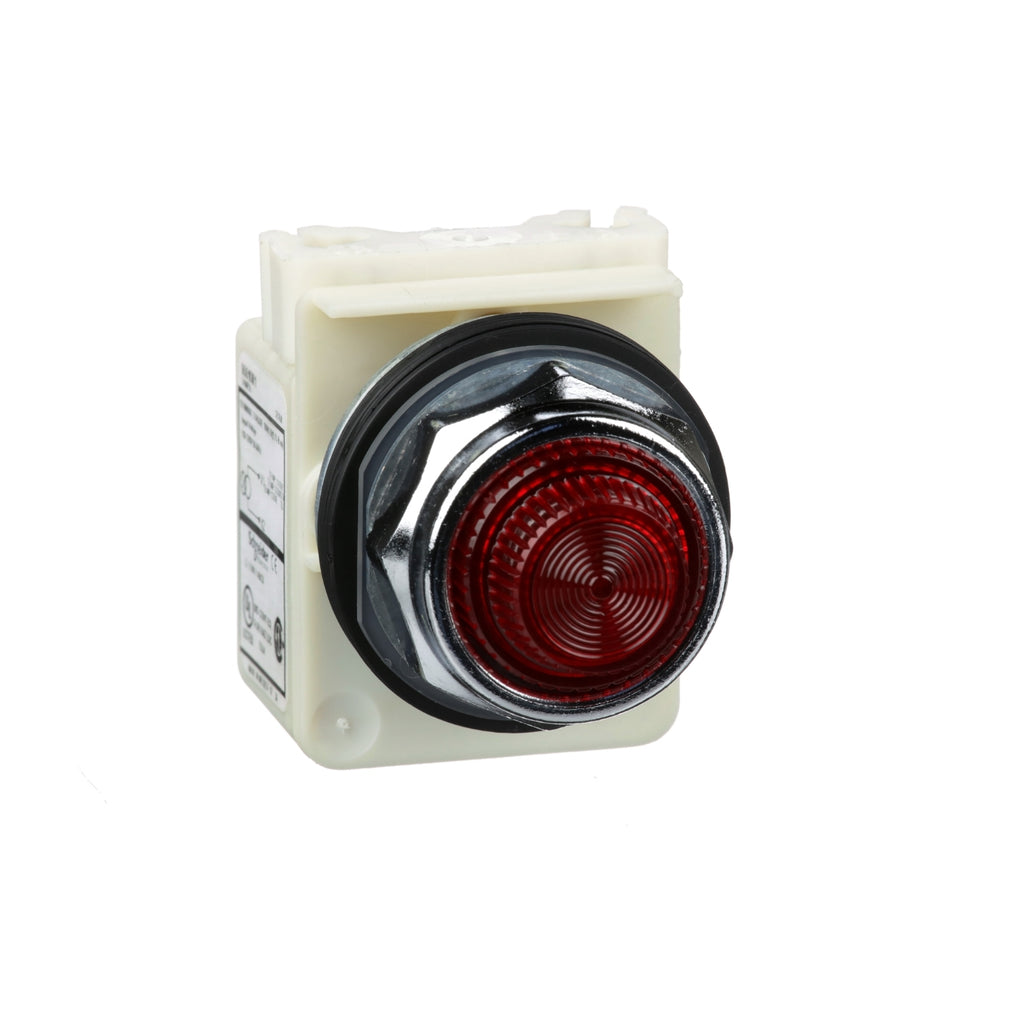

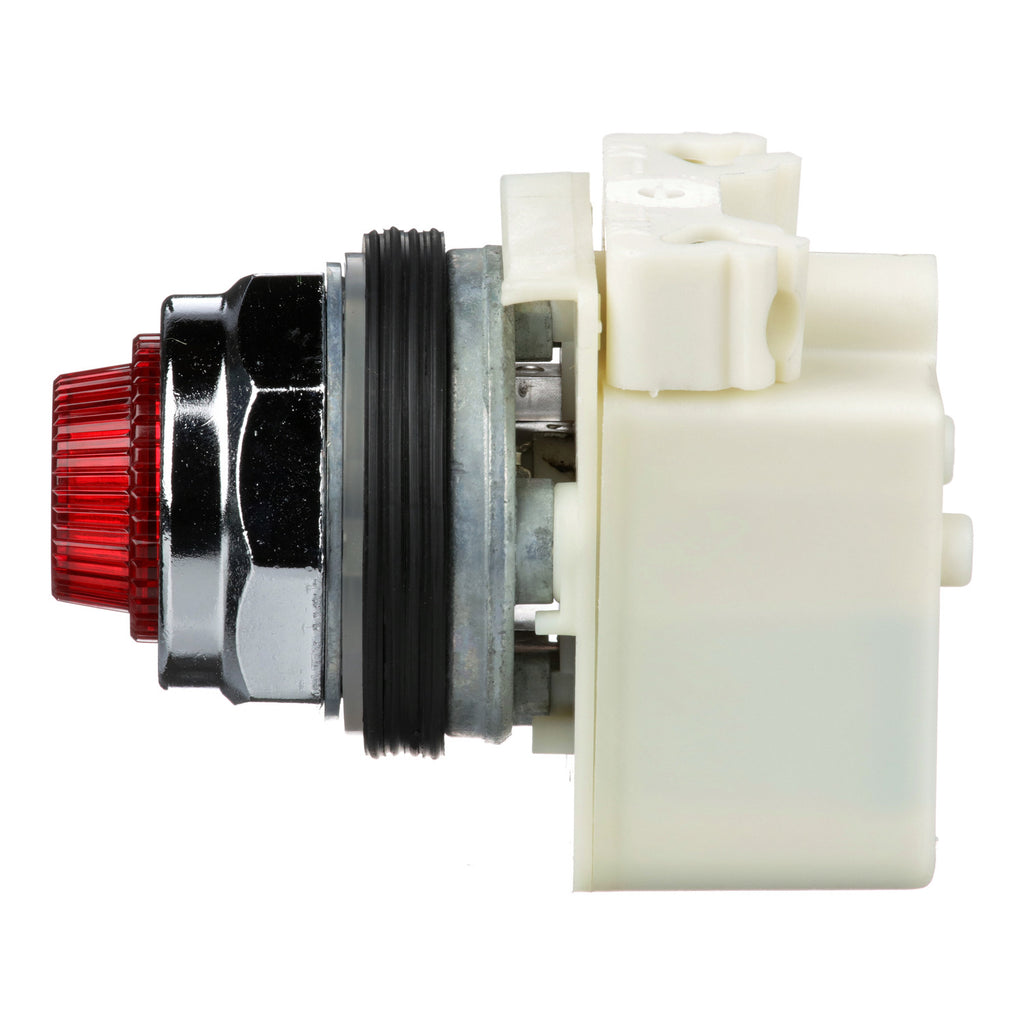

9001KP1R31 - Schneider Electric - Square D Motor Control Parts
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Pilot light |
| Device short name |
K |
Complementary
| Bezel material |
Metal |
| Mounting diameter |
1.2 in (30 mm) |
| Lens type |
Fresnel plastic |
| Cap/operator or lens colour |
Red |
| Light source |
incandescent |
| Bulb base |
BA 9s |
| Light block supply |
Via transformer 120 V AC 50/60 Hz
Via integral transformer 110 V AC 50/60 Hz |
| Connections - terminals |
Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Shape of screw head |
Round |
| Operating position |
Any position |
| Light source |
Incandescent bulb |
| [Us] rated supply voltage |
110...120 V AC |
| Operating Mode |
Normal |
| Device presentation |
Complete product |
| Lens type |
Fresnel |
| [Us] rated supply voltage |
110...120 V |
| Light block supply |
Via integral transformer |
| Supply frequency |
50...60 Hz |
| Lens material |
Polycarbonate |
| Size |
30 mm |
Environment
| Product Certifications |
UL listed file E42259 CCN NKCR
CSA LR25490 class 3211 03
CE |
| IP Degree of Protection |
IP65/IP66 |
| NEMA degree of protection |
NEMA 3R/6/13 |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901094579 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.900 in (4.826 cm) |
| Package 1 Width |
2.200 in (5.588 cm) |
| Package 1 Length |
3.600 in (9.144 cm) |
| Package weight(Lbs) |
7.841 oz (222.300 g) |
| Unit Type of Package 2 |
S01 |
| Number of Units in Package 2 |
16 |
| Package 2 Height |
5.906 in (15.000 cm) |
| Package 2 Width |
5.906 in (15.000 cm) |
| Package 2 Length |
15.748 in (40.000 cm) |
| Package 2 Weight |
8.283 lb(US) (3.757 kg) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
512 |
| Package 3 Height |
29.528 in (75.000 cm) |
| Package 3 Width |
23.622 in (60.000 cm) |
| Package 3 Length |
31.496 in (80.000 cm) |
| Package 3 Weight |
282.673 lb(US) (128.218 kg) |
