Description

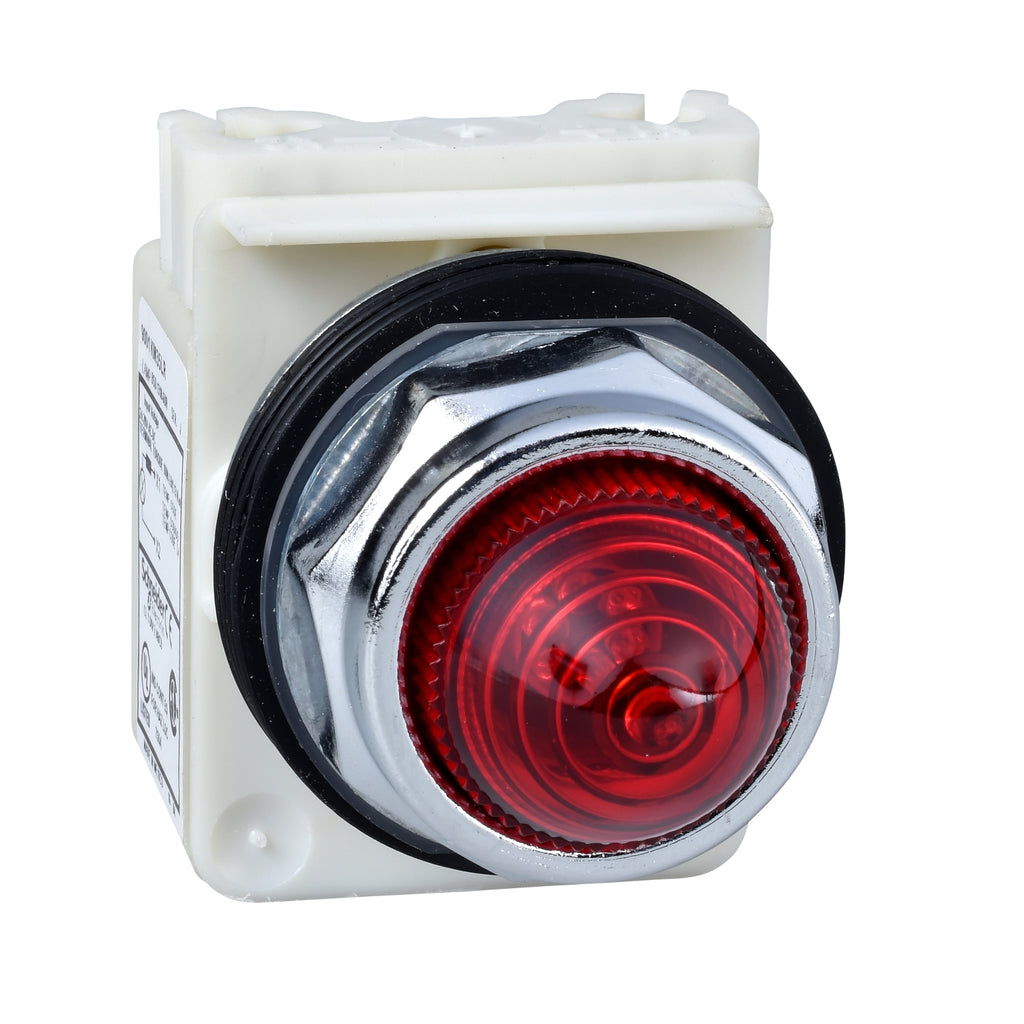

9001KP1R9 - Schneider Electric - Amp 120 Volt Square D Pilot Light
This single component red pilot light with transformer provides clear visual feedback on the status of your machines. It is supplied with 110Vac. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Pilot light |
| Device short name | 9001K |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Shape of signaling unit head | Round |
| Lens type | Domed plastic |
| Cap/operator or lens colour | Red |
| Light source | incandescent |
| Bulb base | BA 9s |
| Light block supply | Via integral transformer 120 V AC 6 V) |
| Connections - terminals | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| Shape of screw head | Cross slotted |
| Shape of screw head | Cross slotted |
| Operating position | Any position |
| [Ui] rated insulation voltage | 250 V 2)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| Short-circuit protection | 10 A cartridge fuse IEC 60947-5-1 |
| Light source | Incandescent bulb |
| [Ith] conventional free air thermal current | 10 A |
| CAD overall width | 2.1 in (54 mm) |
| CAD overall height | 2.8 in (70 mm) |
| CAD overall depth | 1.7 in (42 mm) |
| [Us] rated supply voltage | 110...120 V AC |
| Net Weight | 0.46 lb(US) (0.21 kg) |
| Device presentation | Complete product |
| Lens type | Domed |
| [Us] Rated supply voltage | 110...120 V |
| Light block supply | Via integral transformer |
| Supply frequency | 50...60 Hz |
| Lens material | Polycarbonate |
| Size | 30 mm |
| Standards | CSA C22.2 No 14 EN/IEC 60947-5-4 EN/IEC 60947-5-1 EN/IEC 60947-1 JIS C 852 JIS C8201-5-1 UL 508 JIS C8201-1 |
|---|---|
| Product Certifications | NEMA UL 508 |
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP66 IEC 60529 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901005681 |
| Returnability | No |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.80 in (4.572 cm) |
| Package 1 Width | 2.20 in (5.588 cm) |
| Package 1 Length | 3.70 in (9.398 cm) |
| Package 1 Weight | 7.84 oz (222.26 g) |
