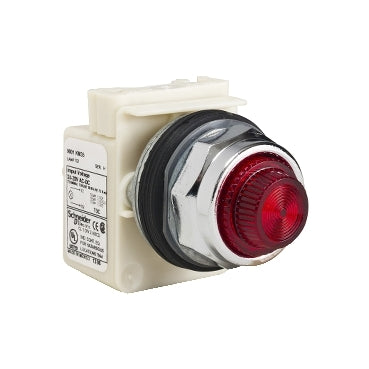

9001KP35R31 - Square D - 30mm 24–28V Red Fresnel Lens Pilot Light
This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments. It weighs 134g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Pilot light |
| Device short name |
K |
Complementary
| Bezel material |
Metal |
| Mounting diameter |
1.2 in (30 mm) |
| Lens type |
Fresnel plastic |
| Cap/operator or lens colour |
Red |
| Light source |
incandescent |
| Bulb base |
BA 9s |
| Light block supply |
Full voltage 28 V
Direct 24 V |
| Connections - terminals |
Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Shape of screw head |
Round |
| Operating position |
Any position |
| Light source |
Incandescent bulb |
| [Us] rated supply voltage |
24...28 V AC/DC |
| Operating Mode |
Normal |
| Device presentation |
Complete product |
| Lens type |
Fresnel |
| [Us] rated supply voltage |
24...28 V |
| Light block supply |
Full voltage |
| Lens material |
Polycarbonate |
| Size |
30 mm |
Environment
| Product Certifications |
CE
CSA LR25490 class 3211 03
UL listed file E42259 CCN NKCR |
| NEMA degree of protection |
NEMA 3R/6/13 |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901032892 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.900 in (4.826 cm) |
| Package 1 Width |
2.300 in (5.842 cm) |
| Package 1 Length |
3.700 in (9.398 cm) |
| Package weight(Lbs) |
4.960 oz (140.614 g) |
PRODUCT DATASHEET
9001KP35R31
