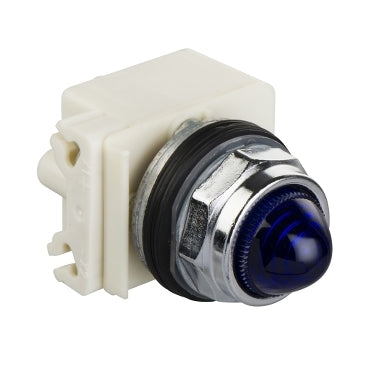

9001KP38LLL9 - Square D - 30mm 120V Blue LED Domed Lens Pilot Light
This Harmony 9001K, blue pilot light with integral LED and plastic dome is supplied with 110V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Pilot light |
| Device short name | 9001K |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Shape of signaling unit head | Round |
| Lens type | Domed plastic |
| Cap/operator or lens colour | Blue |
| Light source | Blue LED |
| Bulb base | BA 9s |
| Light block supply | Direct 120 V AC/DC |
| Connections - terminals | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| shape of screw head | Cross slotted |
| Shape of screw head | Cross slotted |
| Operating position | Any position |
| [Ui] rated insulation voltage | 250 V 2)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| Short-circuit protection | 10 A cartridge fuse IEC 60947-5-1 |
| Light source | LED |
| [Ith] conventional free air thermal current | 10 A |
| CAD overall width | 2.1 in (54 mm) |
| CAD overall height | 2.8 in (70 mm) |
| CAD overall depth | 1.7 in (42 mm) |
| [Us] rated supply voltage | 120 V AC/DC |
| Net Weight | 0.295 lb(US) (0.134 kg) |
| Device presentation | Complete product |
| Lens type | Domed |
| [Us] rated supply voltage | 120 V |
| Light source colour | Blue |
| Lens material | Polycarbonate |
| Size | 30 mm |
| Standards | EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-5-4 UL 508 JIS C 852 JIS C8201-5-1 JIS C8201-1 |
|---|---|
| Product Certifications | NEMA UL 508 |
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901413028 |
| Returnability | No |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.800 in (4.572 cm) |
| Package 1 Width | 2.100 in (5.334 cm) |
| Package 1 Length | 3.600 in (9.144 cm) |
| Package weight(Lbs) | 5.12 oz (145.15 g) |
