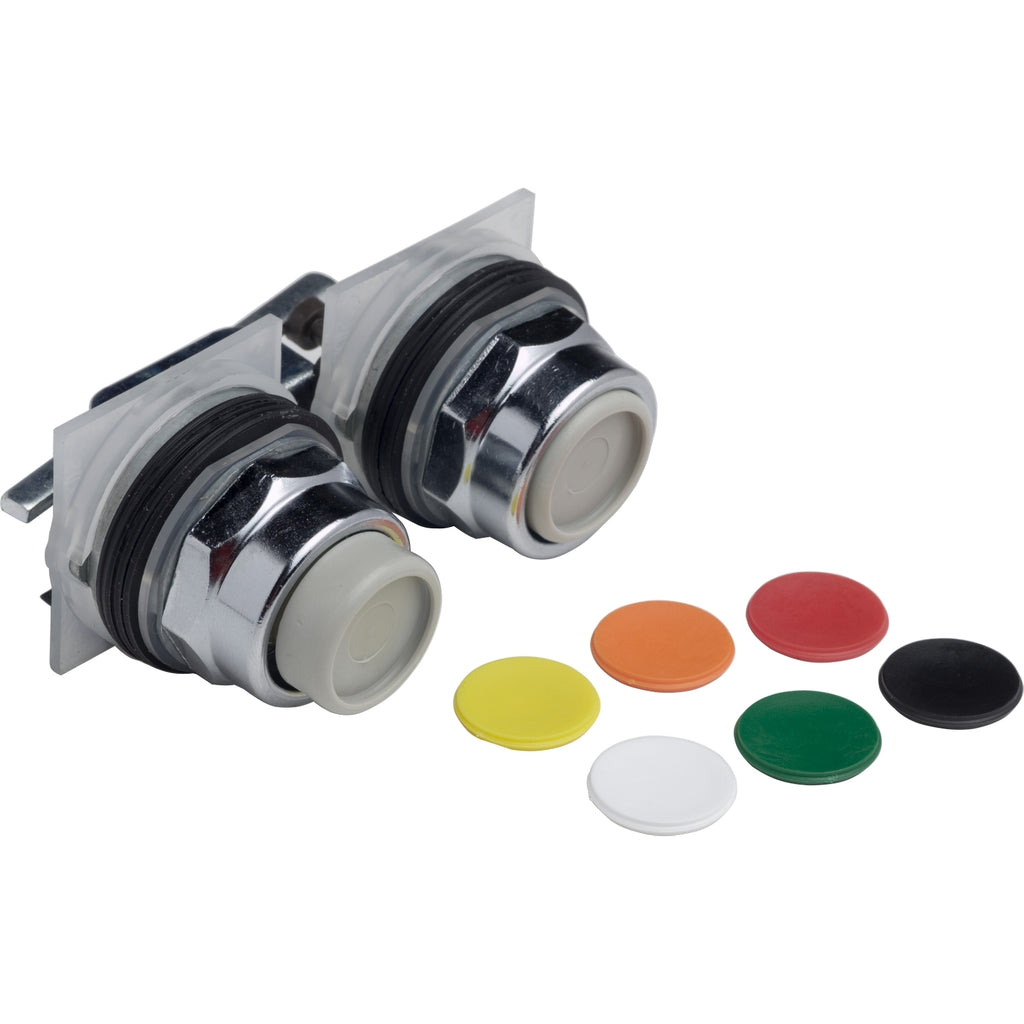

9001KR11U - Schneider Electric - 30mm Square D Push Button with LED Light
This head for push-button is a separate component of the range of control and signaling units, Harmony 9001K diameter 30mm. It has a chromium-plated metal bezel. It features spring return flush push. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for double-headed push-button |
| Device short name |
9001K |
| Operator profile |
flush |
| Operator additional information |
Metal guard |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Bezel material |
Metal |
| Cap/operator or lens colour |
7 colours choice |
| Operator profile |
Flush |
| Type of operator |
Stay put |
| Contacts type and composition |
Without contact block |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901008903 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.00 in (5.08 cm) |
| Package 1 Width |
2.90 in (7.366 cm) |
| Package 1 Length |
4.60 in (11.684 cm) |
| Package 1 Weight |
10.080 oz (285.763 g) |
| Unit Type of Package 2 |
S01 |
| Number of Units in Package 2 |
12 |
| Package 2 Height |
5.91 in (15.0 cm) |
| Package 2 Width |
5.91 in (15.0 cm) |
| Package 2 Length |
15.75 in (40.0 cm) |
| Package 2 Weight |
7.877 lb(US) (3.573 kg) |
