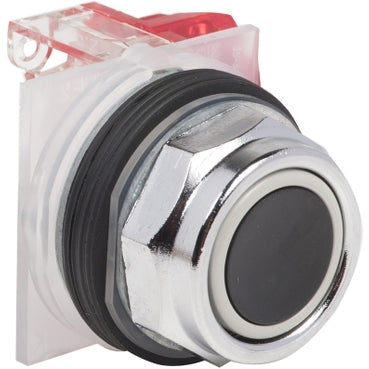

9001KR1BH6 - Square D - 30mm 1NC Flush Black Pushbutton
Roll over image to zoom in Click on image to zoom
9001KR1BH6 - Square D - 30mm 1NC Flush Black Pushbutton

9001KR1BH6 - Square D - 30mm 1NC Flush Black Pushbutton

Square DSKU: SQD9001KR1BH6
Price:
$43.66
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

9001KR1BH6 - Square D - 30mm 1NC Flush Black Pushbutton

This Schneider Electric Harmony 9001K modular flush black push-button with full guard has 2 positions, operates with spring return mechanism. It has 1 x NC contact and fits in a 30mm hole. It is supplied with contact block and uses screw-clamp terminals. It has a chromium-plated metal bezel. This flush push-button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Metal bezel. Ideal for severe environments, especially applications requiring high impact and vibration resistance. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13).

GENERAL SPECIFICATIONS

Main
Range of Product Harmony 9001K
Product or Component Type Push-button
Device short name K
Type of operator spring return
Operator profile Black flush
Operator additional information Metal guard
Complementary
Bezel material Metal
Mounting diameter 1.2 in (30 mm)
Light source without
Light source Without
Light block supply Without supply
Contacts type and composition 1 NC
Connections - terminals Screw clamp terminals
Operating position Any position
[Ie] rated operational current 10 A, AC-15
10 A, DC-13
Contact operation Standard
Device presentation Complete product
Cap/operator or lens colour Black
Operator profile Flush
Type of operator Spring return
Size 30 mm
Environment
Product Certifications CSA LR 25490 class 3211 03
CE
UL listed file E42259 CCN NKCR
NEMA
NEMA degree of protection NEMA 3R/6/13
Ordering and shipping details
Category US10CS121426
Discount Schedule 0CS1
GTIN 785901821052
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 1.900 in (4.826 cm)
Package 1 Width 2.200 in (5.588 cm)
Package 1 Length 3.700 in (9.398 cm)
Package weight(Lbs) 4.32 oz (122.47 g)

PRODUCT DATASHEET

9001KR1BH6
