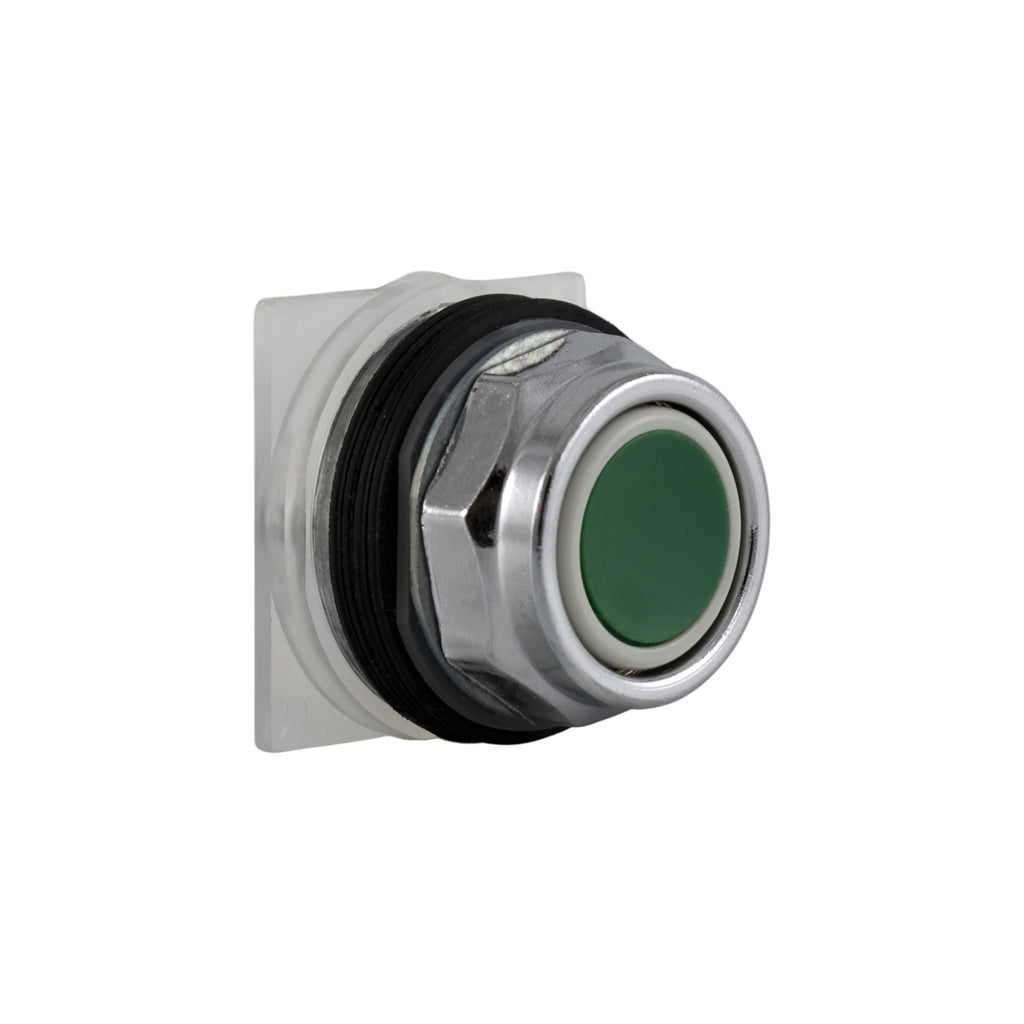

9001KR1G - Schneider Electric - Square D Push Button
This Harmony 9001K, modular flush green push button with full guard has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel. This flush push button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for push-button |
| Device short name |
9001K |
| Operator profile |
Green flush |
| Operator additional information |
Metal guard |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Bezel material |
Metal |
| Cap/operator or lens colour |
Green |
| Operator profile |
Flush |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Environment
| IP Degree of Protection |
IP65/IP66 |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901874607 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.800 in (7.112 cm) |
| Package 1 Width |
2.300 in (5.842 cm) |
| Package 1 Length |
2.100 in (5.334 cm) |
| Package weight(Lbs) |
3.680 oz (104.326 g) |
