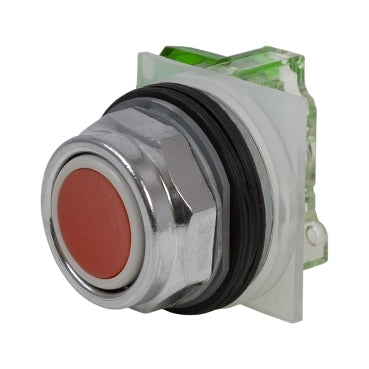

9001KR1RH5 - Square D - 30mm 1NO Flush Red Pushbutton
This Harmony 9001K, modular flush red push button with full guard has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NO contact and uses screw-clamp terminals. This flush push button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Push-button |
| Device short name | K |
| Type of operator | spring return |
| Operator profile | Red flush |
| Operator additional information | Metal guard |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Light source | without |
| Light source | Without |
| Light block supply | Without supply |
| Contacts type and composition | 1 NO |
| Connections - terminals | Screw clamp terminals |
| Operating position | Any position |
| [Ie] rated operational current | 10 A, AC-15 10 A, DC-13 |
| Contact operation | Standard |
| Device presentation | Complete product |
| Cap/operator or lens colour | Red |
| Operator profile | Flush |
| Type of operator | Spring return |
| Size | 30 mm |
| Product Certifications | NEMA CSA LR 25490 class 3211 03 CE UL listed file E42259 CCN NKCR |
|---|---|
| NEMA degree of protection | NEMA 3R/6/13 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901821069 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.200 in (5.588 cm) |
| Package 1 Width | 1.800 in (4.572 cm) |
| Package 1 Length | 3.700 in (9.398 cm) |
| Package weight(Lbs) | 4.480 oz (127.006 g) |
