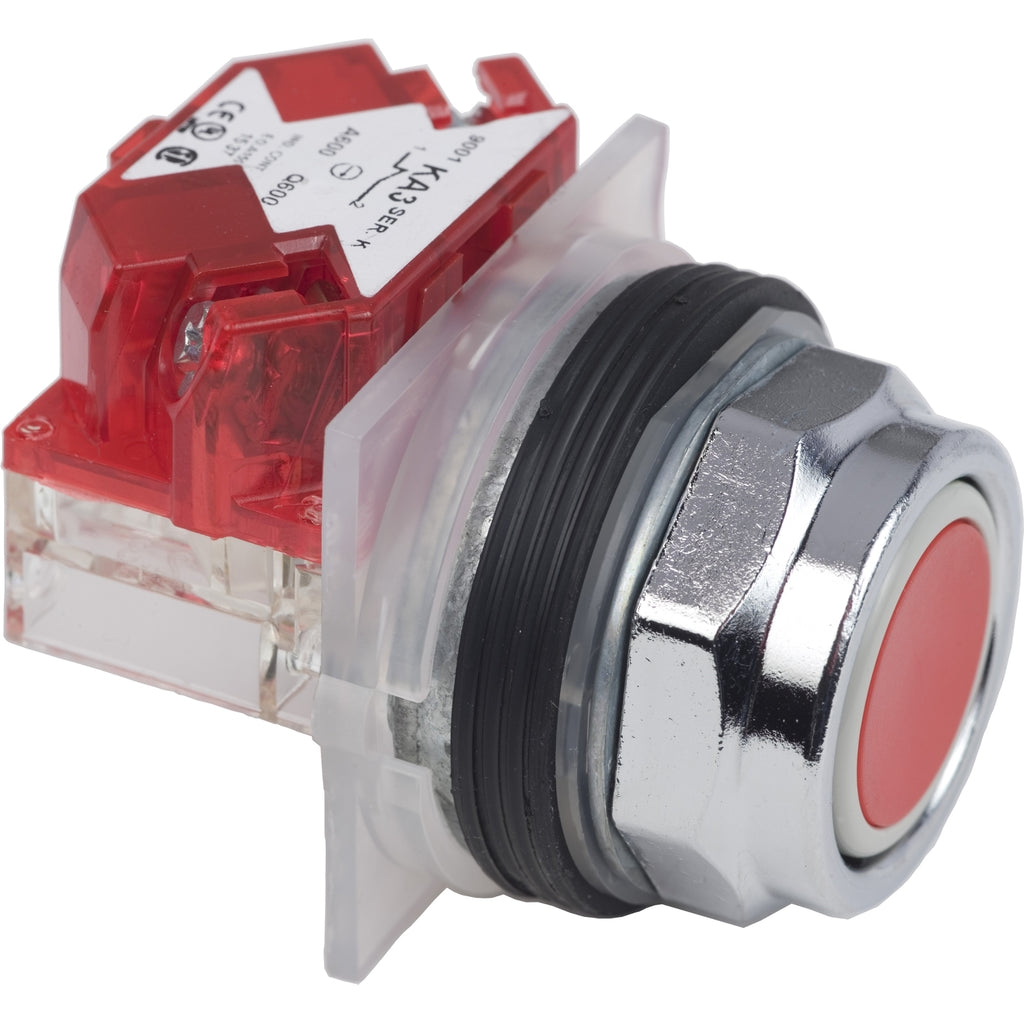

9001KR1RH6 - Schneider Electric - Square D Push Button
This Schneider Electric Harmony 9001K modular flush red push-button with full guard has 2 positions, operates with spring return mechanism. It has 1 x NC contact and fits in a 30mm hole. It is supplied with contact block and uses screw-clamp terminals. It has a chromium-plated metal bezel. This flush push-button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Metal bezel. Ideal for severe environments, especially applications requiring high impact and vibration resistance. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13).
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Push-button |
| Device short name | K |
| Type of operator | spring return |
| Operator profile | Red flush |
| Operator additional information | Metal guard |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Light source | without |
| Light source | Without |
| Light block supply | Without supply |
| Contacts type and composition | 1 NC |
| Connections - terminals | Screw clamp terminals |
| Operating position | Any position |
| [Ie] rated operational current | 10 A, AC-15 10 A, DC-13 |
| Contact operation | Standard |
| Device presentation | Complete product |
| Cap/operator or lens colour | Red |
| Operator profile | Flush |
| Type of operator | Spring return |
| Size | 30 mm |
| Product Certifications | NEMA CSA LR 25490 class 3211 03 UL listed file E42259 CCN NKCR CE |
|---|---|
| NEMA degree of protection | NEMA 3R/6/13 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 3389118040687 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.600 in (4.064 cm) |
| Package 1 Width | 2.200 in (5.588 cm) |
| Package 1 Length | 3.700 in (9.398 cm) |
| Package weight(Lbs) | 4.638 oz (131.500 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 13.913 lb(US) (6.311 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 31.496 in (80.000 cm) |
| Package 3 Length | 23.622 in (60.000 cm) |
| Package 3 Weight | 240.218 lb(US) (108.961 kg) |
