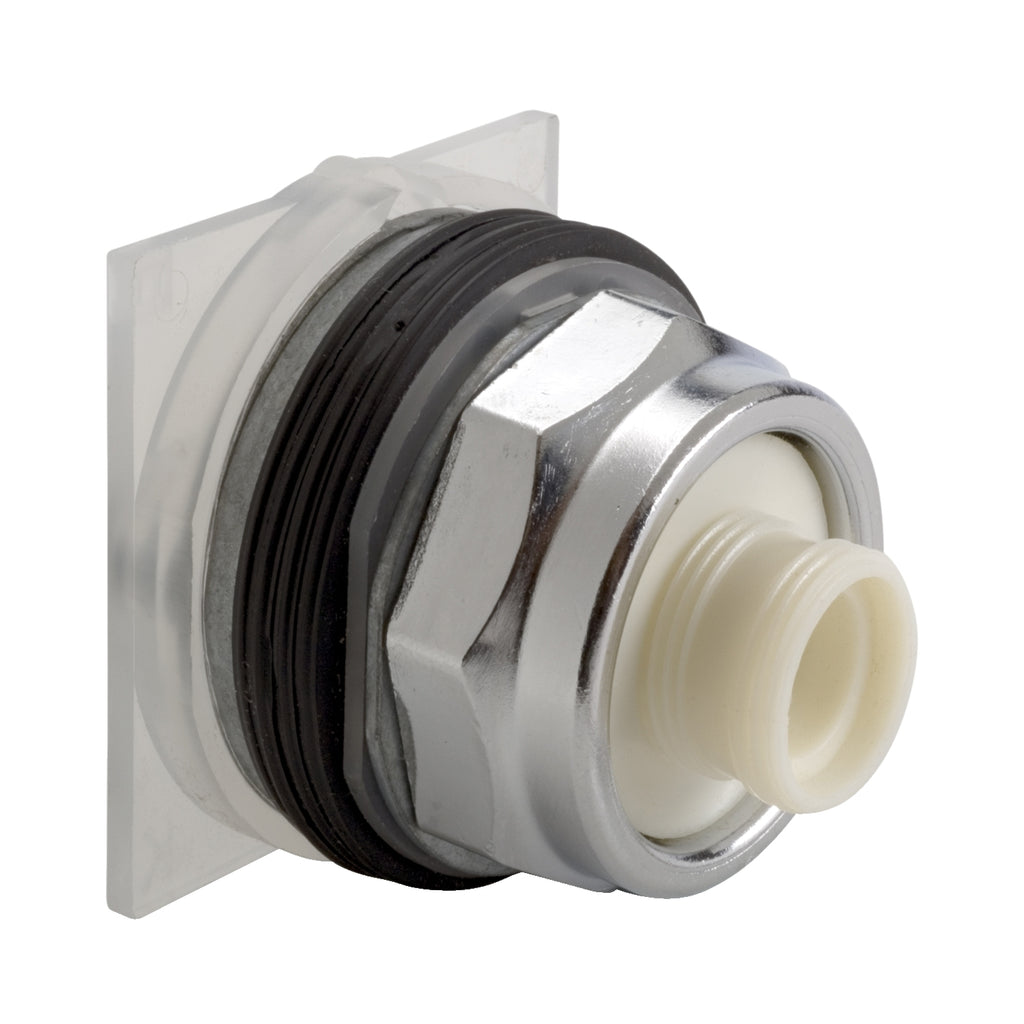

9001KR20 - Schneider Electric - 30mm Square D Push Button with LED Light
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This non-illuminated mushroom operator has a die cast ring nut. 1 3/8 in screw-on (9001K92*) and 2.25 inch screw-on (9001K93*) mushrom buttons will work with this non-illuminated operator. Contact blocks with the desired contact arrangements must be added to this operator. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for push-button |
| Device short name |
9001K |
| Operator profile |
Without cap flush |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Bezel material |
Metal |
| Cap/operator or lens colour |
Without mushroom |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901173960 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.01 in (5.1 cm) |
| Package 1 Width |
2.32 in (5.9 cm) |
| Package 1 Length |
2.83 in (7.2 cm) |
| Package 1 Weight |
3.7 oz (104 g) |
| Unit Type of Package 2 |
S02 |
| Number of Units in Package 2 |
28 |
| Package 2 Height |
5.91 in (15 cm) |
| Package 2 Width |
11.81 in (30 cm) |
| Package 2 Length |
15.75 in (40 cm) |
| Package 2 Weight |
30.4 oz (862 g) |
PRODUCT DATASHEET
9001KR20_Product Datasheet
