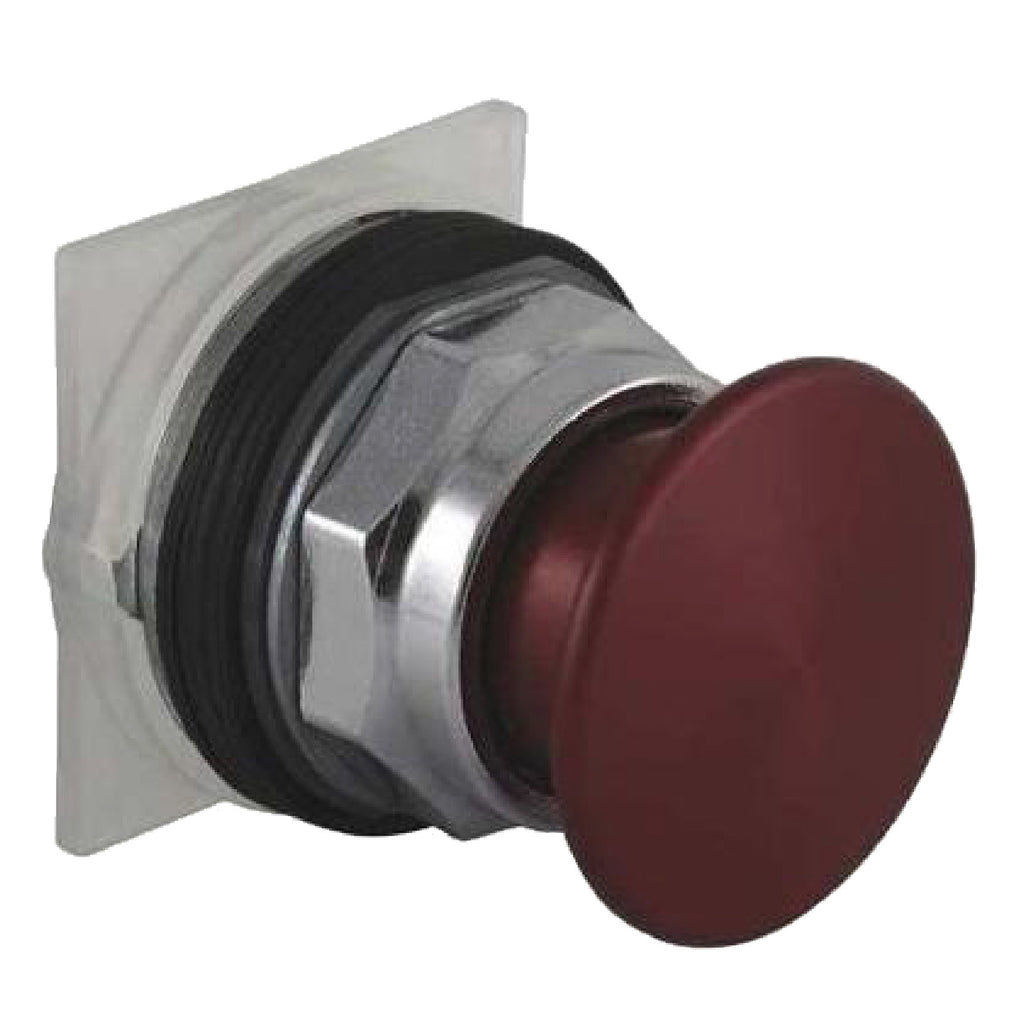

9001KR24RM - Schneider Electric - 30mm Square D Push Button with LED Light
This 40mm mushroom shaped push-button headis ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Head for push-button |
| Product Compatibility | Contact block 9001KA.. |
| Device short name | 9001K |
| Type of operator | spring return |
| Operator profile | Red mushroom Ø 40 mm, unmarked |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| CAD overall width | 1.8 in (45.5 mm) |
| CAD overall height | 1.8 in (45 mm) |
| CAD overall depth | 2.8 in (70 mm) |
| Net Weight | 0.311 lb(US) (0.141 kg) |
| Operating position | Any position |
| Shape of signaling unit head | Round |
| Head material | Metal |
| Operator additional information | Screw-on metal with set screw |
| Contacts type and composition | Without contact block |
| Mechanical durability | 5000000 cycles |
| Device presentation | Basic element |
| Cap/operator or lens colour | Red |
| Operator profile | Mushroom Ø 40 mm |
| Type of operator | Spring return |
| Size | 30 mm |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP66 IEC 60529 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 |
| Standards | IEC 60947-5-1 IEC 60947-1 IEC 60947-5-4 JIS C 4520 JIS C 852 UL 508 CSA C22.2 No 14 |
| Product Certifications | UL 508 NEMA |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901688099 |
| Returnability | No |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.62 in (19.355 cm) |
| Package 1 Width | 3.00 in (7.62 cm) |
| Package 1 Length | 19.35 in (49.161 cm) |
| Package 1 Weight | 4.800 oz (136.078 g) |
