9001KR25G - Schneider Electric - 30mm Square D Push Button with LED Light

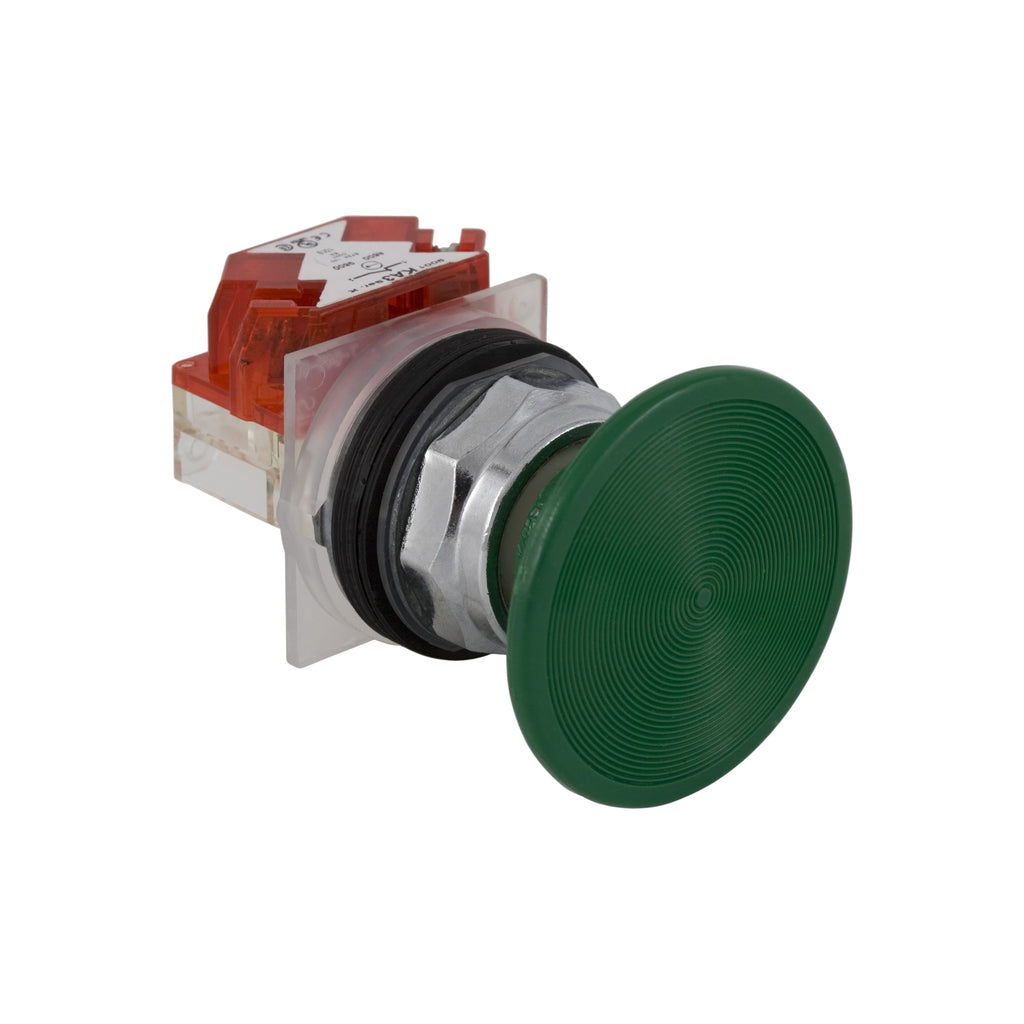

This Harmony 9001K, modular green push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape with 57mm mushroom head. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for push-button |
| Device short name |
9001K |
| Operator profile |
Green flush |
| Operator additional information |
Screw-on plastic with set screw |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Bezel material |
Metal |
| Cap/operator or lens colour |
Green |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
| Operator profile |
Mushroom Ø 57 mm |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901820598 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.90 in (7.366 cm) |
| Package 1 Width |
2.30 in (5.842 cm) |
| Package 1 Length |
2.00 in (5.08 cm) |
| Package 1 Weight |
4.800 oz (136.078 g) |
PRODUCT DATASHEET
9001KR25G_Product Datasheet
