9001KR3R - Schneider Electric - 30mm Square D Push Button with LED Light

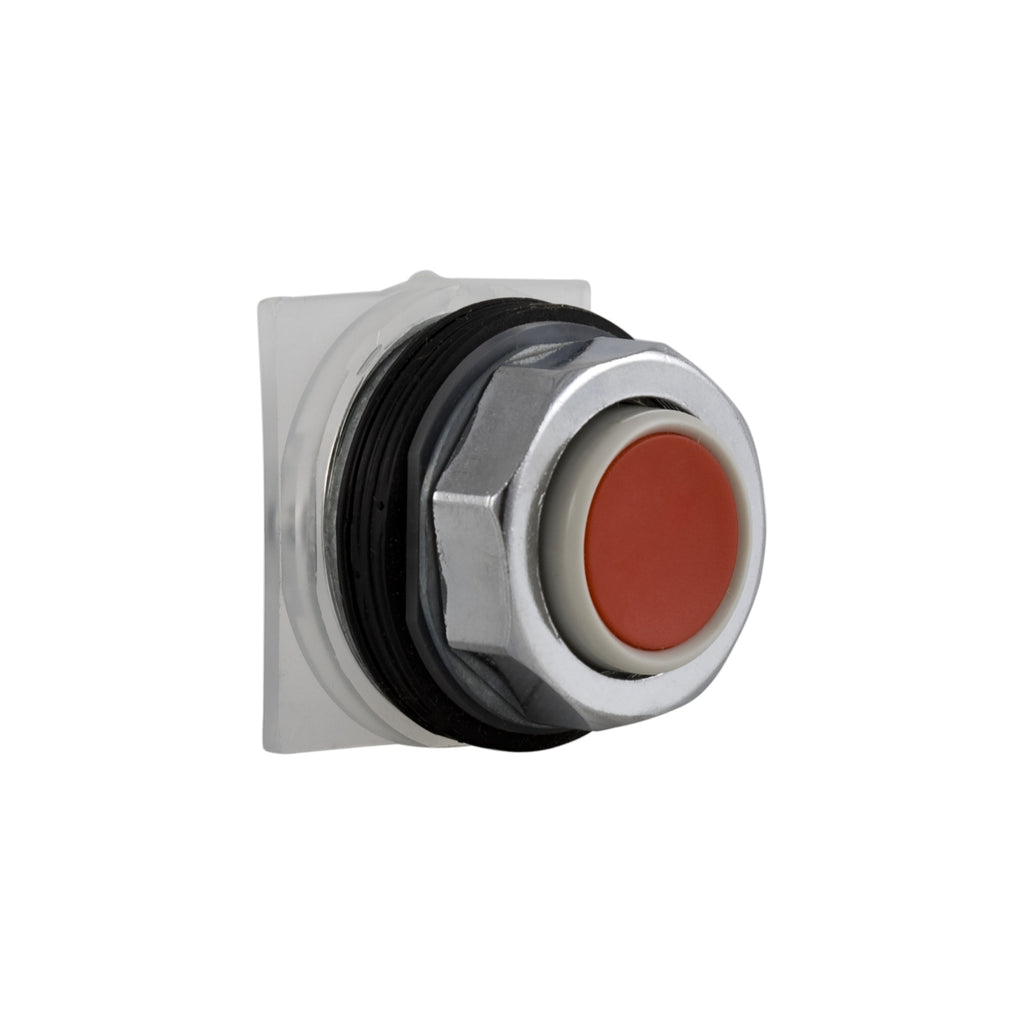

This Harmony 9001K, modular projecting red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel. This projecting push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for push-button |
| Device short name |
9001K |
| Operator profile |
Red flush |
| Operator additional information |
Without guard |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Bezel material |
Metal |
| Cap/operator or lens colour |
Red |
| Operator profile |
Projecting |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901874904 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.80 in (7.112 cm) |
| Package 1 Width |
2.30 in (5.842 cm) |
| Package 1 Length |
2.10 in (5.334 cm) |
| Package 1 Weight |
3.52 oz (99.79 g) |
