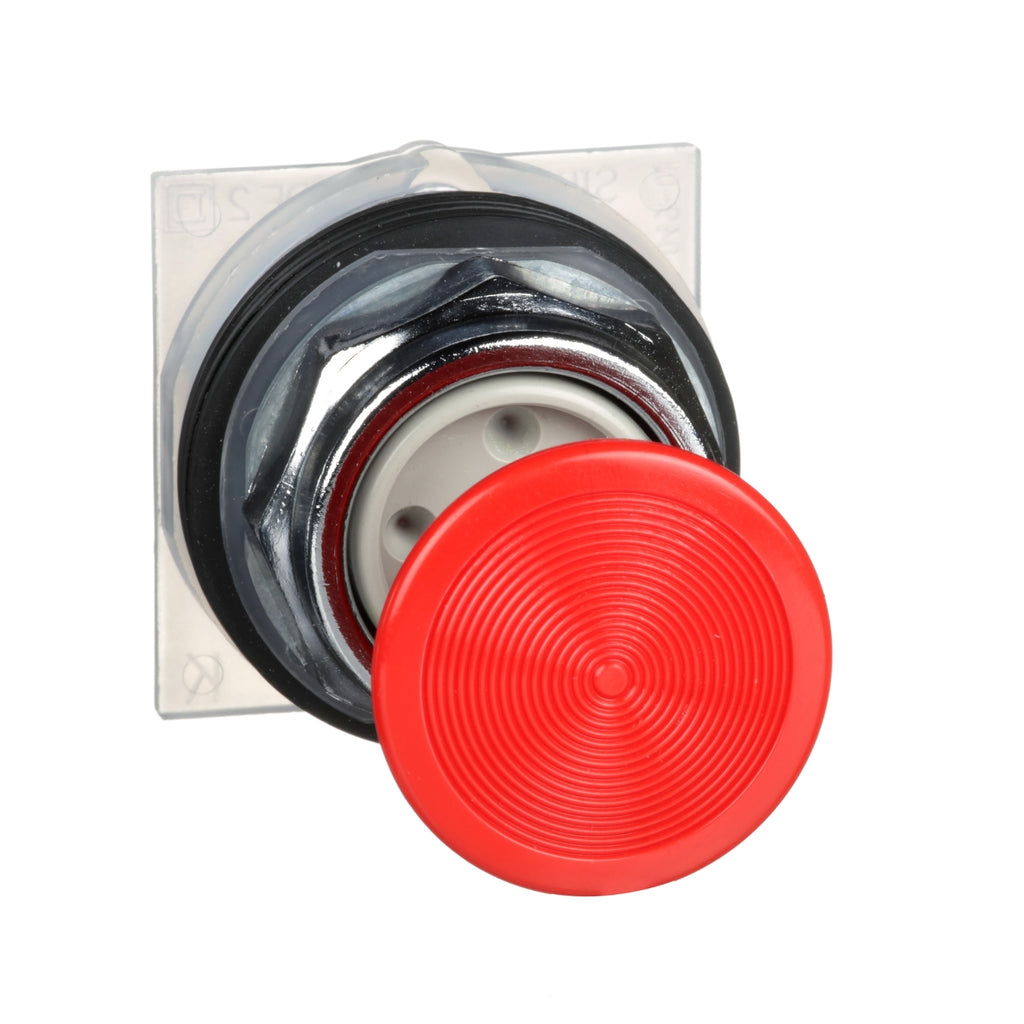

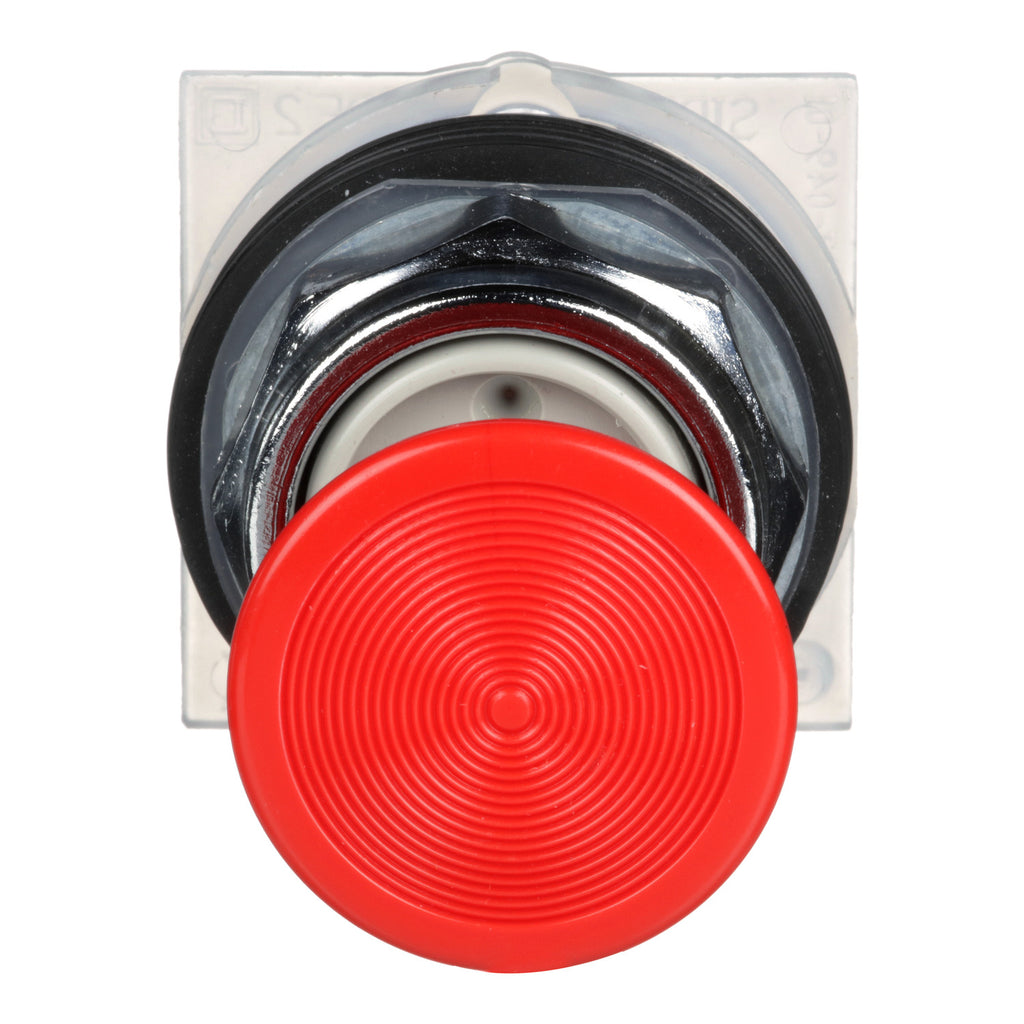

9001KR4R - Schneider Electric - Square D Motor Control Part And Accessory
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for push-button |
| Device short name |
9001K |
| Operator profile |
Red flush |
| Operator additional information |
Snap-in plastic |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Bezel material |
Metal |
| Cap/operator or lens colour |
Red |
| Operator profile |
Mushroom Ø 35 mm |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901887126 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.90 in (7.366 cm) |
| Package 1 Width |
2.30 in (5.842 cm) |
| Package 1 Length |
2.10 in (5.334 cm) |
| Package 1 Weight |
3.840 oz (108.862 g) |
PRODUCT DATASHEET
9001KR4R_Product Datasheet
