9001KR9 - Schneider Electric - Square D Automation Switch

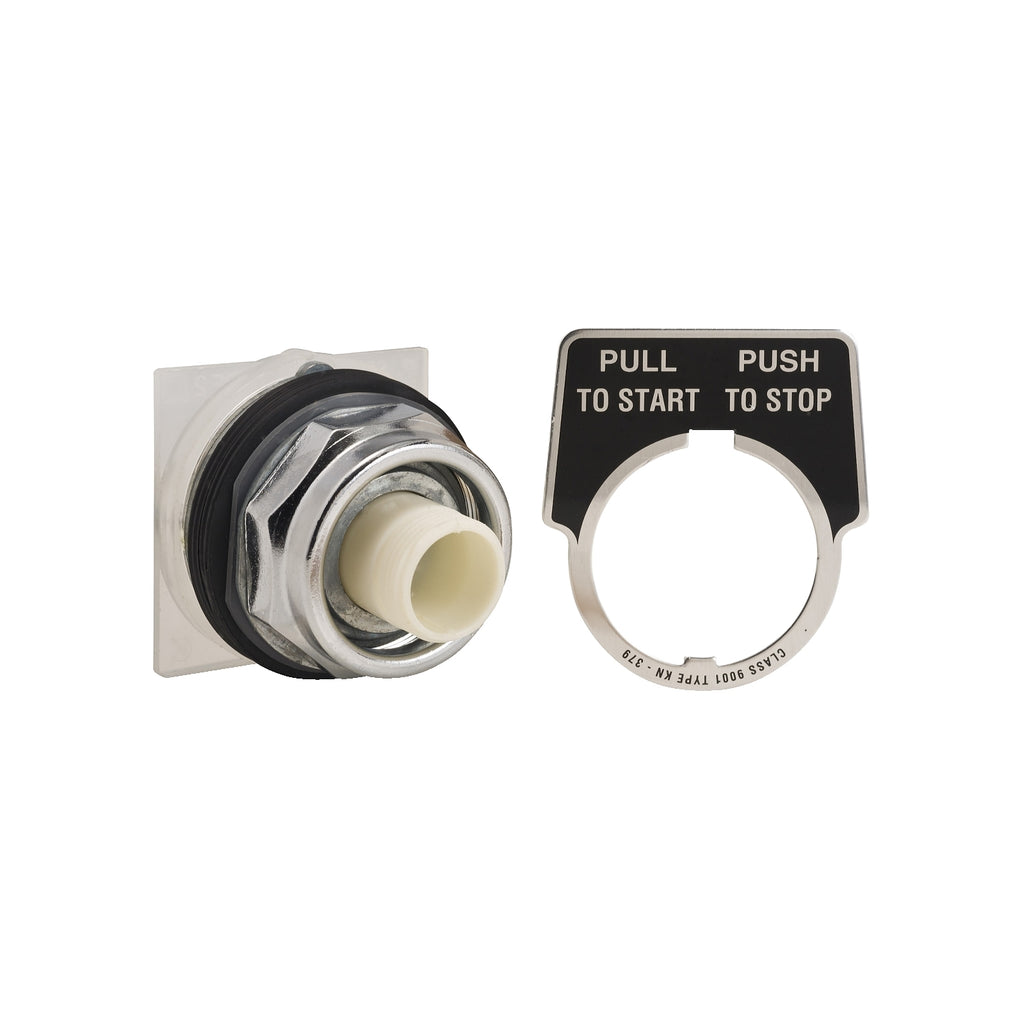

This head for push-button is a separate component of the range of control and signaling units, Harmony 9001K diameter 30mm. It has a chromium-plated metal bezel. It is supplied without knob. It features push pull operation. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for push-button |
| Device short name |
9001K |
| Operator profile |
Without cap flush |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Bezel material |
Metal |
| Cap/operator or lens colour |
Without mushroom |
| Type of operator |
Push-pull |
| Operator position information |
2 positions |
| Contacts type and composition |
Without contact block |
Environment
| IP Degree of Protection |
IP65/IP66 |
| NEMA Degree of Protection |
NEMA 3R/4/13 |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
3389118040175 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.850 in (4.700 cm) |
| Package 1 Width |
2.165 in (5.500 cm) |
| Package 1 Length |
3.661 in (9.300 cm) |
| Package weight(Lbs) |
3.891 oz (110.300 g) |
| Unit Type of Package 2 |
S01 |
| Number of Units in Package 2 |
16 |
| Package 2 Height |
5.906 in (15.000 cm) |
| Package 2 Width |
5.906 in (15.000 cm) |
| Package 2 Length |
15.748 in (40.000 cm) |
| Package 2 Weight |
4.202 lb(US) (1.906 kg) |
| Unit Type of Package 3 |
P12 |
| Number of Units in Package 3 |
512 |
| Package 3 Height |
17.717 in (45.000 cm) |
| Package 3 Width |
31.496 in (80.000 cm) |
| Package 3 Length |
47.244 in (120.000 cm) |
| Package 3 Weight |
160.942 lb(US) (73.002 kg) |
