9001KR9P1R - Schneider Electric - Square D Push Button

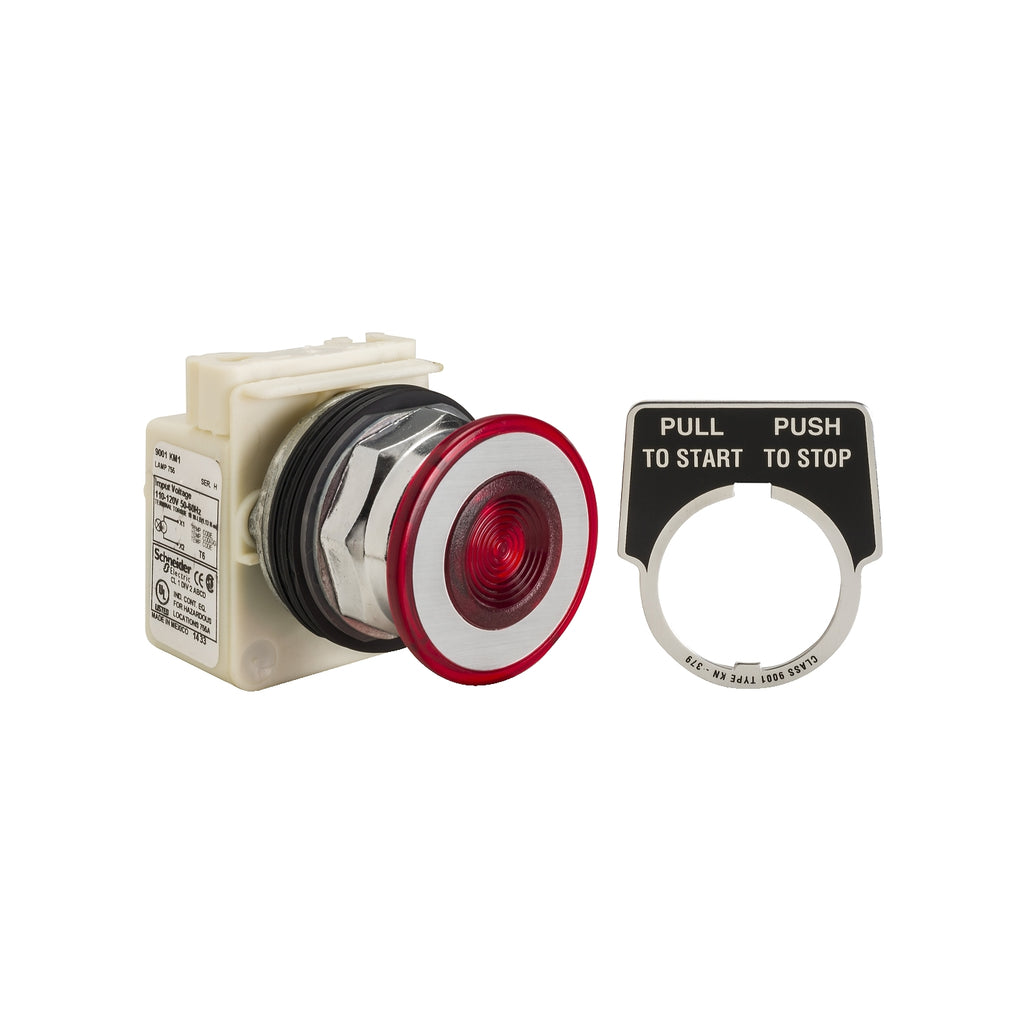

This Harmony 9001K, modular illuminated red push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel and is supplied with 110V AC integral LED, it has 40mm mushroom head. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for illuminated push-button |
| Device short name |
9001K |
| Operator profile |
Red flush |
| Operator additional information |
Screw-on plastic |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Bezel material |
Metal |
| Cap/operator or lens colour |
Red |
| [Us] Rated supply voltage |
110...120 V |
| Light block supply |
Via integral transformer |
| Operator profile |
Mushroom Ø 41 mm |
| Type of operator |
Push-pull |
| Operator position information |
2 positions |
| Contacts type and composition |
Without contact block |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901384373 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.90 in (4.826 cm) |
| Package 1 Width |
2.30 in (5.842 cm) |
| Package 1 Length |
3.70 in (9.398 cm) |
| Package 1 Weight |
8.64 oz (244.94 g) |
