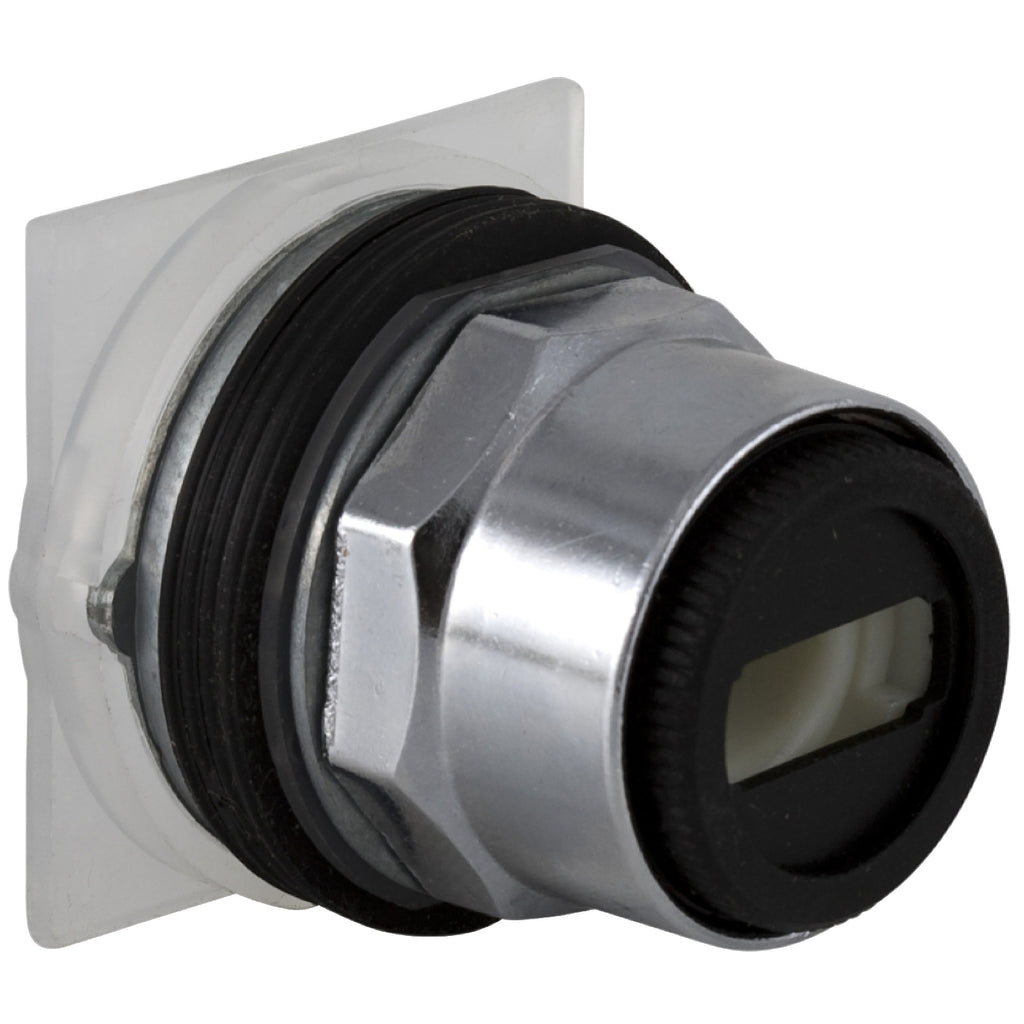

9001KS11 - Schneider Electric - 30mm Square D Selector Switch
This selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied without knob. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions operator and is supplied without contacts. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for selector switch |
| Device short name |
K |
| Type of operator |
maintained |
| Operator profile |
Without cap without knob |
Complementary
| Bezel material |
Metal |
| Mounting diameter |
1.2 in (30 mm) |
| Operator position information |
2 positions |
| Contacts type and composition |
Without contact block |
| Mechanical durability |
0.5 Mcycles |
| Device presentation |
Basic element |
| Operator profile |
Without handle |
| Type of operator |
Stay put |
| Size |
30 mm |
| Cam profile |
5 |
Environment
| NEMA degree of protection |
NEMA 3R/6/13 |
| Product Certifications |
CSA LR24590 class 3211 03
CE
UL listed file E42259 CCN NKCR |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901322825 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.800 in (7.112 cm) |
| Package 1 Width |
2.300 in (5.842 cm) |
| Package 1 Length |
2.100 in (5.334 cm) |
| Package weight(Lbs) |
4.32 oz (122.47 g) |
