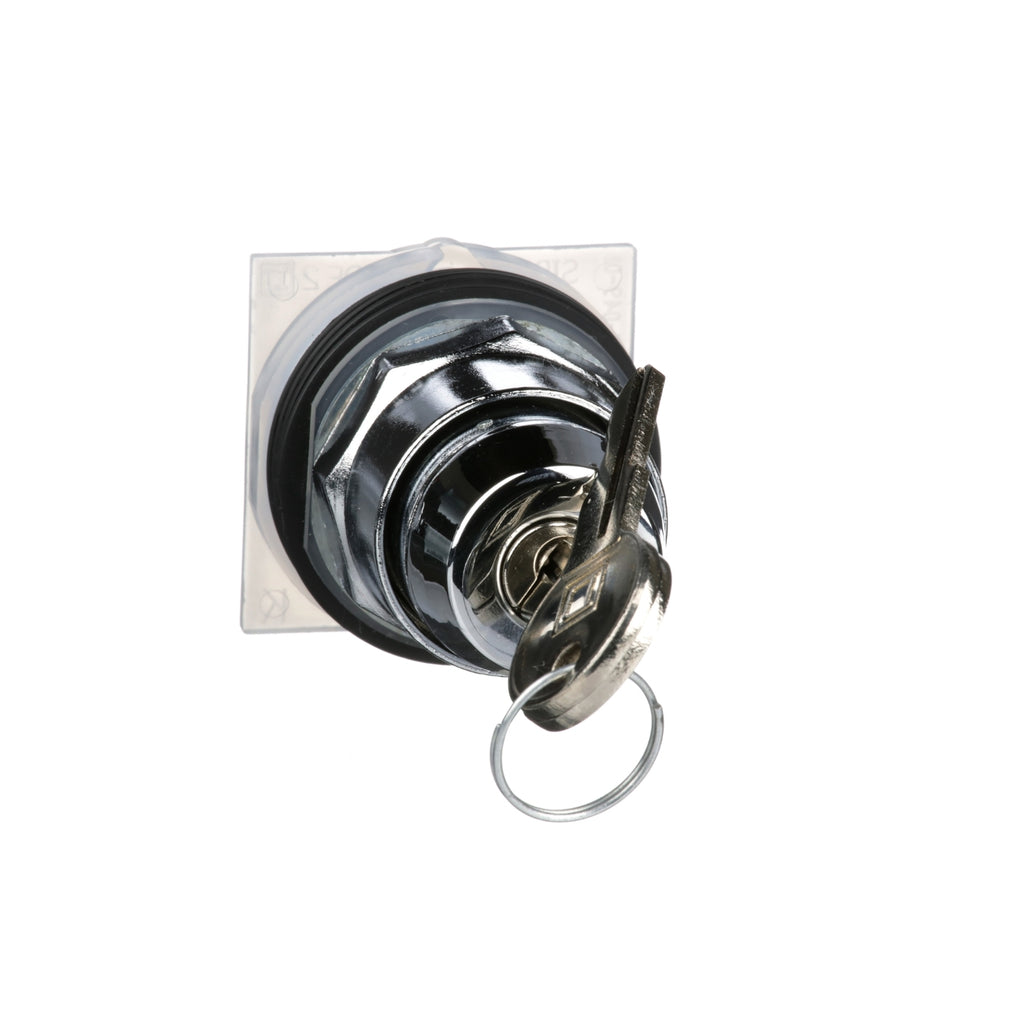

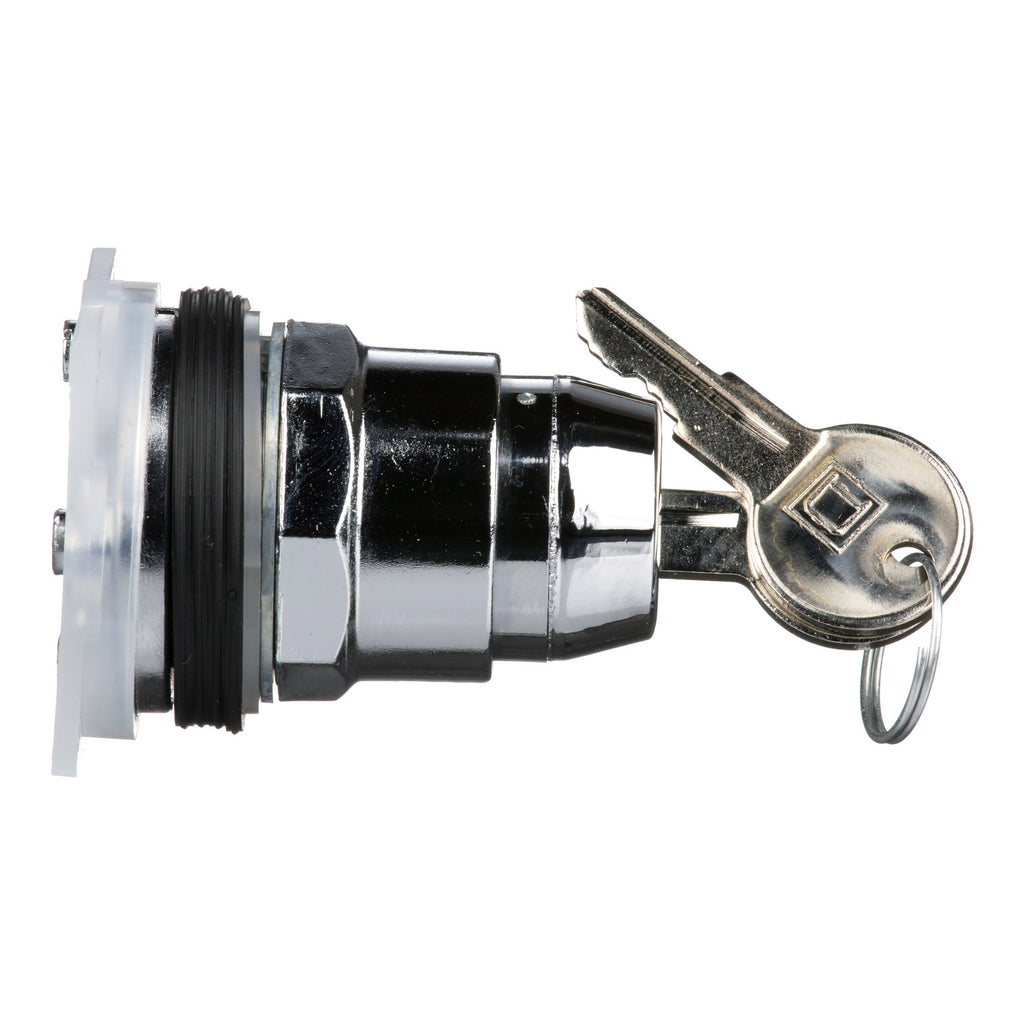

9001KS11K3 - Schneider Electric - Square D Motor Control Parts
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features 2 positions maintained operator and is supplied without contacts. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Head for key selector switch |
| Device short name | 9001K |
| Type of operator | stay put |
| Operator profile | key switch |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Net Weight | 0.456 lb(US) (0.207 kg) |
| Shape of signaling unit head | Octagonal |
| Operator position information | 2 positions |
| Type of Keylock | E10 |
| Key number | E10 |
| Key withdrawal position | Left and right |
| Contacts type and composition | Without contact block |
| Mechanical durability | 0.5 Mcycles |
| Product compatibility | 9001KA1 side 1 or 2 |
| Device presentation | Basic element |
| Operator profile | Key switch |
| Type of operator | Stay put |
| Size | 30 mm |
| Cam profile | 5 |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP Degree of Protection | IP65/IP66 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 |
| Standards | JIS C 4520 IEC 60947-5-1 JIS C 852 IEC 60947-5-4 UL 508 IEC 60947-1 CSA C22.2 No 14 |
| Product Certifications | UL 508 NEMA |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901913634 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.900 in (4.826 cm) |
| Package 1 Width | 2.300 in (5.842 cm) |
| Package 1 Length | 3.700 in (9.398 cm) |
| Package weight(Lbs) | 6.720 oz (190.509 g) |
