9001KS5 - Schneider Electric - 30mm Square D Selector Switch

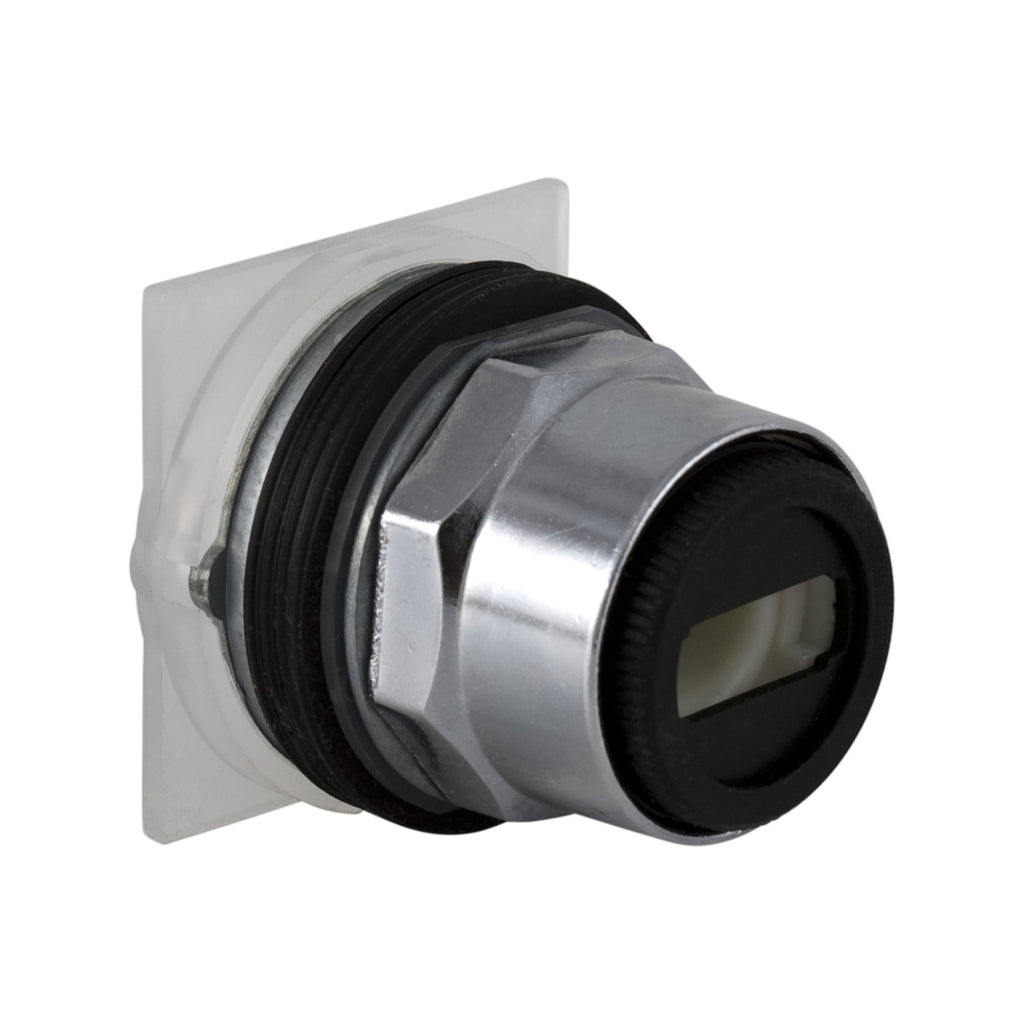

The Schneider Electric 9001KS5 is a selector switch head from the Harmony 9001K series, designed for industrial control applications. This 30mm metal operator features a 3-position spring return mechanism, returning to the center position from both sides, and is supplied without a handle, allowing for customization based on application needs.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Head for selector switch |
| Device short name |
K |
| Enclosure type |
Dust and oil resistant weatherproof enclosure indoor/outdoor |
| Mounting diameter |
1.2 in (30 mm) |
| Range of Product |
Harmony 9001K |
Complementary
| Bezel material |
Metal |
| Cap/operator or lens colour |
without cap |
| Contacts type and composition |
Without contact block |
| Operator position information |
3 positions |
| Operator profile |
Without handle |
| Operator profile |
1 projecting push-button |
| Size |
30 mm |
| Type of operator |
Spring return both sides to centre |
| Mechanical durability |
0.5 Mcycles |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Environment
| IP Degree of Protection |
IP65/IP66 |
| NEMA Degree of Protection |
NEMA 3R/6/13 |
| Product Certifications |
CSA LR24590 class 3211 03
UL listed file E42259 CCN NKCR
CE |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901322795 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.09 in (5.3 cm) |
| Package 1 Width |
2.3 in (5.8 cm) |
| Package 1 Length |
2.9 in (7.4 cm) |
| Package weight(Lbs) |
4.3 oz (122.5 g) |
PRODUCT DATASHEET
9001KS5
