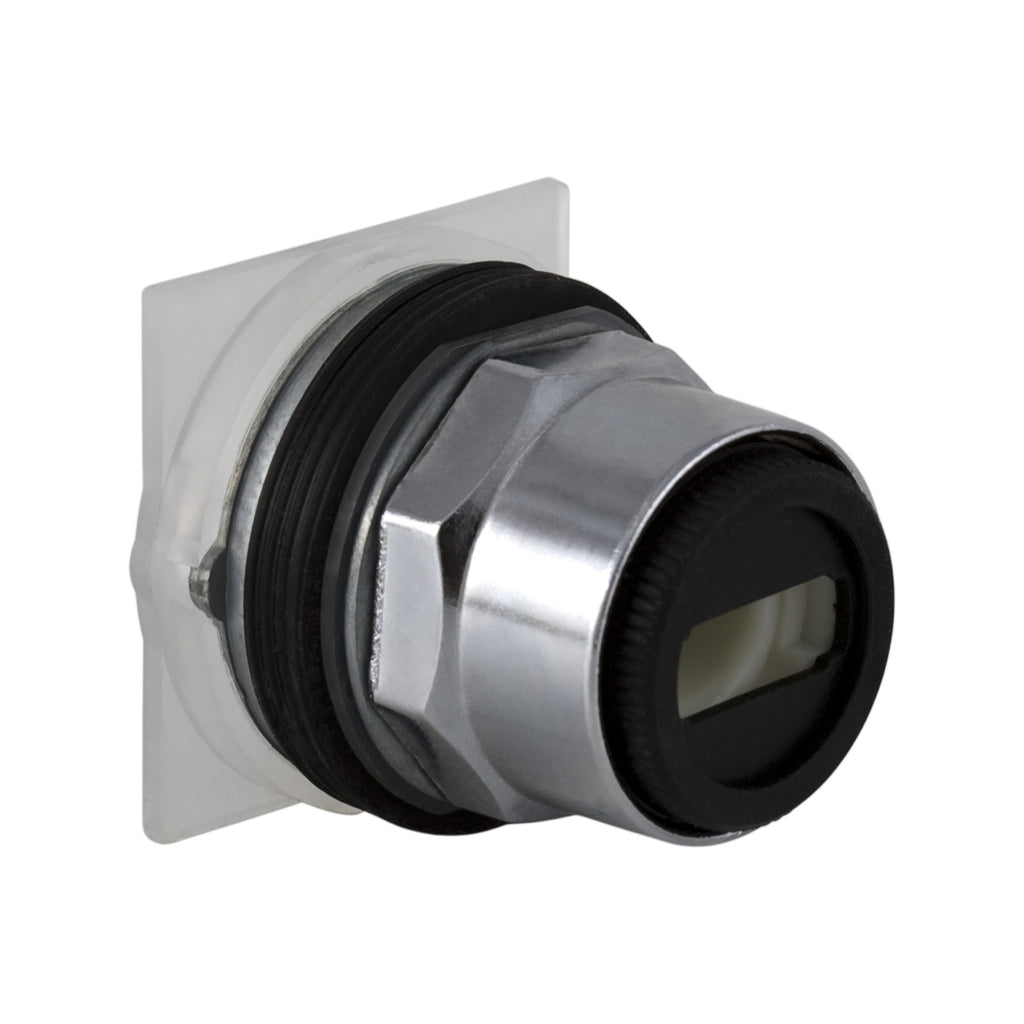

9001KS6 - Schneider Electric - 30mm Square D Selector Switch
The Schneider Electric 9001KS6 is a selector switch head from the Harmony 9001K series, designed for industrial control applications. This 30mm metal operator features a 3-position spring return mechanism, returning to the center position from the left side, and is supplied without a handle, allowing for customization based on application needs.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Head for selector switch |
| Device short name | 9001KS |
| Type of operator | Left to centre spring return |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Product Weight | 0.540 lb(US) (0.245 kg) |
| Shape of signaling unit head | Round |
| Operator position information | 3 positions |
| Contacts type and composition | Without contact block |
| Mechanical durability | 0.5 Mcycles |
| Device presentation | Basic element |
| Operator profile | Without handle |
| Type of operator | Spring return |
| Size | 30 mm |
| Return | Left to centre |
| Cam profile | 0 |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP Degree of Protection | IP65/IP66 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 |
| Standards | JIS C 4520 IEC 60947-1 JIS C 852 IEC 60947-5-4 IEC 60947-5-1 UL 508 CSA C22.2 No 14 |
| Product Certifications | NEMA UL 508 |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901322801 |
| Returnability | No |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 7.620 in (19.355 cm) |
| Package 1 Width | 3.00 in (7.62 cm) |
| Package 1 Length | 19.355 in (49.161 cm) |
| Package weight(Lbs) | 8.000 oz (226.796 g) |
