9001KS63B - Schneider Electric - 30mm Square D Selector Switch

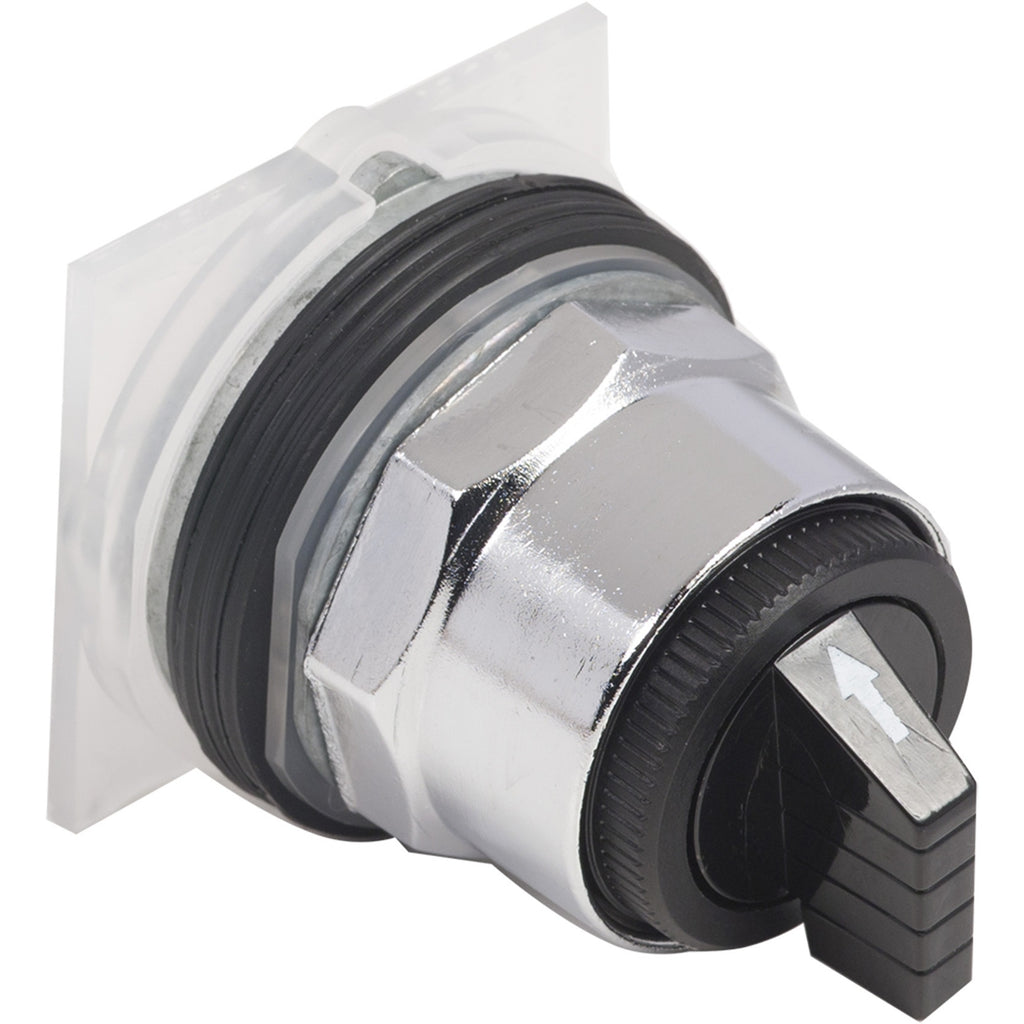

This Harmony 9001K, black selector switch with C cam has 3 positions, operates with spring return from left to center position mechanism. It has a chromium-plated metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for selector switch |
| Device short name |
K |
| Type of operator |
spring return |
| Operator profile |
Black standard knob |
Complementary
| Bezel material |
Metal |
| Mounting diameter |
1.2 in (30 mm) |
| Operator position information |
3 positions |
| Contacts type and composition |
Without contact block |
| Mechanical durability |
0.5 Mcycles |
| Device presentation |
Basic element |
| Cap/operator or lens colour |
Black |
| Operator profile |
Standard handle |
| Type of operator |
Spring return |
| Size |
30 mm |
| Return |
Left to centre |
| Cam profile |
3 |
Environment
| NEMA degree of protection |
NEMA 3R/6/13 |
| Product Certifications |
CSA LR24590 class 3211 03
UL listed file E42259 CCN NKCR
CE |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901322405 |
| Returnability |
No |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.0 in (5.0 cm) |
| Package 1 Width |
2.4 in (6.0 cm) |
| Package 1 Length |
2.8 in (7.0 cm) |
| Package weight(Lbs) |
4.2 oz (120.0 g) |
PRODUCT DATASHEET
9001KS63B_Product Datasheet
