9001KS7 - Schneider Electric - 30mm Square D Selector Switch

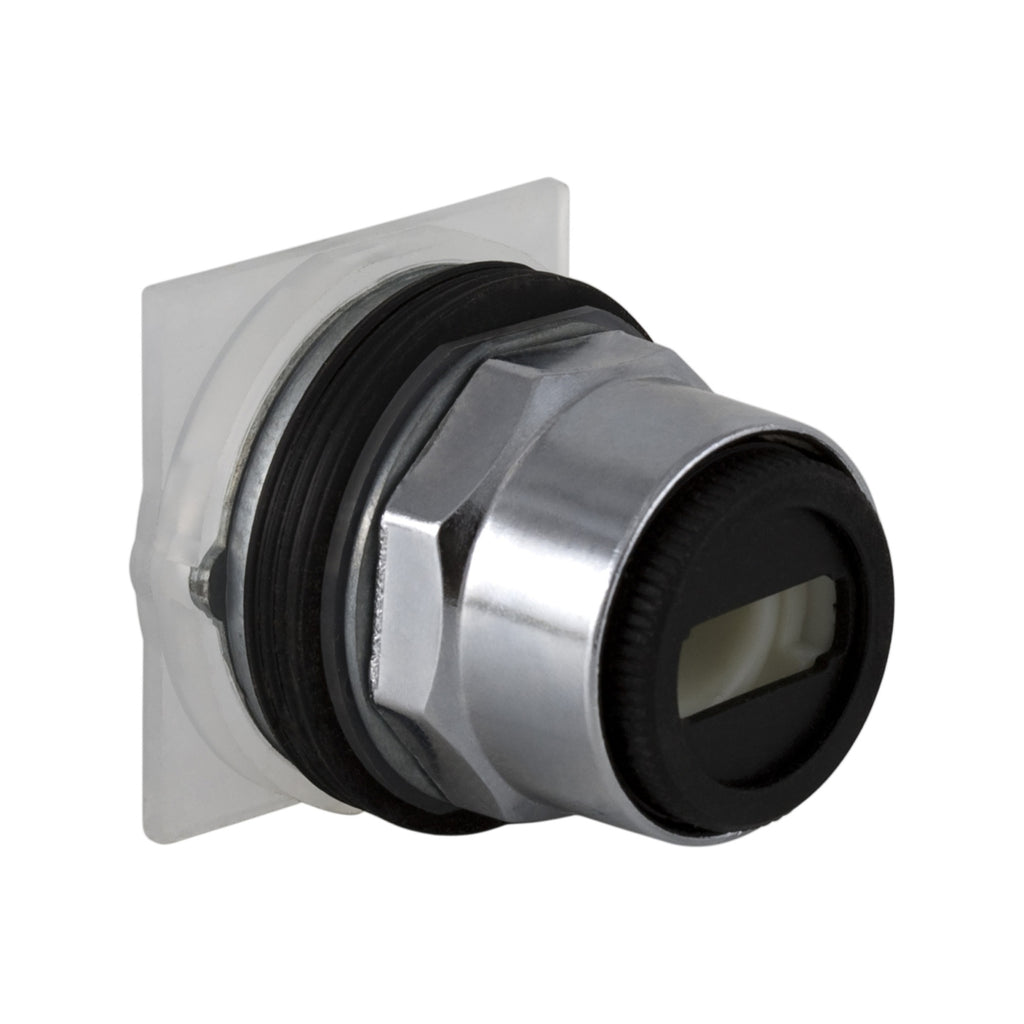

The Schneider Electric Harmony 9001KS7 is a 30mm metal selector switch head designed for industrial control applications. It features a spring-return mechanism that returns the switch to the center position when released, enhancing operational safety and control precision.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Head for selector switch |
| Device short name |
K |
| Enclosure type |
Dust and oil resistant weatherproof enclosure indoor/outdoor |
| Mounting diameter |
1.2 in (30 mm) |
| Range of Product |
Harmony 9001K |
Complementary
| Bezel material |
Metal |
| Cap/operator or lens colour |
without cap |
| Contacts type and composition |
Without contact block |
| Operator position information |
3 positions |
| Operator profile |
Without handle |
| Operator profile |
1 projecting push-button |
| Size |
30 mm |
| Type of operator |
Spring return right to centre |
| Mechanical durability |
0.5 Mcycles |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Environment
| IP Degree of Protection |
IP65/IP66 |
| NEMA Degree of Protection |
NEMA 3R/6/13 |
| Product Certifications |
CE
CSA LR24590 class 3211 03
UL listed file E42259 CCN NKCR |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901322818 |
| Returnability |
No |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
7.620 in (19.355 cm) |
| Package 1 Width |
3.00 in (7.62 cm) |
| Package 1 Length |
19.355 in (49.161 cm) |
| Package weight(Lbs) |
8.000 oz (226.796 g) |
