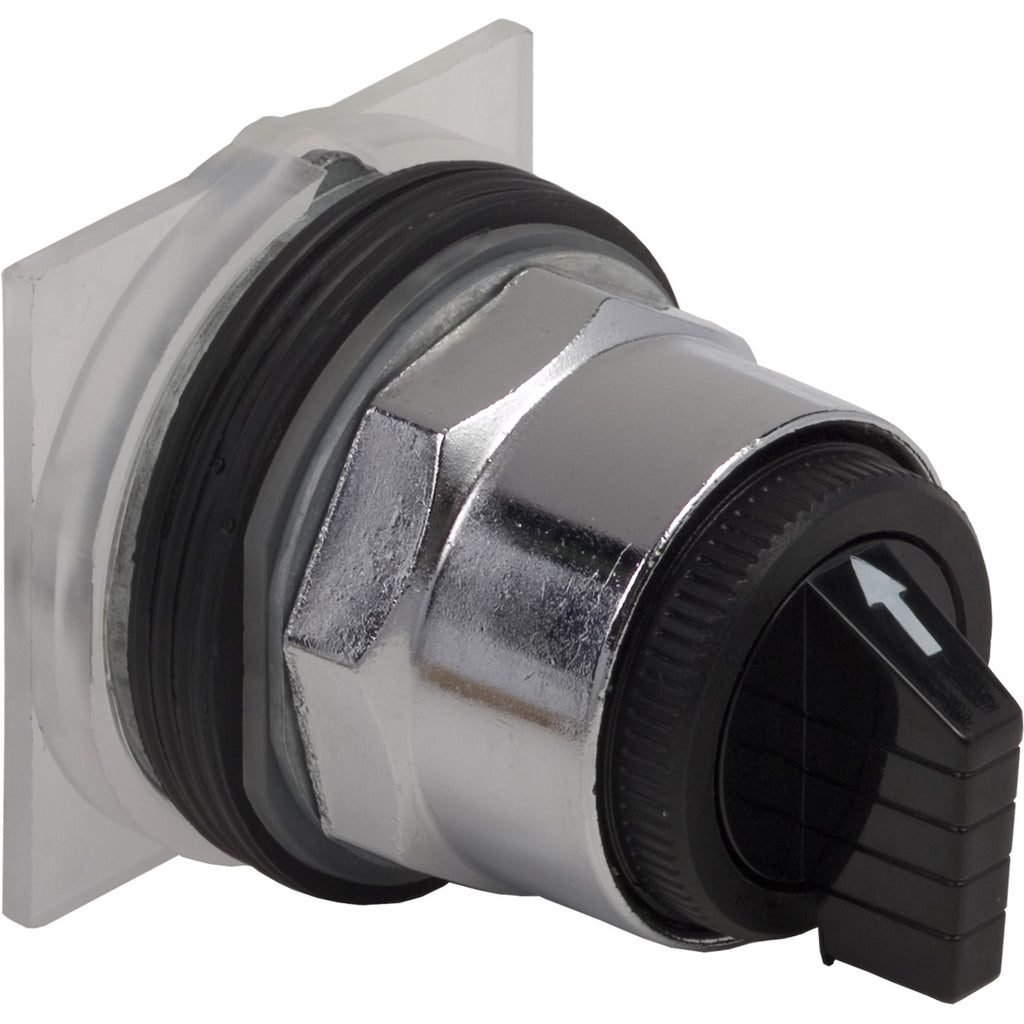

9001KS73B - Schneider Electric - 30mm Square D Selector Switch
This Harmony 9001K, black selector switch with C cam has 3 positions, operates with spring return from right to center position mechanism. It has a chromium-plated metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Head for selector switch |
| Device short name |
K |
| Enclosure type |
Dust and oil resistant weatherproof enclosure indoor/outdoor |
| Mounting diameter |
1.2 in (30 mm) |
| Range of Product |
Harmony 9001K |
Complementary
| Bezel material |
Metal |
| Cap/operator or lens colour |
black |
| Contacts type and composition |
Without contact block |
| Operator position information |
3 positions |
| Operator profile |
Standard handle |
| Operator profile |
1 projecting push-button |
| Size |
30 mm |
| Type of operator |
Spring return right to centre |
| Mechanical durability |
0.5 Mcycles |
| Cap/operator or lens colour |
Black |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Environment
| NEMA Degree of Protection |
NEMA 3R/6/13 |
| Product Certifications |
UL listed file E42259 CCN NKCR
CSA LR24590 class 3211 03
CE |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901820758 |
| Returnability |
No |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.00 in (5.08 cm) |
| Package 1 Width |
2.300 in (5.842 cm) |
| Package 1 Length |
2.800 in (7.112 cm) |
| Package weight(Lbs) |
4.32 oz (122.47 g) |
PRODUCT DATASHEET
9001KS73B_Product Datasheet
