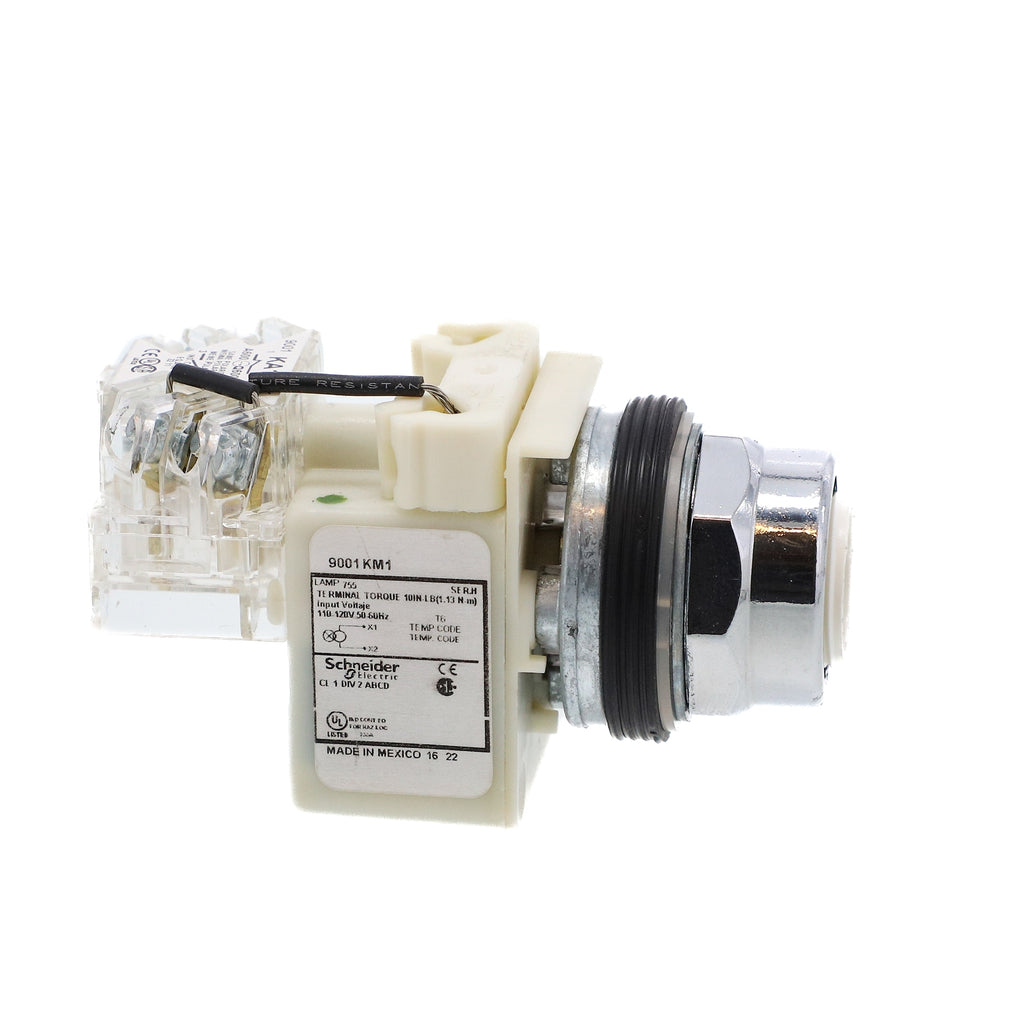

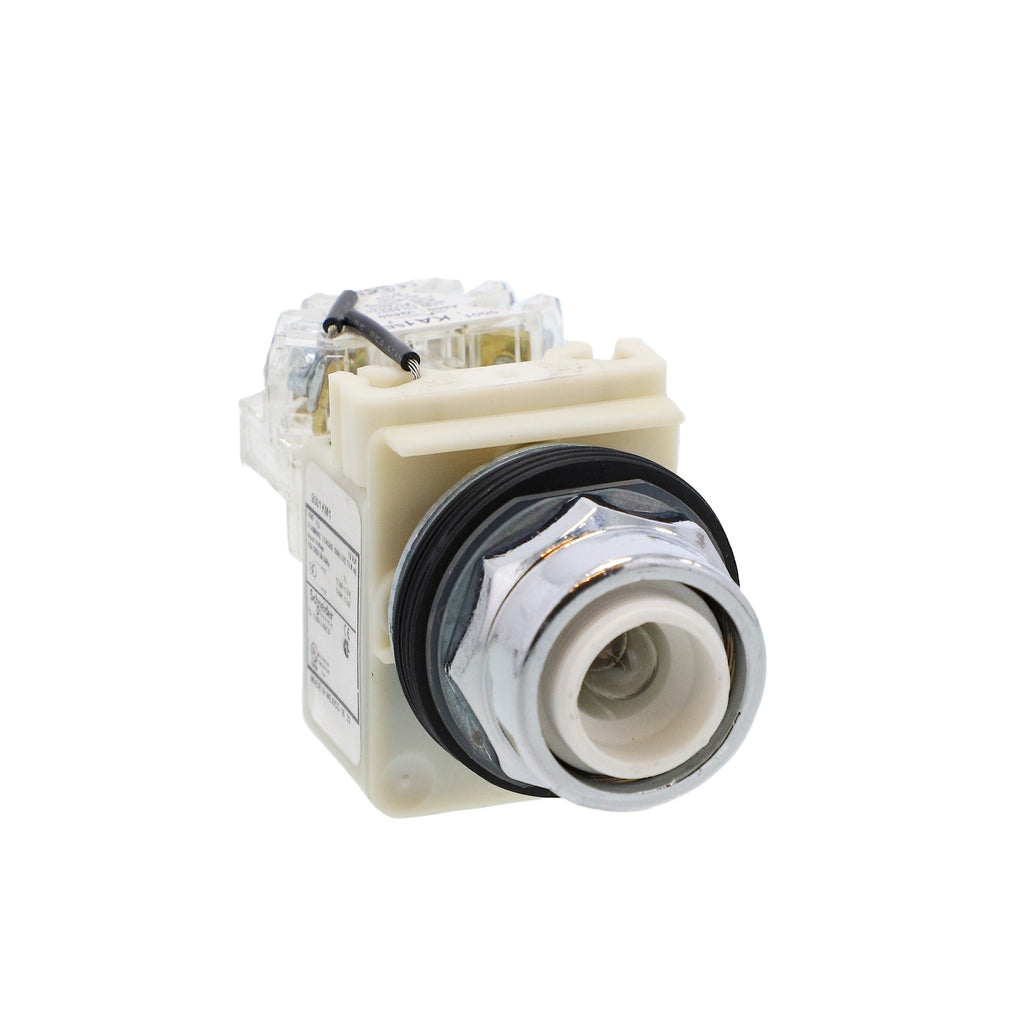

9001KT1 - Schneider Electric - 30mm Square D Push Button with LED Light
This pilot light is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel and is delivered with push to test operator. It is supplied via internal transformer with 110V to 120V AC and it is connected with simple screw-clamp connections. It is easily installed into a standard 30mm diameter panel cut-outs. It weighs 270g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Head for push-to-test pilot light |
| Device short name | K |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Cap/operator or lens colour | Without cap |
| Bulb base | BA 9s |
| Light block supply | Via transformer 110 V AC 50/60 Hz Via transformer 120 V AC 50/60 Hz |
| Shape of screw head | Round |
| Light source | Incandescent bulb |
| Operating Mode | Push-to-test |
| [Us] rated supply voltage | 110...120 V |
| Light block supply | Via integral transformer |
| Contacts type and composition | 1 C/O |
| Supply frequency | 50...60 Hz |
| Size | 30 mm |
| Product Certifications | CE CSA LR25490 class 3211 03 UL listed file E42259 CCN NKCR |
|---|---|
| NEMA degree of protection | NEMA 3R/6/13 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 3389118039339 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.000 in (5.080 cm) |
| Package 1 Width | 2.300 in (5.842 cm) |
| Package 1 Length | 4.500 in (11.430 cm) |
| Package weight(Lbs) | 9.120 oz (258.547 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 5.800 in (14.732 cm) |
| Package 2 Width | 5.800 in (14.732 cm) |
| Package 2 Length | 15.700 in (39.878 cm) |
| Package 2 Weight | 8.281 lb(US) (3.756 kg) |
