Description

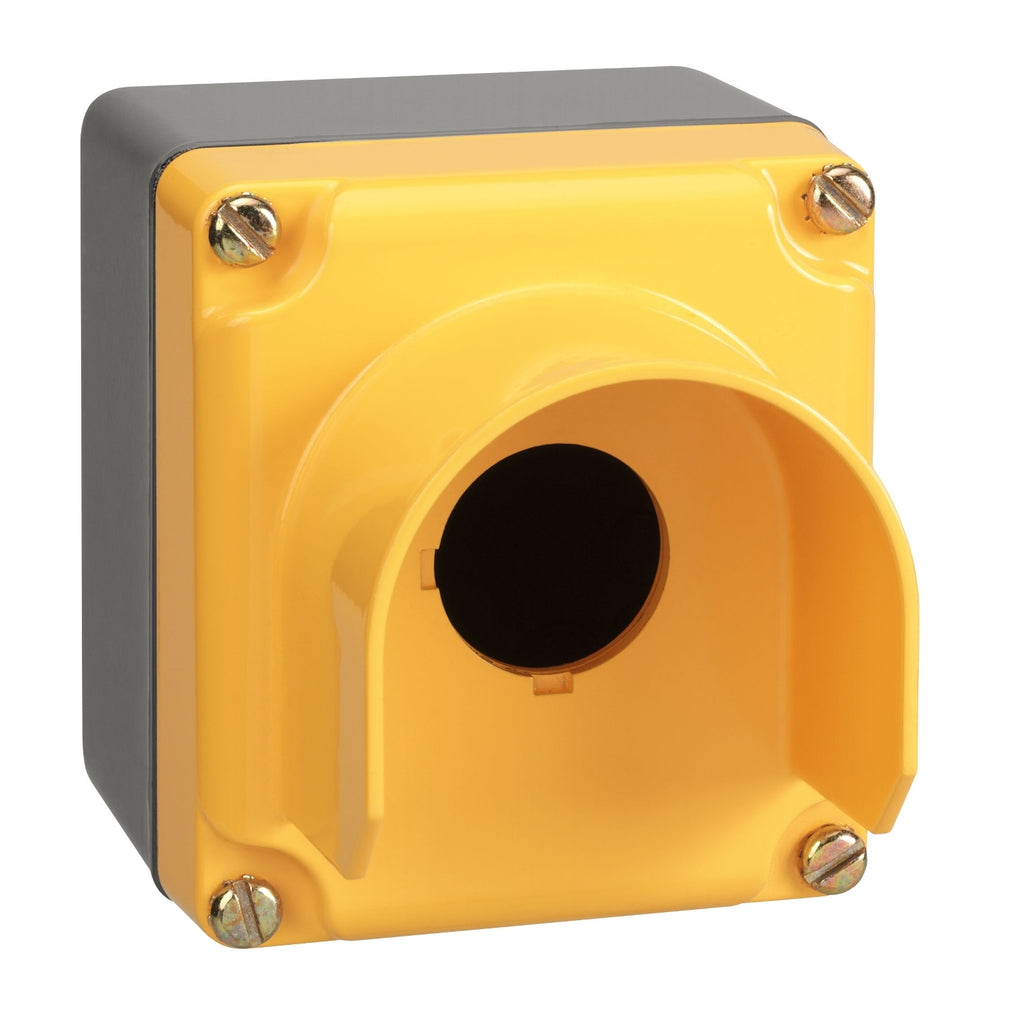

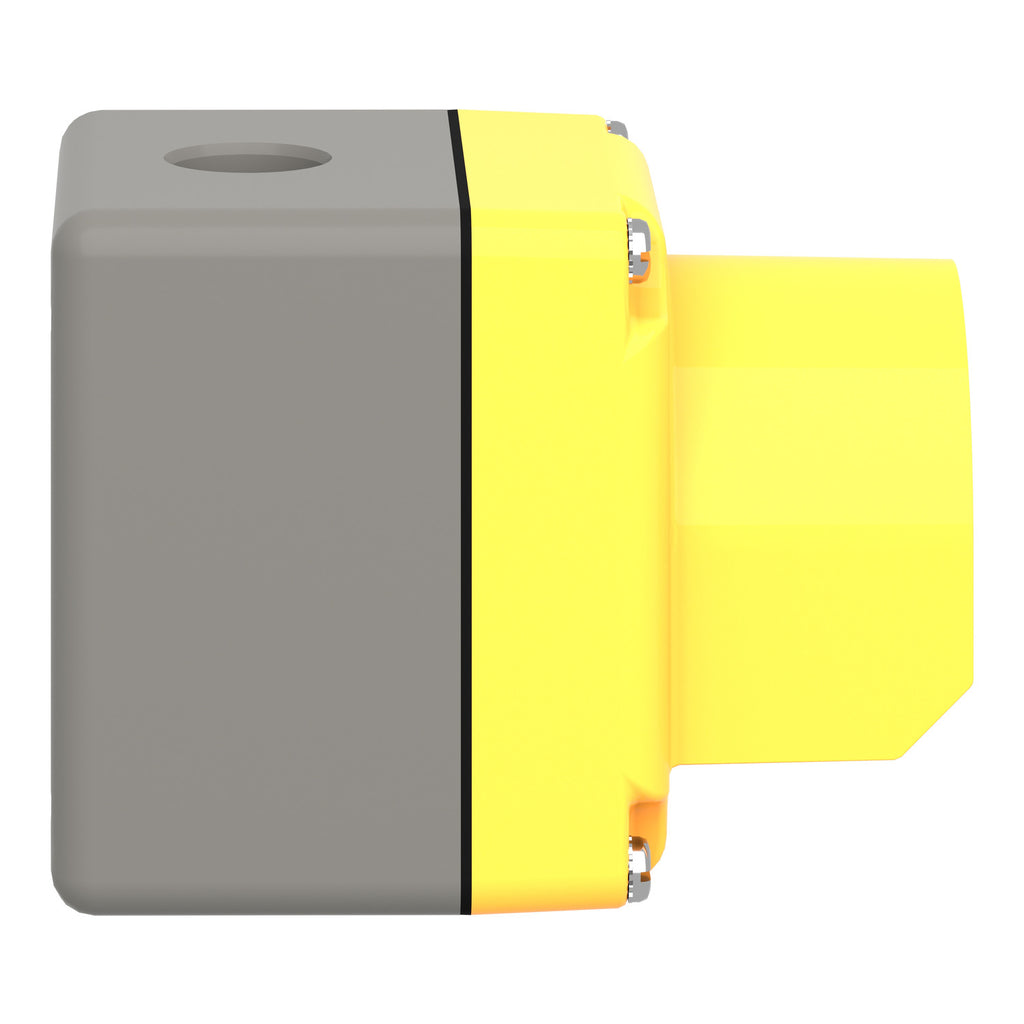

9001KYG1Y - Schneider Electric - Square D Empty Enclosure Control Station Harmony 9001K/SK Aluminium Yellow 1 Cut-out
This empty enclosure is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It's made of aluminium High performance International standards & certifications (Marine ABS certification, Type 3 and 13)
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K Harmony 9001SK |
|---|---|
| Product or Component Type | Empty enclosure |
| Device short name | 9001K |
| Number of cut-out | 1 cut-out |
| Cable entry | 1 entry tapped for 3/4'' cable gland |
| Product destination | For Ø 30 mm control and signalling units |
|---|---|
| Material | Aluminium |
| Colour of cover | Yellow |
| Product Weight | 2.6 lb(US) (1.2 kg) |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | II conforming to IEC 61140 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 3 NEMA 4 NEMA 6 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901492917 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.291 in (10.900 cm) |
| Package 1 Width | 5.000 in (12.700 cm) |
| Package 1 Length | 6.299 in (16.000 cm) |
| Package weight(Lbs) | 2.998 lb(US) (1.360 kg) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 24.965 lb(US) (11.324 kg) |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 17.717 in (45.000 cm) |
| Package 3 Width | 31.496 in (80.000 cm) |
| Package 3 Length | 47.244 in (120.000 cm) |
| Package 3 Weight | 226.177 lb(US) (102.592 kg) |
PRODUCT DATASHEET
