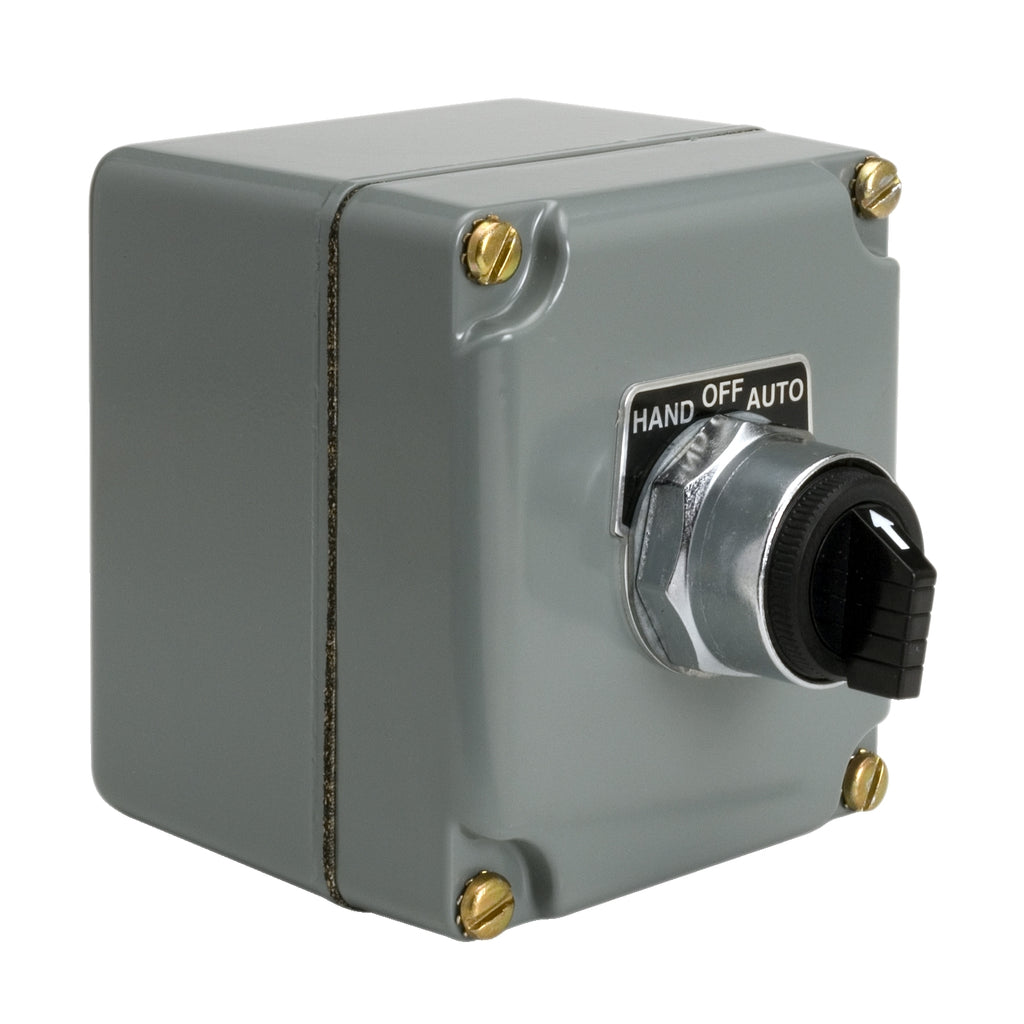

9001KYK111 - Schneider Electric - Square D Control Station Complete 10 A 300 VAC 1 Operator 1NC-1NO HAND-OFF-AUTO
This complete control station with one pushbutton provides an ergonomic interface for your machines It can be used indoor and outdoor It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is connected to control circuits with classic screw-clamp connections High performance International standards & certifications (IP69K, IK03, Type 4X)
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Complete control station |
| Device short name |
9001KY
KY |
| Provided equipment |
Contact block
Legend plate |
| Contact block name |
KA1 |
Complementary
| Enclosure/cubicle description |
Surface mounting |
| AC control voltage 50 HZ |
125…600 V |
| Enclosure material |
Die cast zinc alloy Gray |
| Type of Installation |
Indoor/outdoor |
| Control station composition |
1 push-button 1 NO + 1 NC HAND-OFF-AUTO |
| AC control voltage 60 HZ |
125…600 V |
| DC control voltage |
125…600 V |
| Connections - terminals |
Screw-clamp terminals |
| [Ie] rated operational current AC |
10 A |
| Number of command positions |
1 |
| Number of indicator lights |
0 |
| Number of push buttons |
1 |
| Number of selector switches |
0 |
| Number of key switches |
0 |
| Number of mushroom-shaped push-buttons |
0 |
| Emergency Power Off (EPO) |
No |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
1 |
| Number of contacts as change-over contact |
0 |
| Housing material |
Metal |
| Housing Colour |
Grey |
| colour of cover |
Grey |
Environment
| NEMA Degree of Protection |
NEMA 4/13 |
| IP Degree of Protection |
IP66 |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901513391 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
5.3 in (13.5 cm) |
| Package 1 Width |
5.5 in (14.0 cm) |
| Package 1 Length |
6.1 in (15.5 cm) |
| Package weight(Lbs) |
3.02 lb(US) (1.37 kg) |
