Description

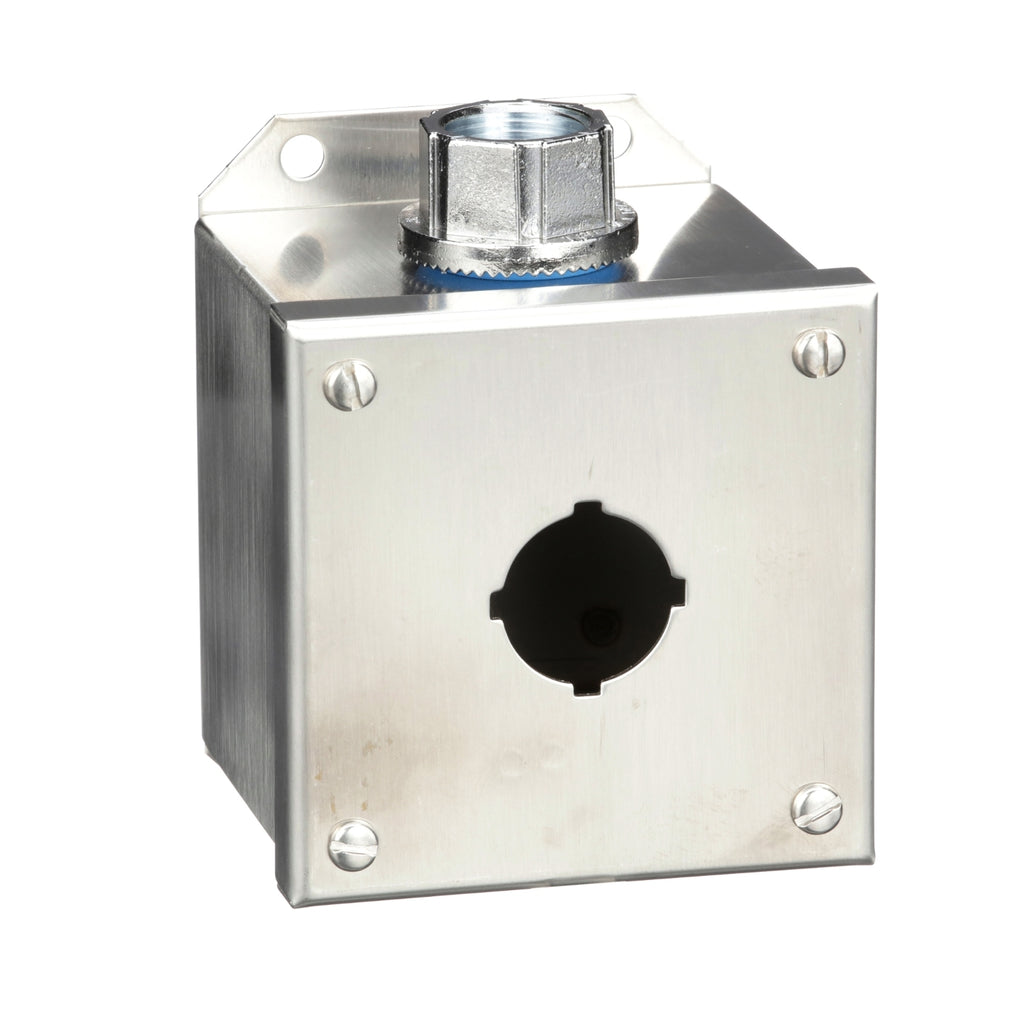

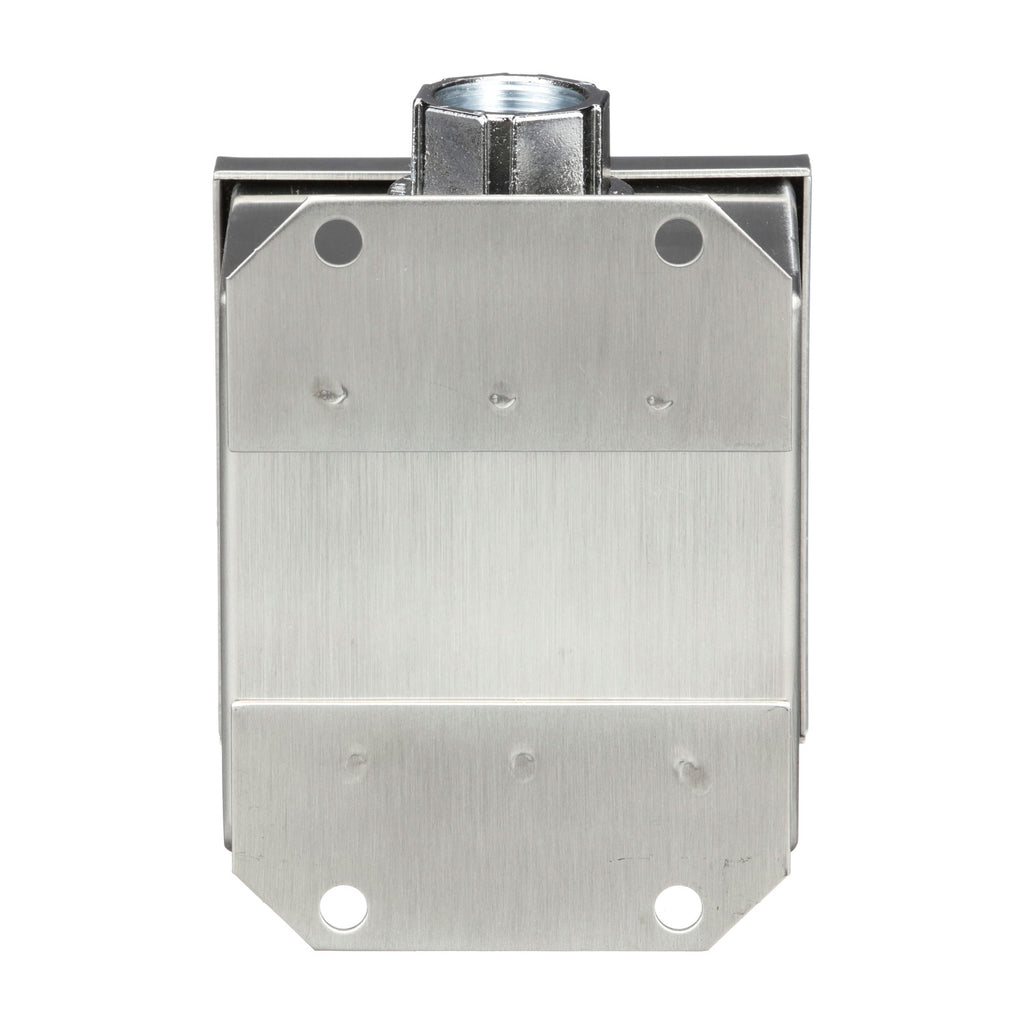

9001KYSS1 - Schneider Electric - Square D 30mm Push Button Types K or SK Empty Enclosure Stainless Steel 1 Hole
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001SK Harmony 9001K |
|---|---|
| Product or Component Type | Empty enclosure |
| Device short name | 9001K |
| Number of cut-out | 1 cut-out |
| Cable entry | 1 entry tapped for 3/4'' knockout |
| Product destination | For Ø 30 mm control and signalling units |
|---|---|
| Material | Stainless steel |
| Net Weight | 2.34 lb(US) (1.06 kg) |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | II conforming to IEC 61140 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 3 NEMA 4 NEMA 4X |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901017486 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.60 in (14.224 cm) |
| Package 1 Width | 5.50 in (13.97 cm) |
| Package 1 Length | 6.40 in (16.256 cm) |
| Package 1 Weight | 2.38 lb(US) (1.08 kg) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.81 in (30.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 15.646 lb(US) (7.097 kg) |
PRODUCT DATASHEET
