Description
9001KYSS2 - Schneider Electric - Square D Empty Enclosure Control Station Harmony 9001K/SK Stainless Steel 2 Cut-outs

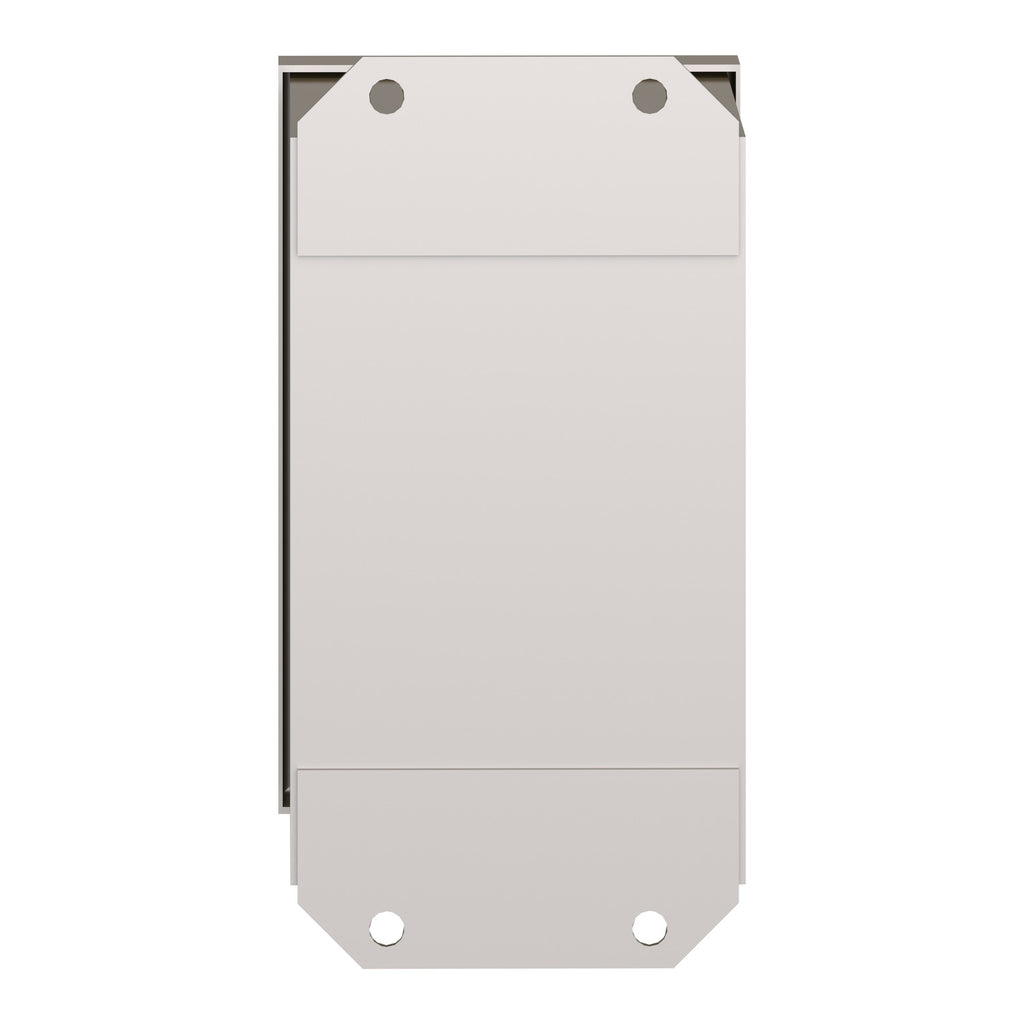

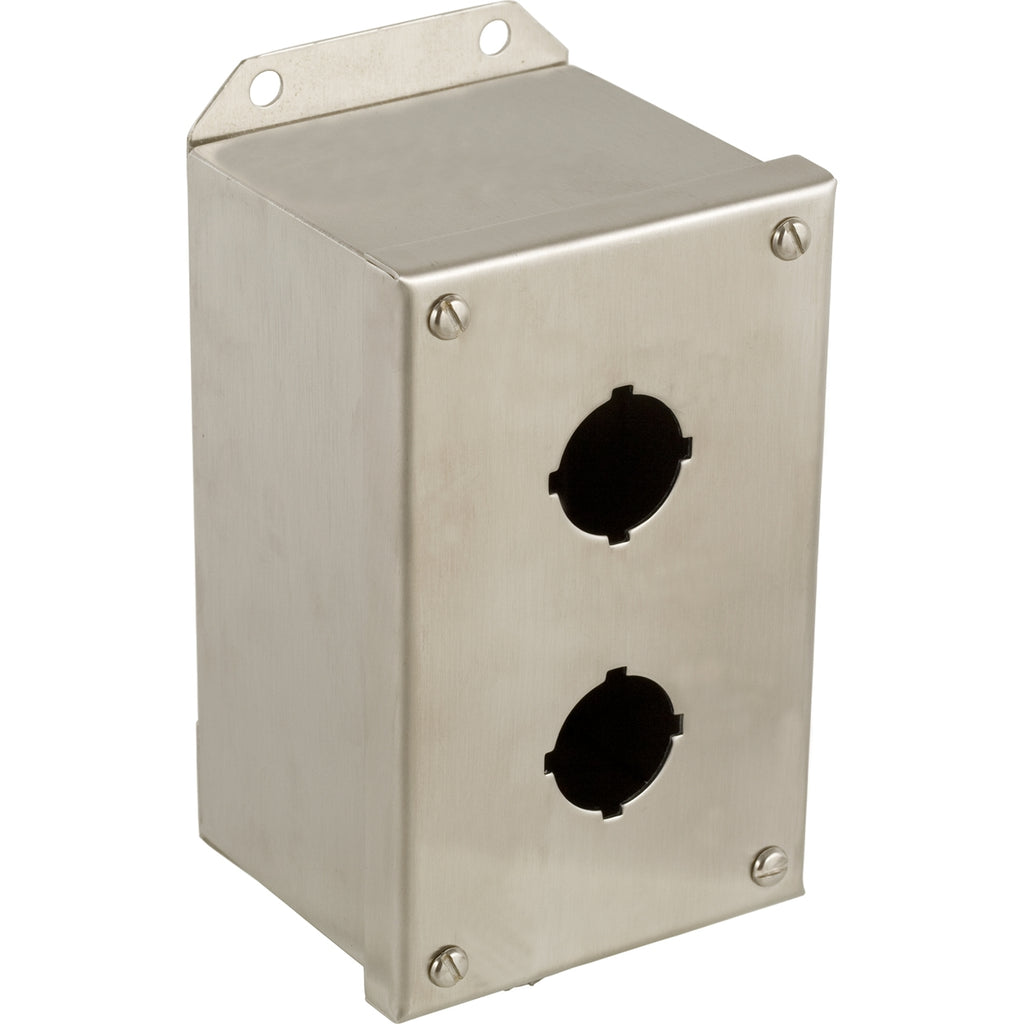

This empty enclosure is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It comprises a stainless steel enclosure with 2 vertical openings diameter 30mm. It is supplied with 1 entry tapped for 3/4'' knockout. This robust control station complies with the requirements of NEMA 1/13/3/4/4X ratings. It weighs 1.370kg. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K Harmony 9001SK |
|---|---|
| Product or Component Type | Empty enclosure |
| Device short name | 9001K |
| Number of cut-out | 2 cut-outs |
| Cable entry | 1 entry tapped for 3/4'' knockout |
| Product destination | For Ø 30 mm control and signalling units |
|---|---|
| Material | Stainless steel |
| Net Weight | 3.02 lb(US) (1.37 kg) |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | II conforming to IEC 61140 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 3 NEMA 4 NEMA 4X |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901017493 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.31 in (13.500 cm) |
| Package 1 Width | 4.72 in (12.000 cm) |
| Package 1 Length | 8.07 in (20.500 cm) |
| Package 1 Weight | 3.005 lb(US) (1.363 kg) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 19.601 lb(US) (8.891 kg) |
PRODUCT DATASHEET
