9001R8 - Schneider Electric - Square D Push Button with LED Light

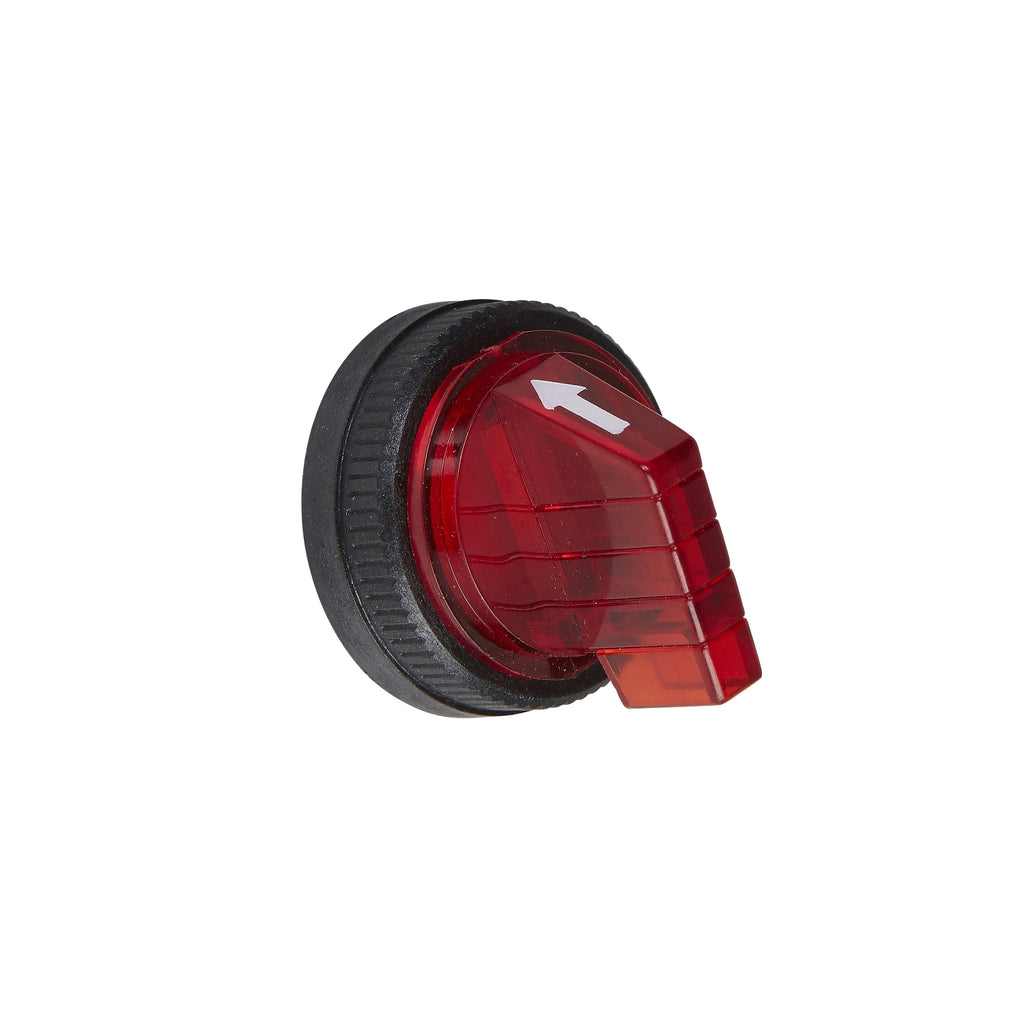

The Schneider Electric 9001R8 is a red standard handle designed for use with 30mm selector switches in the Harmony 9001K and 9001SK series. It serves as a replacement or accessory handle, offering reliable operation and clear visual indication in industrial control systems. Its standard-length design provides comfortable grip and control for switching operations.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K
Harmony 9001SK |
| Product or Component Type |
Handle |
| Accessory / Separate Part Type |
Knob |
| Accessory / separate part category |
Spare parts |
| Accessory / separate part destination |
Selector switch |
Complementary
| Shape |
Standard |
| Mounting diameter |
1.2 in (30 mm) |
| Cap/operator or lens colour |
Red |
| Product Weight |
0.011 lb(US) (0.005 kg) |
| Operator profile |
Standard handle |
Ordering and shipping details
| Category |
US10CS121433 |
| Discount Schedule |
0CS1 |
| GTIN |
785901857921 |
| Returnability |
No |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
0.700 in (1.778 cm) |
| Package 1 Width |
1.000 in (2.540 cm) |
| Package 1 Length |
1.000 in (2.540 cm) |
| Package weight(Lbs) |
0.159 oz (4.500 g) |
| Unit Type of Package 2 |
S01 |
| Number of Units in Package 2 |
15 |
| Package 2 Height |
5.906 in (15.000 cm) |
| Package 2 Width |
5.906 in (15.000 cm) |
| Package 2 Length |
15.748 in (40.000 cm) |
| Package 2 Weight |
9.453 oz (268.000 g) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
480 |
| Package 3 Height |
29.528 in (75.000 cm) |
| Package 3 Width |
23.622 in (60.000 cm) |
| Package 3 Length |
31.496 in (80.000 cm) |
| Package 3 Weight |
36.509 lb(US) (16.560 kg) |
PRODUCT DATASHEET
9001R8_Product Datasheet
