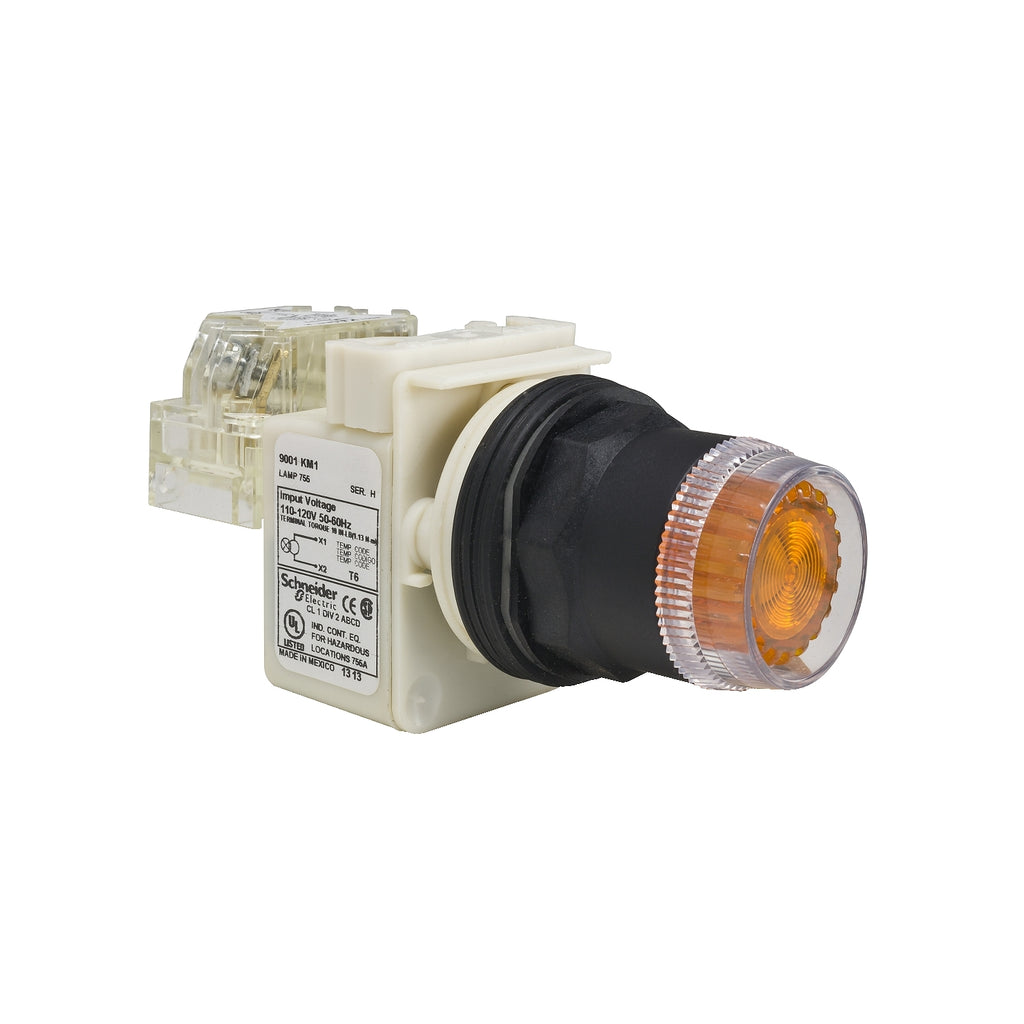

9001SK1L35A - Schneider Electric - Square D Indicator Light Unit
This Harmony 9001SK, modular illuminated flush amber push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 24V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001SK |
|---|---|
| Product or Component Type | Head for illuminated push-button |
| Device short name | 9001SK |
| Bezel material | Plastic |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Shape of signaling unit head | Octagonal |
| Type of operator | spring return |
| Operator profile | Amber flush, unmarked |
| Operator additional information | Plastic guard |
| Light source | incandescent |
| Bulb base | BA 9s |
| Light block supply | Direct 24...28 V AC/DC |
| Contacts type and composition | Without contact block |
| Standards | JIS C 4520 CSA C22.2 No 14 EN/IEC 60947-5-4 EN/IEC 60947-1 EN/IEC 60947-5-1 JIS C 852 UL 508 |
| Product Certifications | UL 508 UL listed file E78403 CCN NKCR CSA LR25490 class 3211 03 NEMA |
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X |
| Mechanical durability | 5000000 cycles |
| Operating position | Any position |
| Product Weight | 0.399 lb(US) (0.181 kg) |
| Cap/operator or lens colour | Amber |
| [Us] rated supply voltage | 24...28 V |
| Light block supply | Full voltage |
| Operator profile | Flush |
| Type of operator | Spring return |
| Size | 30 mm |
| Light source | Incandescent bulb |
| Category | US10CS121429 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901040415 |
| Returnability | No |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 5.080 in (12.903 cm) |
| Package 1 Width | 2.00 in (5.08 cm) |
| Package 1 Length | 12.903 in (32.774 cm) |
| Package weight(Lbs) | 3.52 oz (99.79 g) |
