9001SKP - Schneider Electric - Square D Push Button with LED Light

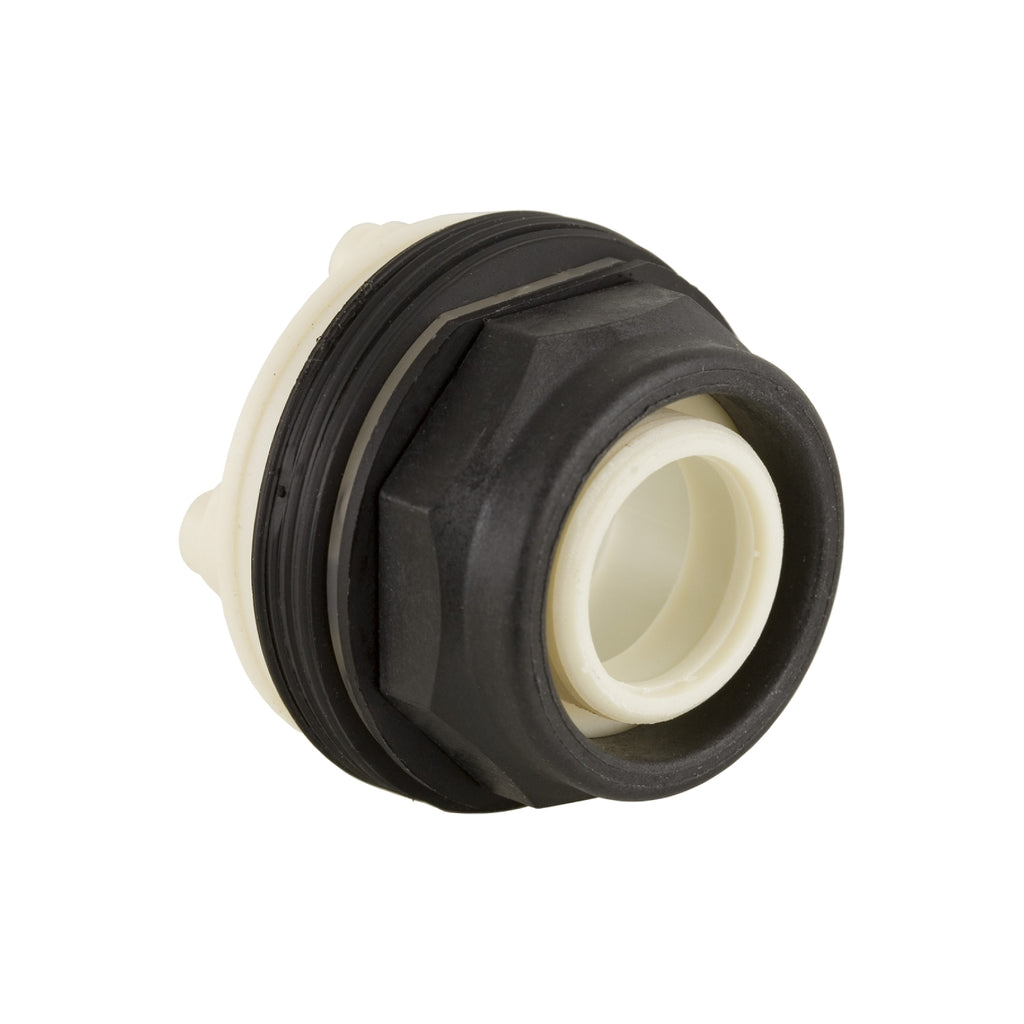

This Harmony 9001SK product is a pilot light head, without a cap and bulb. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. A dedicated bulb and cap need to be purchased separately. Harmony 9001SK is a range of heavy-duty plastic pushbuttons, selector switches, pilot lights, and specialty operators. The Harmony 9001SK units, with a double insulated bezel, are designed for applications requiring high resistance to corrosion.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001SK |
| Product or Component Type |
Head for pilot light |
| Light block supply |
Without supply |
Complementary
| Bezel material |
Plastic |
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Cap/operator or lens colour |
Without cap |
| Light source |
without |
| Bulb base |
BA 9s |
| Operating Mode |
Normal |
| Light block supply |
Without supply |
| Size |
30 mm |
| Light source |
Bulb not included |
Environment
| Protective treatment |
TC |
| IP Degree of Protection |
IP65/IP66 |
Ordering and shipping details
| Category |
US10CS121429 |
| Discount Schedule |
0CS1 |
| GTIN |
785901458234 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.800 in (4.572 cm) |
| Package 1 Width |
2.200 in (5.588 cm) |
| Package 1 Length |
3.700 in (9.398 cm) |
| Package weight(Lbs) |
1.280 oz (36.287 g) |
