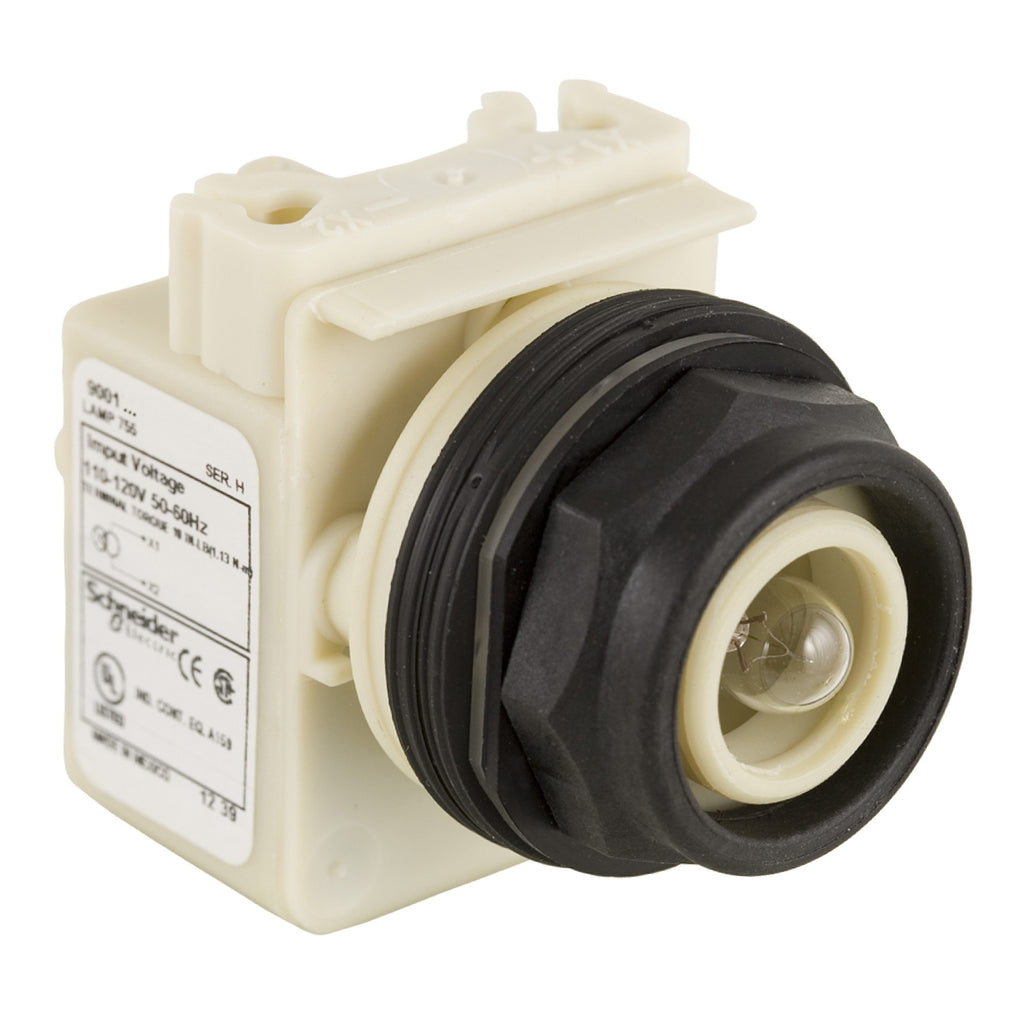

9001SKP1 - Schneider Electric - Square D Push Button with LED Light
This pilot light is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel and is delivered without color cap. It is supplied via internal transformer with 110V to 120V AC and it is connected with simple screw-clamp connections. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001SK |
| Product or Component Type |
Head for pilot light |
| Light block supply |
Via transformer 110 V AC 50/60 Hz
Via transformer 120 V AC 50/60 Hz |
Complementary
| Bezel material |
Plastic |
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Cap/operator or lens colour |
Without cap |
| Bulb base |
BA 9s |
| Operating Mode |
Normal |
| [Us] rated supply voltage |
110...120 V |
| Light block supply |
Via integral transformer |
| Supply frequency |
50...60 Hz |
| Size |
30 mm |
| Light source |
Incandescent bulb |
Environment
| Protective treatment |
TC |
| IP Degree of Protection |
IP65/IP66 |
Ordering and shipping details
| Category |
US10CS121429 |
| Discount Schedule |
0CS1 |
| GTIN |
785901458241 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.800 in (4.572 cm) |
| Package 1 Width |
2.200 in (5.588 cm) |
| Package 1 Length |
3.600 in (9.144 cm) |
| Package weight(Lbs) |
5.760 oz (163.300 g) |
| Unit Type of Package 2 |
S01 |
| Number of Units in Package 2 |
16 |
| Package 2 Height |
5.906 in (15.000 cm) |
| Package 2 Width |
5.906 in (15.000 cm) |
| Package 2 Length |
15.748 in (40.000 cm) |
| Package 2 Weight |
6.202 lb(US) (2.813 kg) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
512 |
| Package 3 Height |
29.528 in (75.000 cm) |
| Package 3 Width |
23.622 in (60.000 cm) |
| Package 3 Length |
31.496 in (80.000 cm) |
| Package 3 Weight |
216.075 lb(US) (98.010 kg) |
