9001SKR1B - Schneider Electric - Square D Push Button

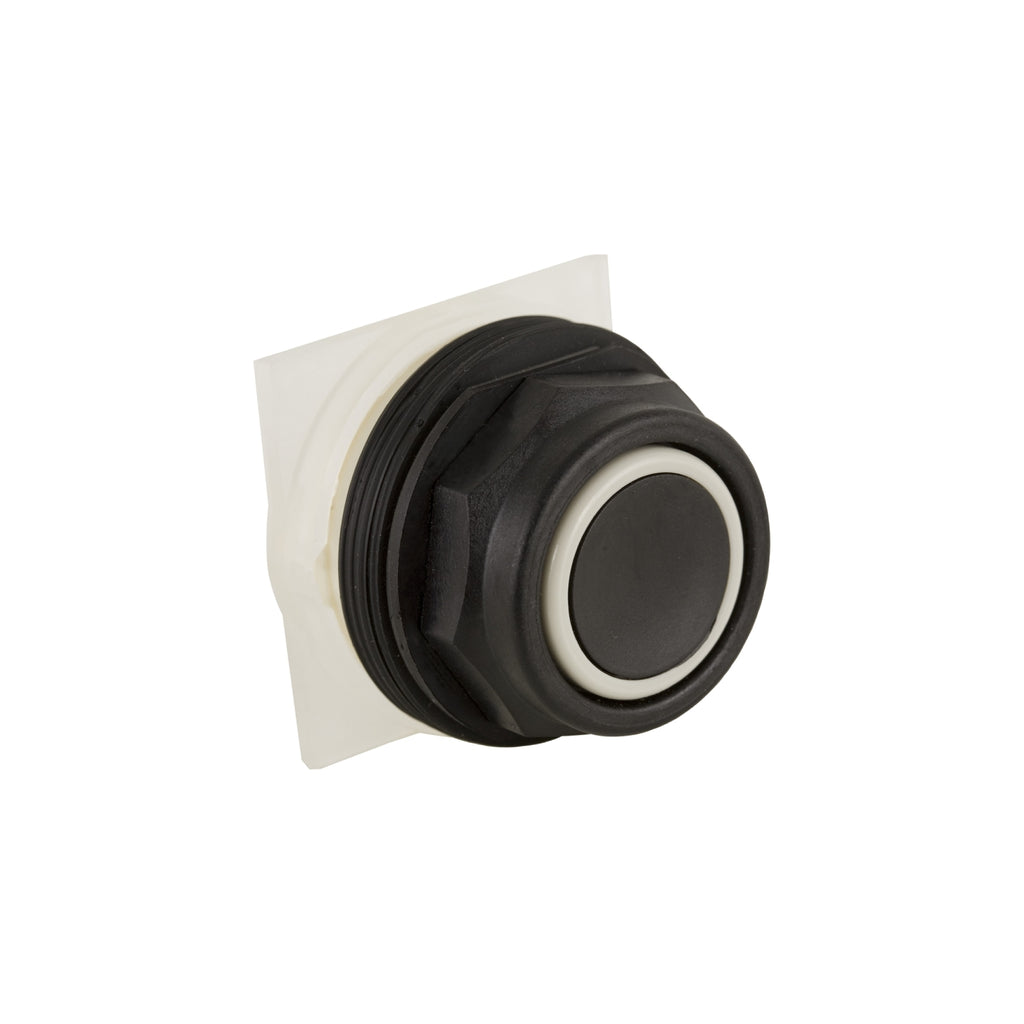

This Harmony 9001SK, modular flush black push button with full guard has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001SK |
| Product or Component Type |
Head for push-button |
| Device short name |
9001SK |
Complementary
| Bezel material |
Plastic |
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Octagonal |
| Light source |
without |
| Light block supply |
Without supply |
| Contacts type and composition |
Without contact block |
| Product Certifications |
CE
CSA LR24590 class 3211 03
UL listed file E42259 CCN NKCR |
| NEMA degree of protection |
NEMA 3R/4X/13 |
| Cap/operator or lens colour |
Black |
| Operator profile |
Flush |
| Type of operator |
Spring return |
| Size |
30 mm |
Environment
| IP Degree of Protection |
IP65/IP66 |
Ordering and shipping details
| Category |
US10CS121429 |
| Discount Schedule |
0CS1 |
| GTIN |
785901793878 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.800 in (7.112 cm) |
| Package 1 Width |
2.300 in (5.842 cm) |
| Package 1 Length |
2.00 in (5.08 cm) |
| Package weight(Lbs) |
1.600 oz (45.359 g) |
