Description

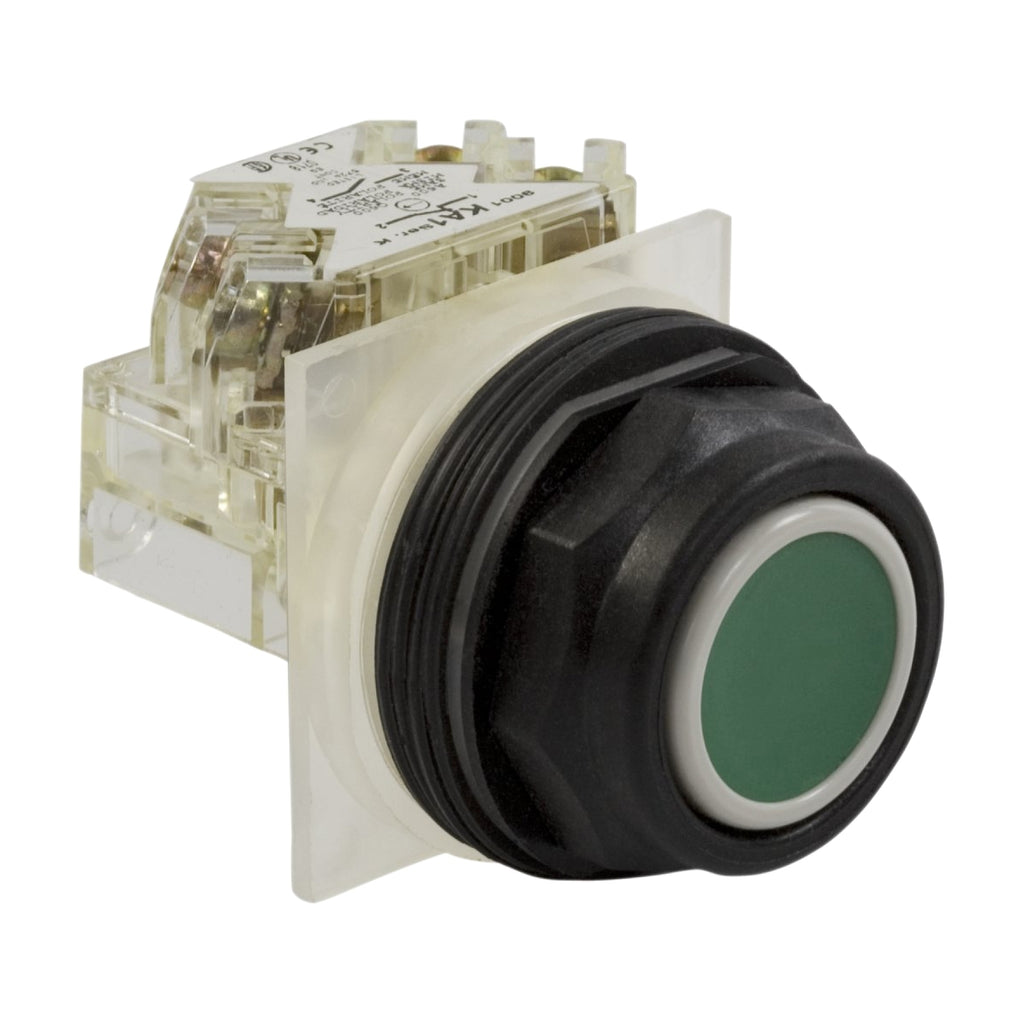

9001SKR1GH13 - Schneider Electric - Square D Push Button with LED Light
This Harmony 9001SK, modular flush green push button with full guard has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NO + 1 x NC contacts. This flush push button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001SK |
|---|---|
| Product or Component Type | Push-button |
| Device short name | 9001SK |
| Type of operator | spring return |
| Operator profile | Green flush, unmarked |
| Operator additional information | Plastic guard |
| Bezel material | Plastic |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Shape of signaling unit head | Octagonal |
| Contacts type and composition | 1 C/O |
| Contact operation | Standard |
| Connections - terminals | Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| Shape of screw head | Cross slotted |
| Mechanical durability | 5000000 cycles |
| Operating position | Any position |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600-Q600 0.55 A 125 V, DC-13, A600-Q600 |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| Contacts material | Silver alloy contacts |
| Positive opening | Without |
| Short-circuit protection | 10 A cartridge fuse IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Icm] rated short-circuit making capacity | 12 kA 600 V AC-15, 7200 VA 15 kA 480 V AC-15, 7200 VA 30 kA 240 V AC-15, 7200 VA 60 kA 120 V AC-15, 7200 VA 0.1 kA 600 V DC-13 0.27 kA 250 V DC-13 0.55 kA 125 V DC-13 |
| Rated breaking capacity | 3 kA 240 V AC-15, 720 VA 6 kA 120 V AC-15, 720 VA 1.2 kA 600 V AC-15, 720 VA 1.5 kA 480 V AC-15, 720 VA 0.1 kA 600 V DC-13 0.27 kA 250 V DC-13 0.55 kA 125 V DC-13 |
| Net Weight | 0.190 lb(US) (0.086 kg) |
| Device presentation | Complete product |
| Cap/operator or lens colour | Green |
| Operator profile | Flush |
| Type of operator | Spring return |
| Size | 30 mm |
| Standards | IEC 60947-1 IEC 60947-5-4 JIS C 852 IEC 60947-5-1 CSA C22.2 No 14 JIS C 4520 |
|---|---|
| Product Certifications | NEMA UL 508 |
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Electrical shock protection class | Class II IEC 61140 |
| IP degree of protection | IP66 IEC 60529 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X |
| Category | US10CS121429 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901849797 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.01 in (5.1 cm) |
| Package 1 Width | 2.28 in (5.8 cm) |
| Package 1 Length | 3.70 in (9.4 cm) |
| Package 1 Weight | 3.2 oz (91.0 g) |
PRODUCT DATASHEET
9001SKR1GH13_Product Datasheet
