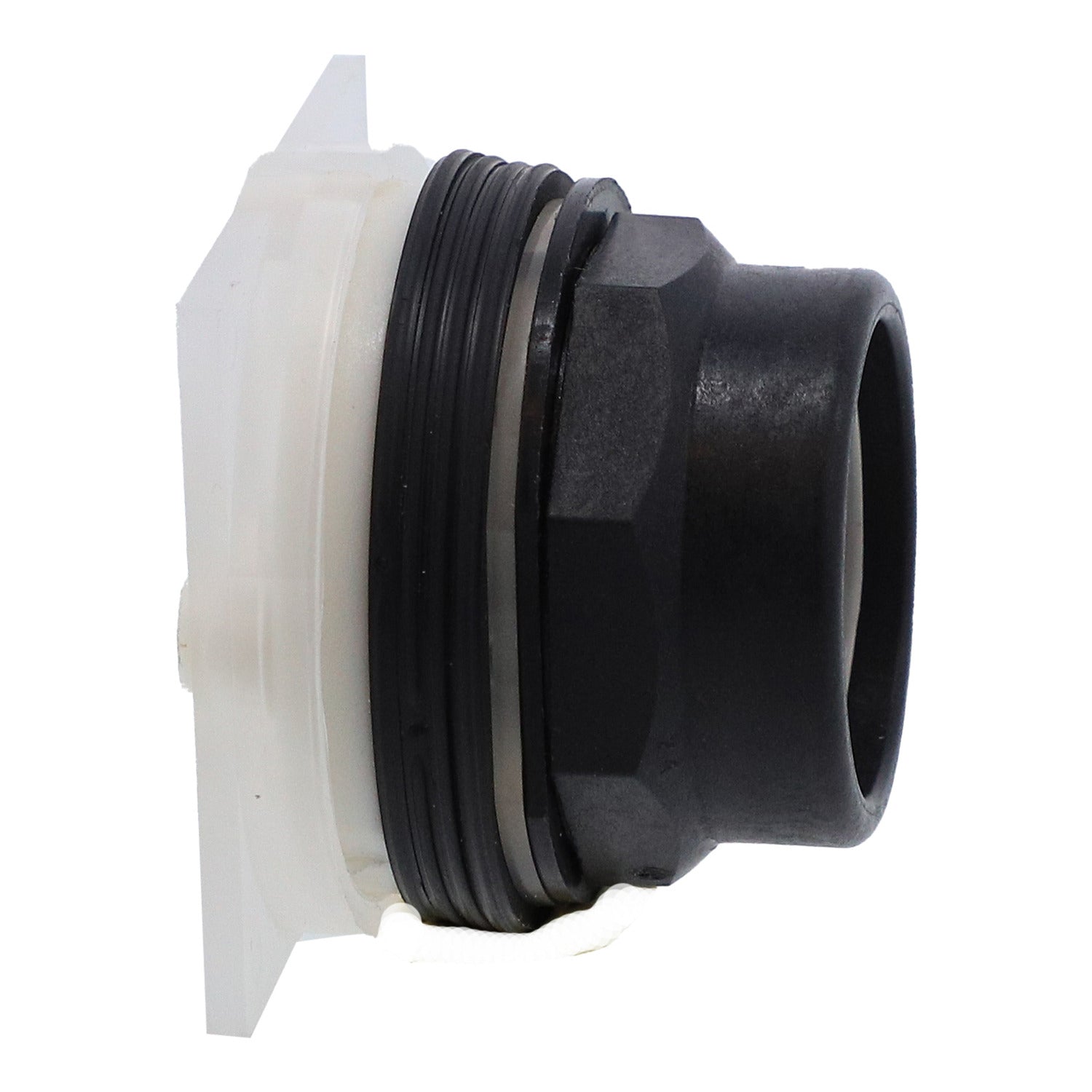

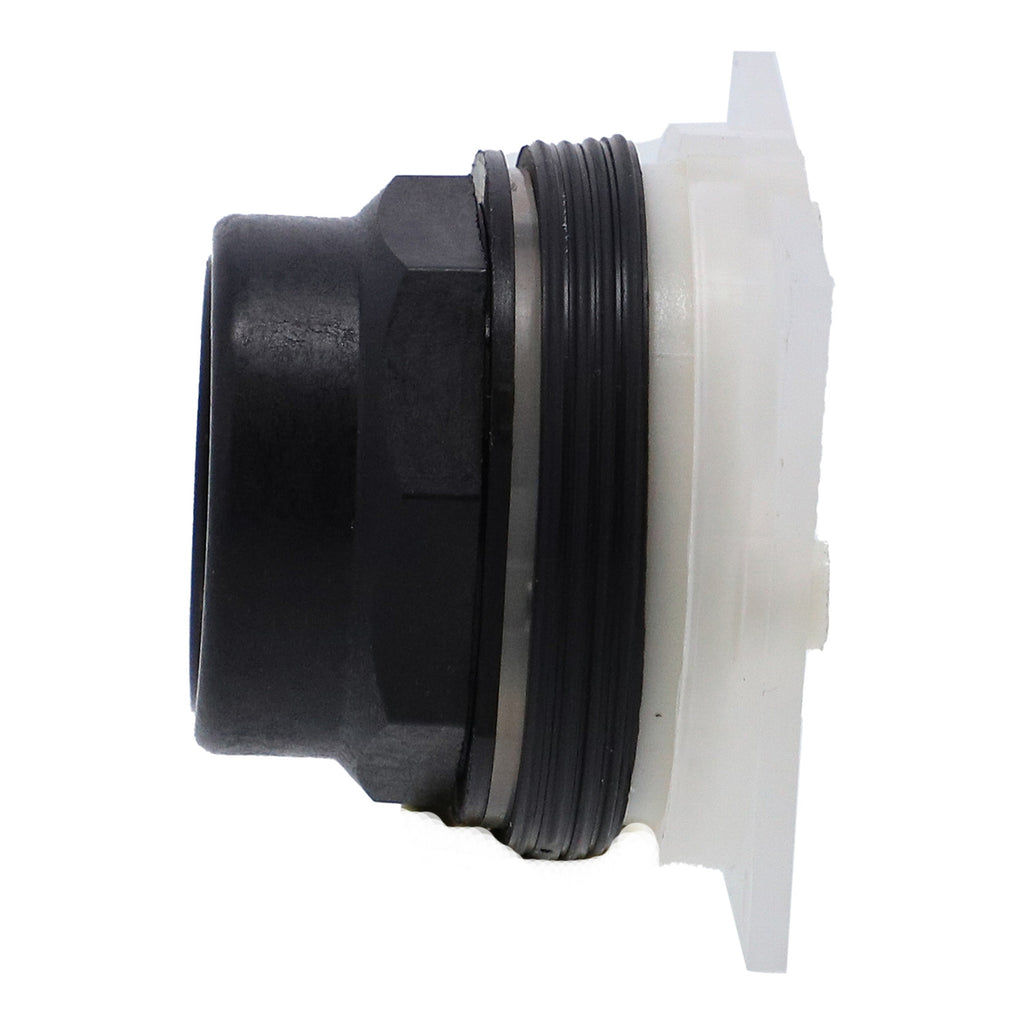

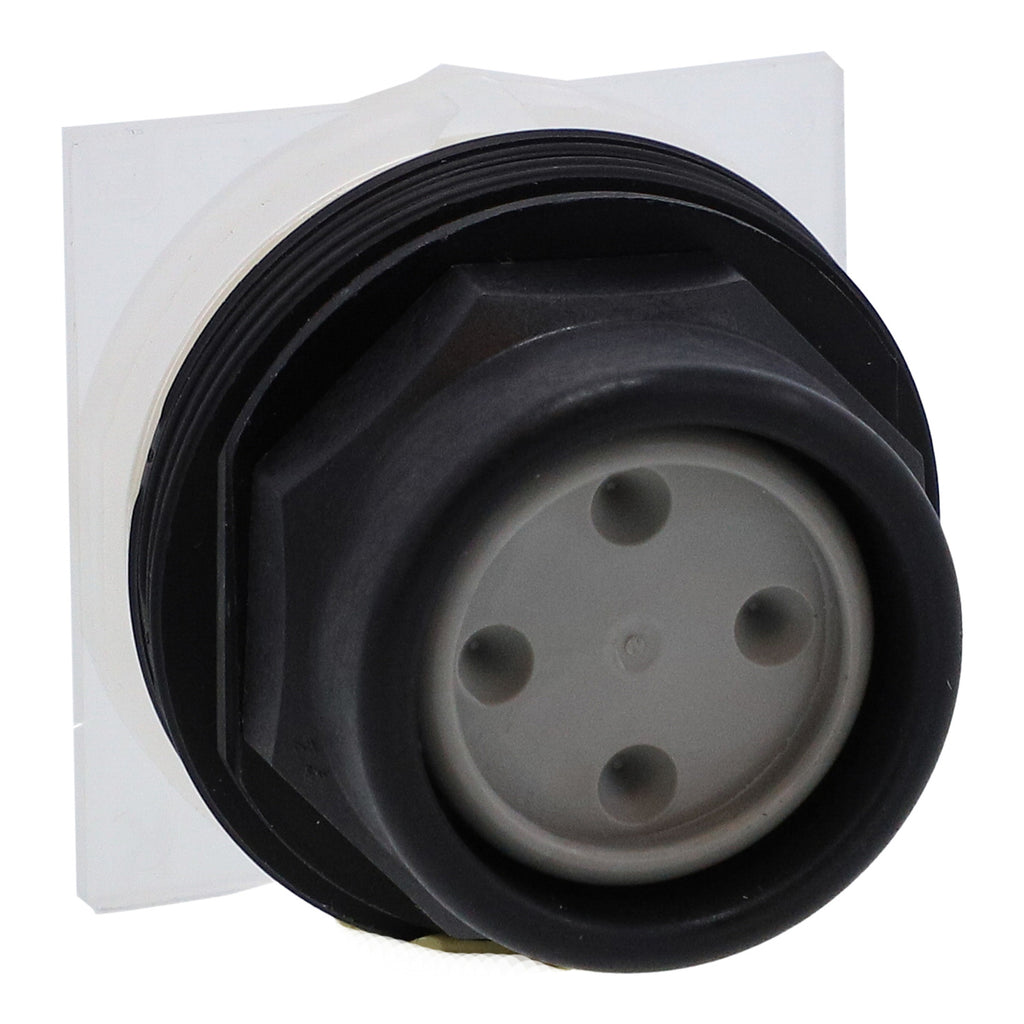

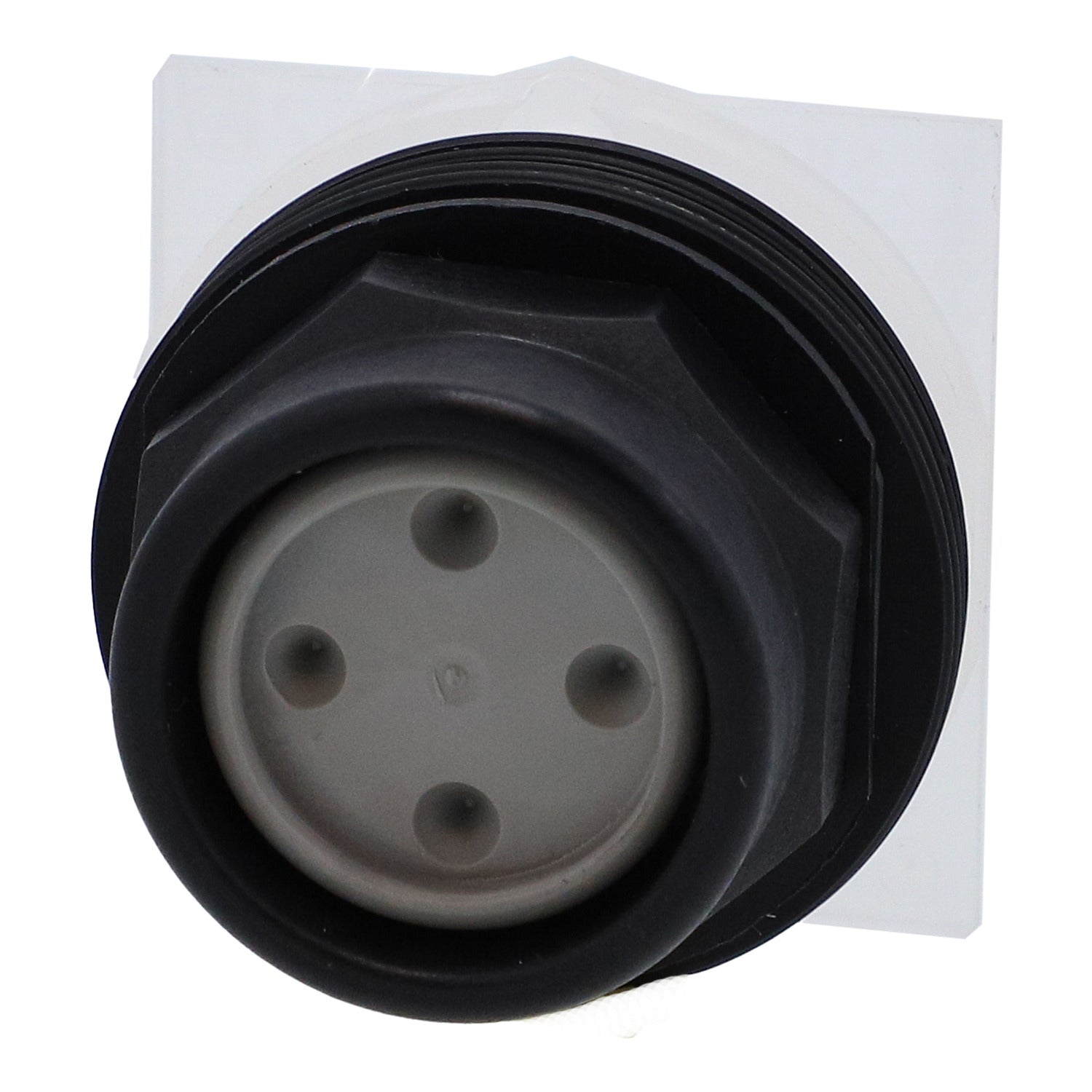

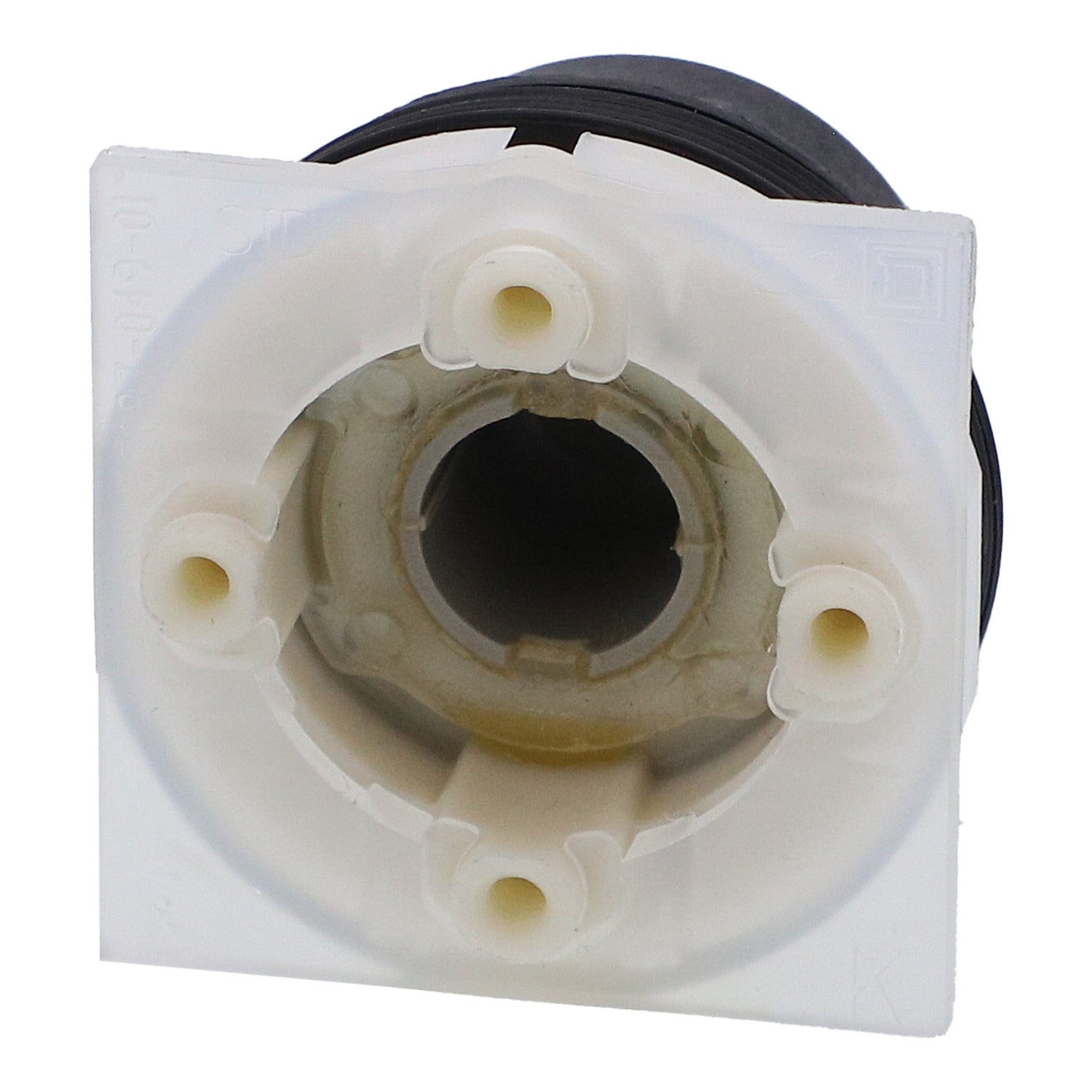

9001SKR2U - Schneider Electric - Square D Push Button with LED Light
This Harmony 9001SK, modular recessed push button with extended guard and set of 7 color caps has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001SK |
| Product or Component Type |
Head for push-button |
| Device short name |
9001SK |
| Operator profile |
recessed, unmarked |
| Operator additional information |
Plastic guard |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Product Weight |
0.11 lb(US) (0.05 kg) |
| Bezel material |
Plastic |
| Cap/operator or lens colour |
7 colours choice |
| Operator profile |
Recessed |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Environment
| IP Degree of Protection |
IP65/IP66 |
Ordering and shipping details
| Category |
US10CS121429 |
| Discount Schedule |
0CS1 |
| GTIN |
785901524380 |
| Returnability |
No |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.008 in (5.1 cm) |
| Package 1 Width |
2.3 in (5.9 cm) |
| Package 1 Length |
2.9 in (7.4 cm) |
| Package weight(Lbs) |
1.8 oz (50 g) |
| Unit Type of Package 2 |
S01 |
| Number of Units in Package 2 |
12 |
| Package 2 Height |
5.9 in (15 cm) |
| Package 2 Width |
5.9 in (15 cm) |
| Package 2 Length |
15.7 in (40 cm) |
| Package 2 Weight |
13.521 lb(US) (6.133 kg) |
