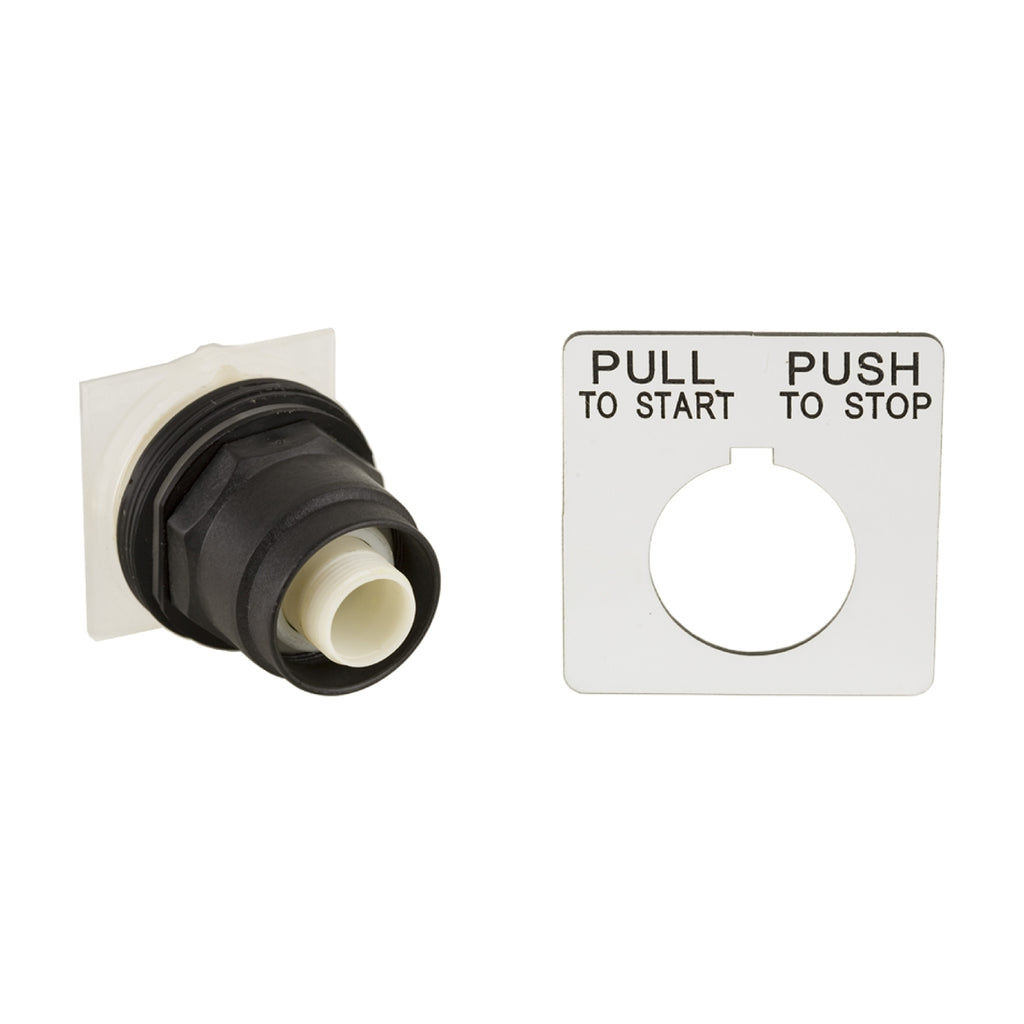

9001SKR8 - Schneider Electric - Square D Push Button with LED Light
This octogonal shaped push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP64, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions High performance International standards & certifications (Marine ABS certification, IP64, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001SK |
| Product or Component Type |
Head for push-button |
| Device short name |
9001SK |
Complementary
| Bezel material |
Plastic |
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Octagonal |
| Light source |
without |
| Light block supply |
Without supply |
| Contacts type and composition |
Without contact block |
| Product Certifications |
UL listed file E42259 CCN NKCR
CE
CSA LR24590 class 3211 03 |
| NEMA degree of protection |
NEMA 3R/4X/13 |
| Cap/operator or lens colour |
Without mushroom |
| Type of operator |
Pull : spring return, center : stay put, push : spring return |
| Operator position information |
3 positions |
| Size |
30 mm |
Ordering and shipping details
| Category |
US10CS121429 |
| Discount Schedule |
0CS1 |
| GTIN |
785901064558 |
| Returnability |
No |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.90 in (4.826 cm) |
| Package 1 Width |
2.30 in (5.842 cm) |
| Package 1 Length |
4.50 in (11.43 cm) |
| Package 1 Weight |
2.240 oz (63.503 g) |
PRODUCT DATASHEET
9001SKR8_Product Datasheet
