9001SKR9 - Schneider Electric - Square D Push Button with LED Light

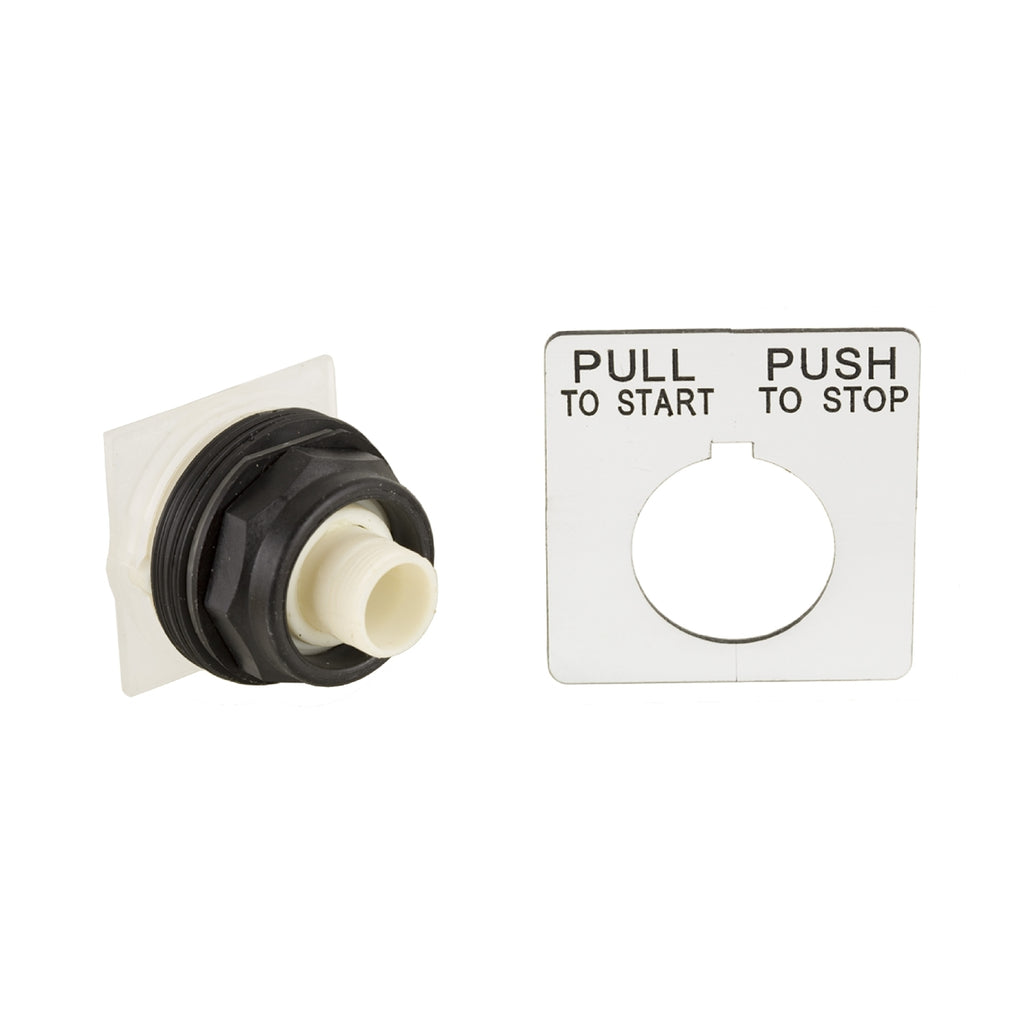

This head for push-button is a separate component of the range of control and signaling units, Harmony 9001SK diameter 30mm. It has a double insulated bezel. It is supplied without knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It features push pull operation. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001SK |
| Product or Component Type |
Head for push-button |
| Device short name |
9001SK |
Complementary
| Bezel material |
Plastic |
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Octagonal |
| Type of operator |
maintained |
| Light source |
without |
| Light block supply |
Without supply |
| Contacts type and composition |
Without contact block |
| Product Certifications |
CE
UL listed file E42259 CCN NKCR
CSA LR24590 class 3211 03 |
| NEMA degree of protection |
NEMA 3R/4X/13 |
| Cap/operator or lens colour |
Without mushroom |
| Type of operator |
Push-pull |
| Operator position information |
2 positions |
| Size |
30 mm |
Environment
| IP Degree of Protection |
IP65/IP66 |
Ordering and shipping details
| Category |
US10CS121429 |
| Discount Schedule |
0CS1 |
| GTIN |
785901546627 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.800 in (4.572 cm) |
| Package 1 Width |
2.100 in (5.334 cm) |
| Package 1 Length |
3.700 in (9.398 cm) |
| Package weight(Lbs) |
1.760 oz (49.895 g) |
