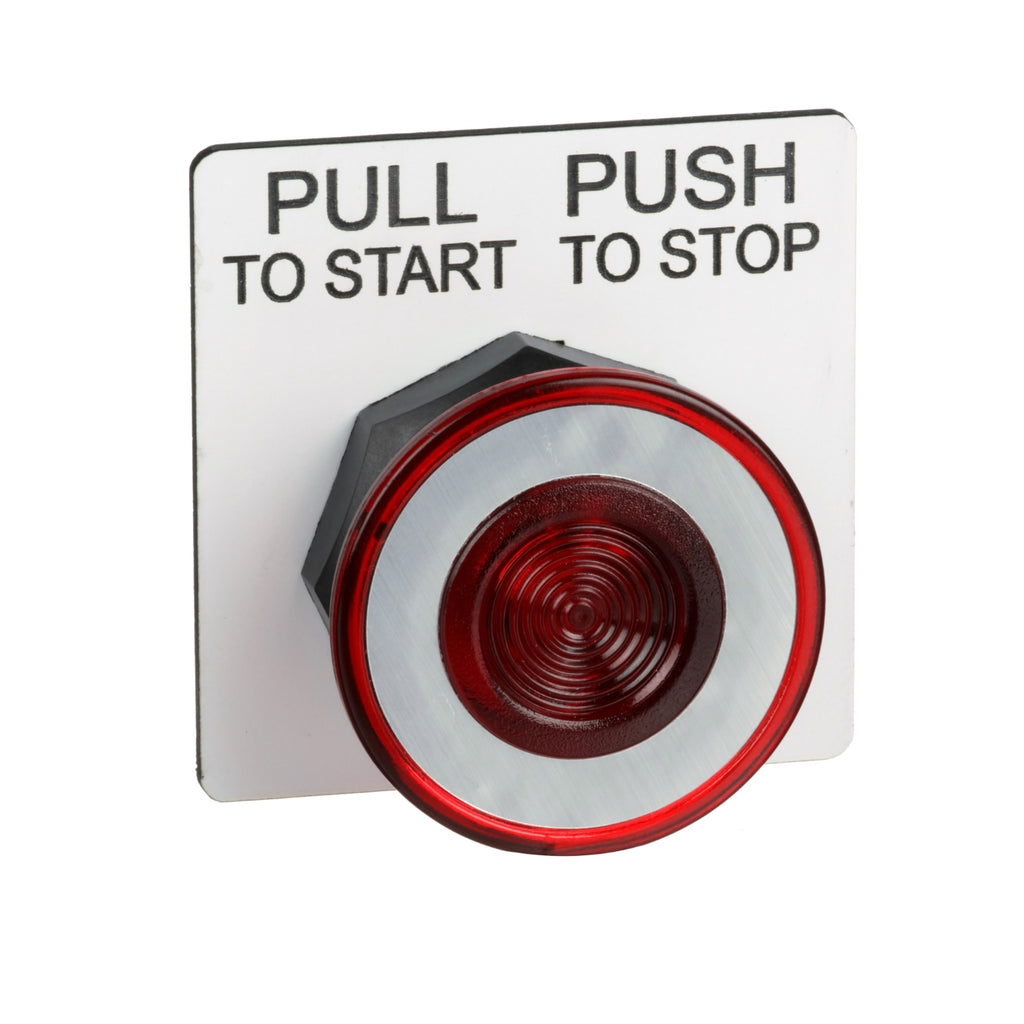

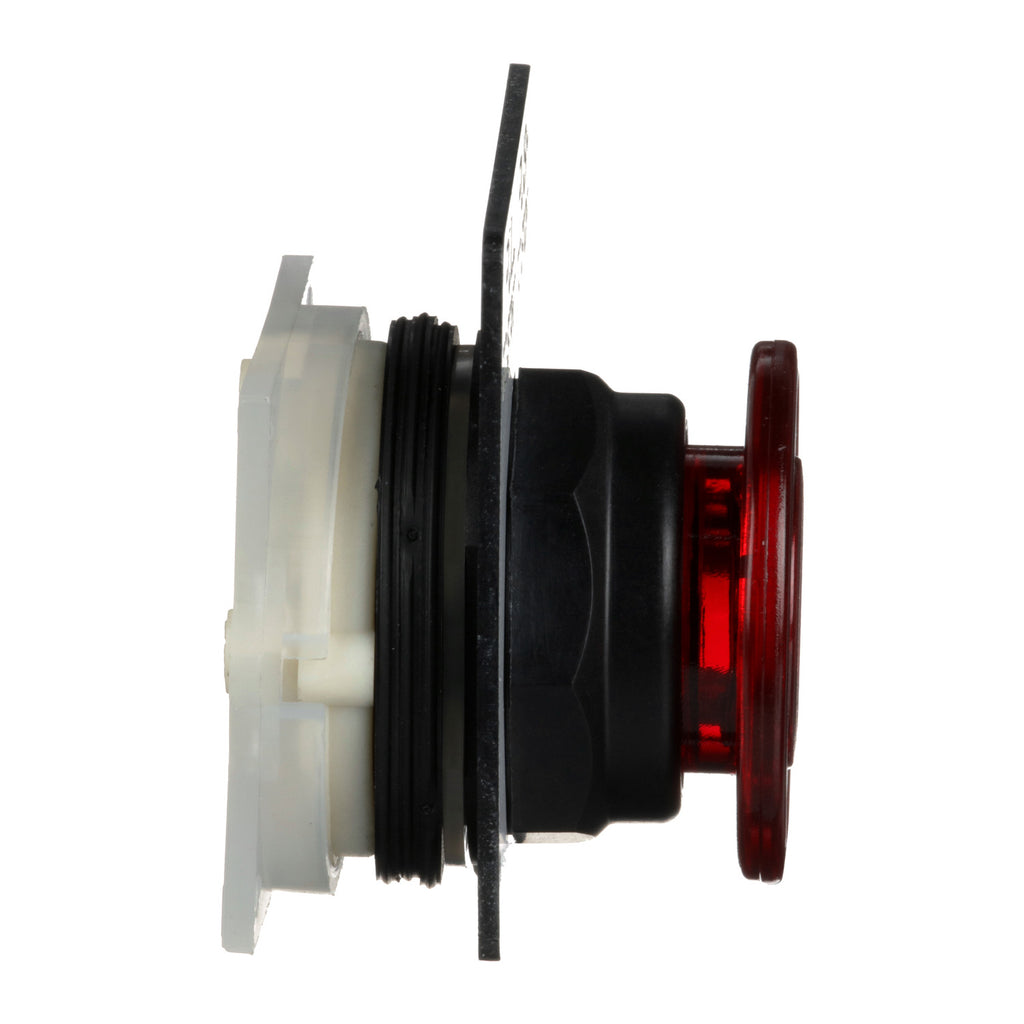

9001SKR9R - Schneider Electric - Square D Motor Control Parts

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Its protection index is IP66. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.


GENERAL SPECIFICATIONS

Main
Range of Product Harmony 9001SK
Product or Component Type Head for push-button
Device short name 9001SK
Complementary
Bezel material Plastic
Mounting diameter 1.2 in (30 mm)
CAD overall width 1.8 in (46 mm)
CAD overall height 1.8 in (45 mm)
CAD overall depth 2.7 in (69 mm)
Net Weight 0.209 lb(US) (0.095 kg)
Operating position Any position
Shape of signaling unit head Round
Type of operator maintained
Operator profile mushroom Ø 41 mm, unmarked
Mechanical durability 5000000 cycles
Operator additional information Screw-on plastic
Cap/operator or lens colour Red
Operator profile Mushroom Ø 41 mm
Type of operator Push-pull
Operator position information 2 positions
Contacts type and composition Without contact block
Size 30 mm
Environment
Protective treatment TC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient air temperature for operation -13…158 °F (-25…70 °C)
Electrical shock protection class Class II conforming to IEC 61140
IP degree of protection IP65/IP66
Enclosure Type NEMA 1
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
NEMA 4X
Standards CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C 4520
JIS C 852
UL 508
Product Certifications UL 508
NEMA
CSA LR25490 class 3211 03
UL listed file E78403 CCN NKCR
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn IEC 60068-2-27
Ordering and shipping details
Category US10CS121429
Discount Schedule 0CS1
GTIN 3389118036406
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.90 in (4.826 cm)
Package 1 Width 2.30 in (5.842 cm)
Package 1 Length 3.60 in (9.144 cm)
Package 1 Weight 2.081 oz (59.000 g)
Unit Type of Package 2 S02
Number of Units in Package 2 50
Package 2 Height 5.91 in (15.000 cm)
Package 2 Width 11.81 in (30.000 cm)
Package 2 Length 15.75 in (40.000 cm)
Package 2 Weight 6.881 lb(US) (3.121 kg)
Unit Type of Package 3 P06
Number of Units in Package 3 800
Package 3 Height 29.53 in (75.000 cm)
Package 3 Width 31.50 in (80.000 cm)
Package 3 Length 23.62 in (60.000 cm)
Package 3 Weight 130.869 lb(US) (59.361 kg)
