Description

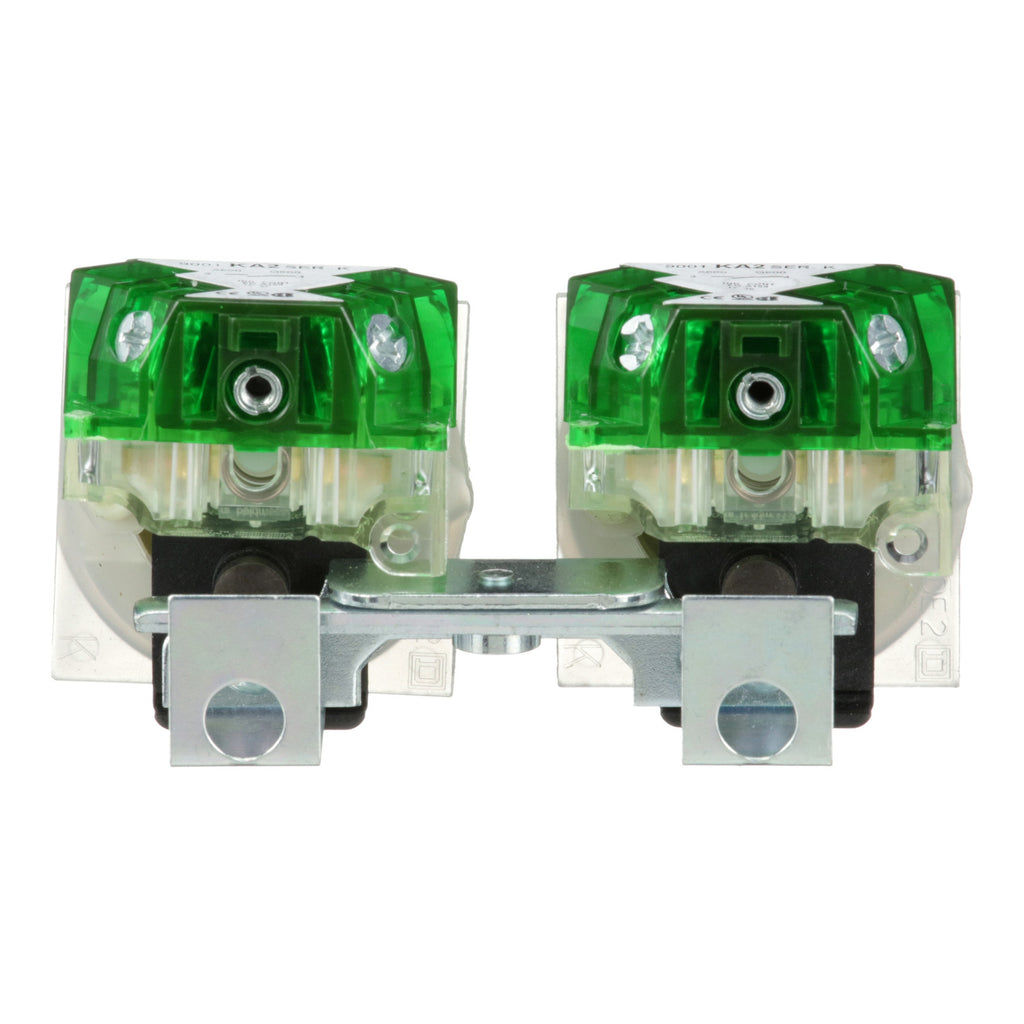

9001SKRU1 - Schneider Electric - Square D Sensor

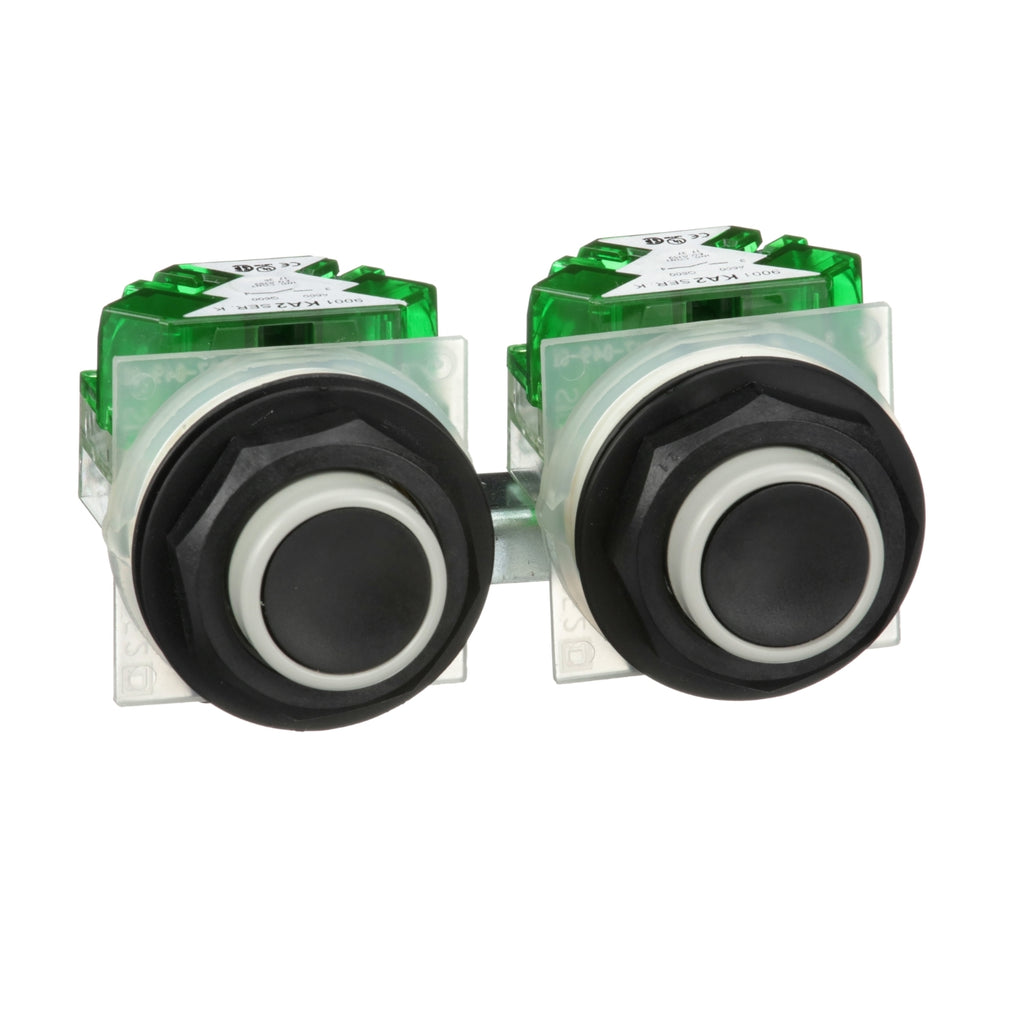

9001SKYP pendant stations consists of polymeric enclosures (2 to 10 units), push button operators (1 to 5 speed), and laminated legend plates. All 9001SKYP pendant enclosures have an extra single-unit space near the top that permits the installation of a toggle switch, a Type SK operator or pilot light, or a warning label. The enclosures for the 9001SKYP pendant stations come standard with a stainless steel hanger bracket and internal strain relief post. The pendant station enclosures are yellow with a threaded opening in the top. 9001SKYP pendant stations have NEMA Type environmental ratings of 1, 2, 3, 3R, 4, 4X, and 12. "This Skyp Plus options type pushbutton is fitted with black plastic bezel." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product meets UL 508, EN/IEC 60947-5-4, JIS C 852, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1 and JIS C 4520 standards." "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001SK |
|---|---|
| Product or Component Type | Push-button |
| Device short name | 9001SK |
| Bezel material | Plastic |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Contact operation | Standard |
| Mechanical durability | 5000000 cycles |
| Device presentation | Basic element |
| Standards | UL 508 IEC 60947-1 JIS C 852 JIS C 4520 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-4 |
|---|---|
| IP degree of protection | IP65/IP66 |
| NEMA degree of protection | NEMA 3R/4X/13 |
| Category | US10CS121431 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901525400 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.70 in (32.258 cm) |
| Package 1 Width | 5.00 in (12.7 cm) |
| Package 1 Length | 32.26 in (81.935 cm) |
| Package 1 Weight | 6.080 oz (172.365 g) |
