9001SKS11 - Schneider Electric - Square D Motor Control Part And Accessory

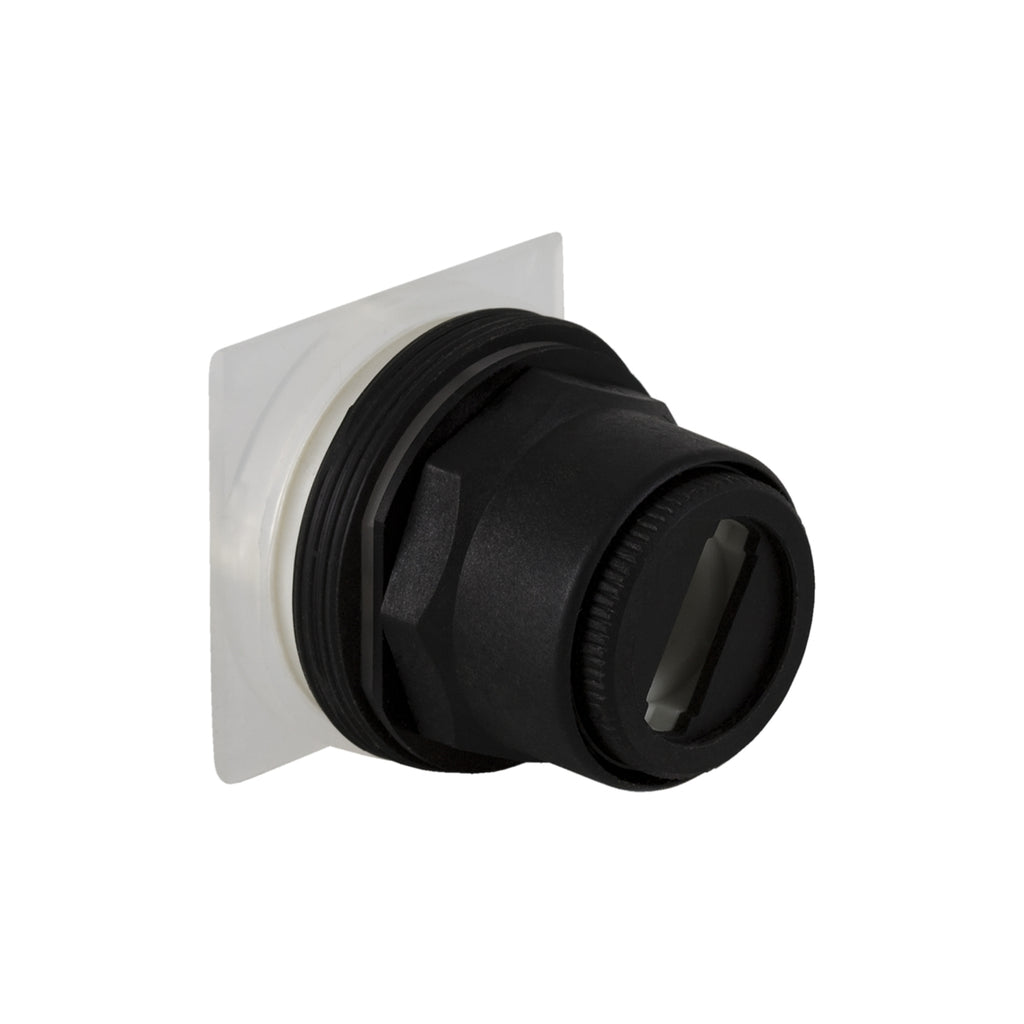

The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This 2 postion non-illuminated selector switch has a plastic ring nut. The selector switch is maintained in both positions. This selctor switch has no knob. The desired knob needs to be ordered separately. Contact blocks with the desired contact arrangements must be added to this operator. When properly installed with a lens cap this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001SK |
|---|---|
| Product or Component Type | Head for selector switch |
| Device short name | 9001SK |
| Bezel material | Plastic |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Operator position information | 2 positions |
| Contacts type and composition | Without contact block |
| Device presentation | Basic element |
| Operator profile | Without handle |
| Type of operator | Stay put |
| Size | 30 mm |
| Cam profile | 5 |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 |
| IP degree of protection | IP66 IEC 60529 |
| NEMA degree of protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Product Certifications | UL listed file E42259 CCN NKCR CE CSA LR24590 class 3211 03 |
| Category | US10CS121429 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901458159 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.00 in (7.620 cm) |
| Package 1 Width | 2.30 in (5.842 cm) |
| Package 1 Length | 2.10 in (5.334 cm) |
| Package 1 Weight | 1.919 oz (54.400 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 11 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 5.91 in (15.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 28.148 oz (798.000 g) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 352 |
| Package 3 Height | 29.53 in (75.000 cm) |
| Package 3 Width | 23.62 in (60.000 cm) |
| Package 3 Length | 31.50 in (80.000 cm) |
| Package 3 Weight | 73.963 lb(US) (33.549 kg) |
