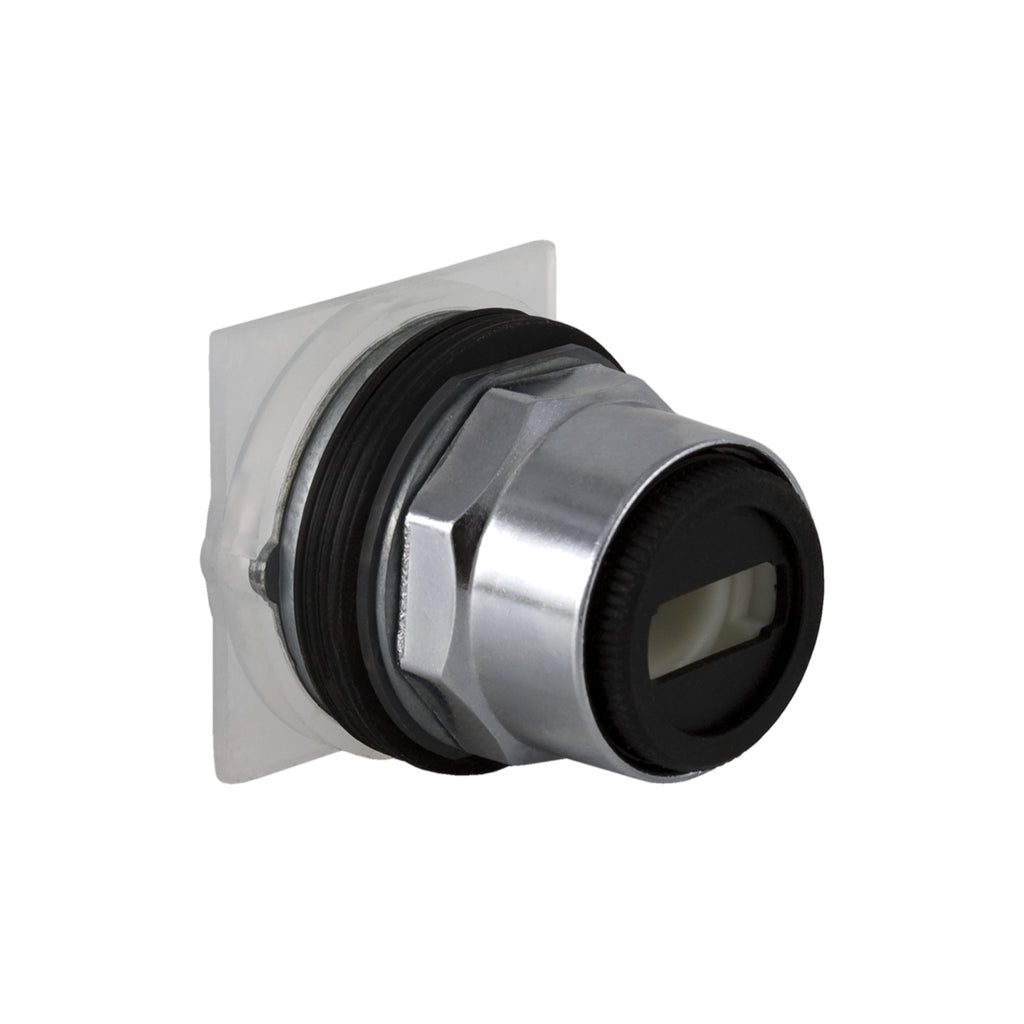

9001SKS43 - Schneider Electric - Square D Motor Control Part And Accessory
This selector switch provides a versatile and highly visible interface for controlling your machines It provides a clear help in setting your machines in various operating modes It is impact resistant, dust resistant, water resistant, corrosion resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Head for selector switch |
| Enclosure type |
Dust and oil resistant weatherproof enclosure indoor/outdoor |
| Range of Product |
Harmony 9001SK |
Complementary
| Bezel material |
Plastic |
| Cap/operator or lens colour |
without cap |
| Contacts type and composition |
Without contact block |
| Operator position information |
3 positions |
| Operator profile |
Without handle |
| Operator profile |
1 projecting push-button |
| Size |
30 mm |
| Type of operator |
Maintained |
| Mechanical durability |
0.5 Mcycles |
| Type of operator |
Stay put |
| Contacts type and composition |
Without contact block |
Environment
| IP Degree of Protection |
IP65/IP66 |
| NEMA Degree of Protection |
NEMA 3R/4X/13 |
| Product Certifications |
CSA LR 25490 class 3211 03
CE
UL listed file E42259 CCN NKCR |
Ordering and shipping details
| Category |
US10CS121429 |
| Discount Schedule |
0CS1 |
| GTIN |
785901483823 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.00 in (5.08 cm) |
| Package 1 Width |
2.300 in (5.842 cm) |
| Package 1 Length |
2.800 in (7.112 cm) |
| Package weight(Lbs) |
1.920 oz (54.431 g) |
PRODUCT DATASHEET
9001SKS43_Product Datasheet
