Description

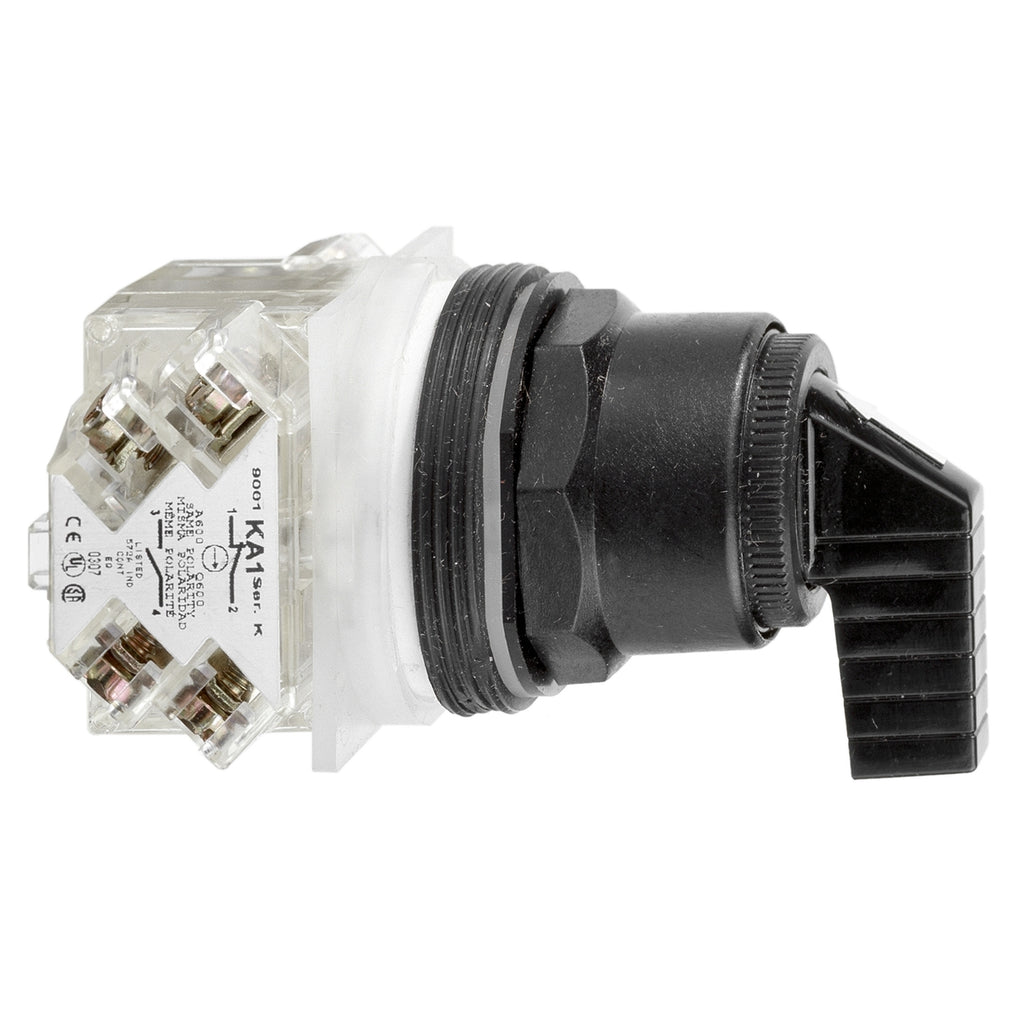

9001SKS43FB - Schneider Electric - Square D Switch
This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001SK |
|---|---|
| Product or Component Type | Head for selector switch |
| Device short name | 9001SK |
| Type of operator | stay put |
| Operator profile | Black long handle |
| Bezel material | Plastic |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Product Weight | 0.130 lb(US) (0.059 kg) |
| Shape of signaling unit head | Octagonal |
| Operator position information | 3 positions |
| Contacts type and composition | Without contact block |
| Mechanical durability | 0.5 Mcycles |
| Product compatibility | 9001KA1 side 1 or 2 |
| Device presentation | Basic element |
| Cap/operator or lens colour | Black |
| Operator profile | Long handle |
| Type of operator | Stay put |
| Size | 30 mm |
| Cam profile | 3 |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP Degree of Protection | IP65/IP66 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X NEMA 6 |
| Standards | JIS C 852 IEC 60947-5-1 IEC 60947-5-4 IEC 60947-1 JIS C 4520 CSA C22.2 No 14 UL 508 |
| Product Certifications | UL 508 NEMA |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Category | US10CS121429 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901849940 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.800 in (7.112 cm) |
| Package 1 Width | 2.300 in (5.842 cm) |
| Package 1 Length | 2.00 in (5.08 cm) |
| Package weight(Lbs) | 2.240 oz (63.503 g) |
