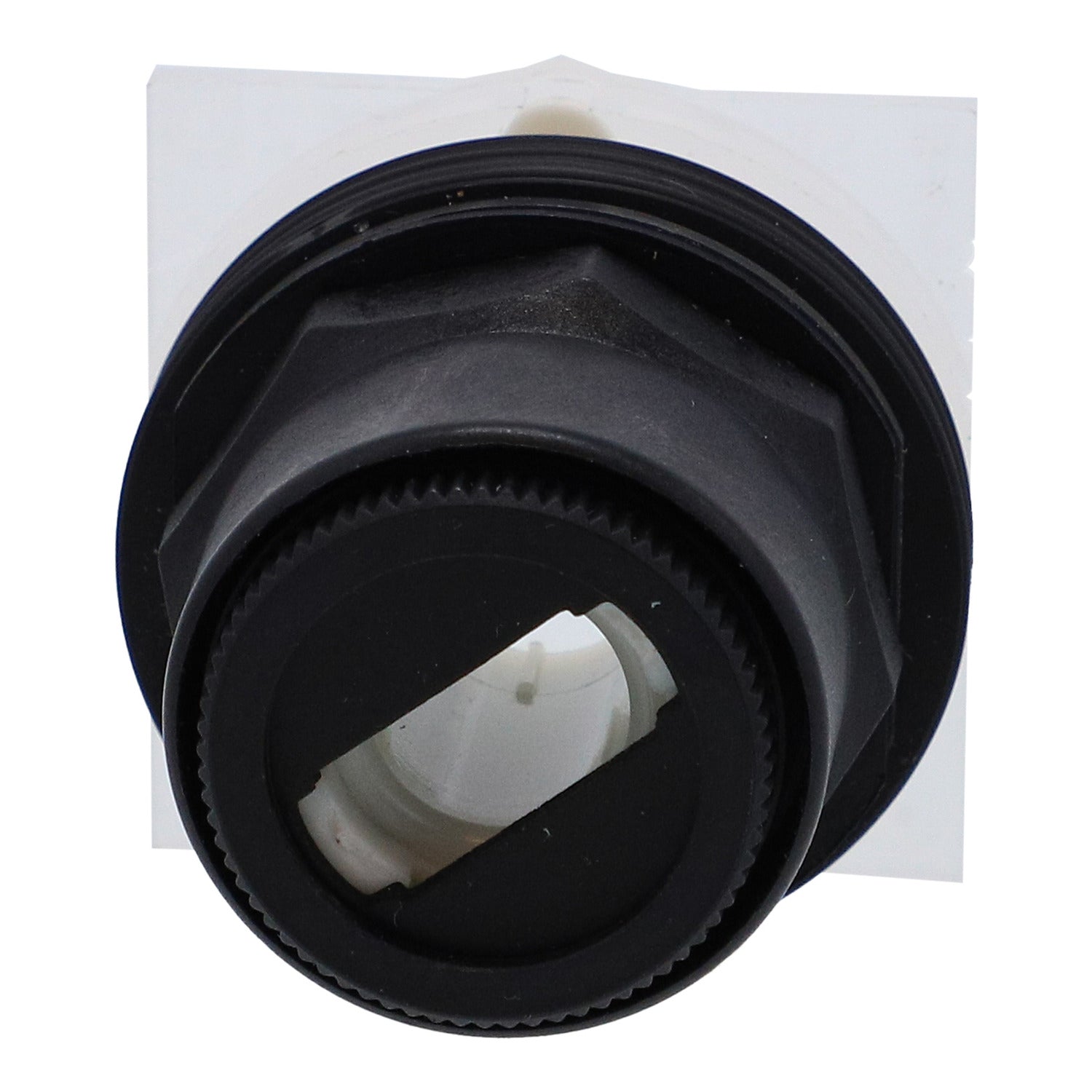

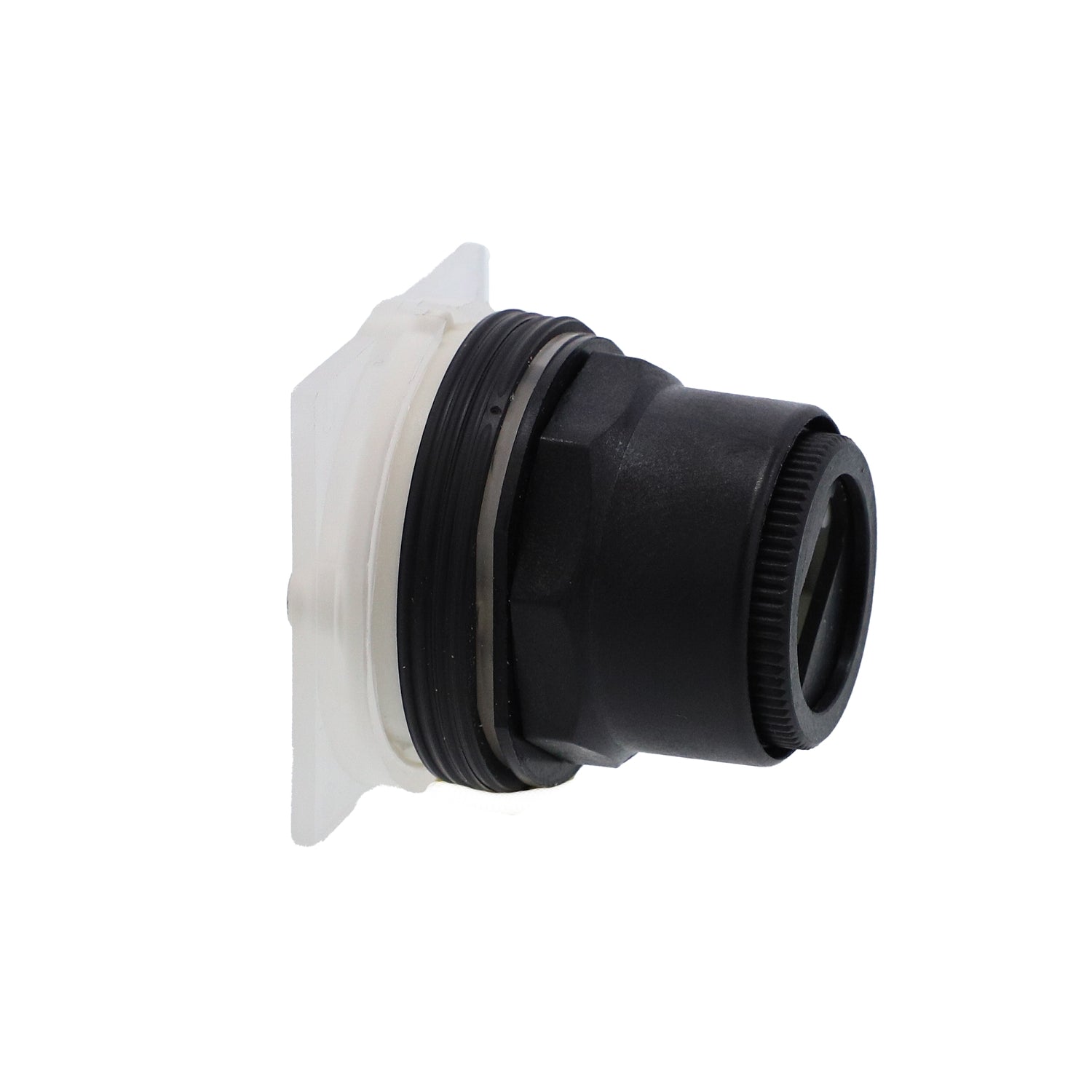

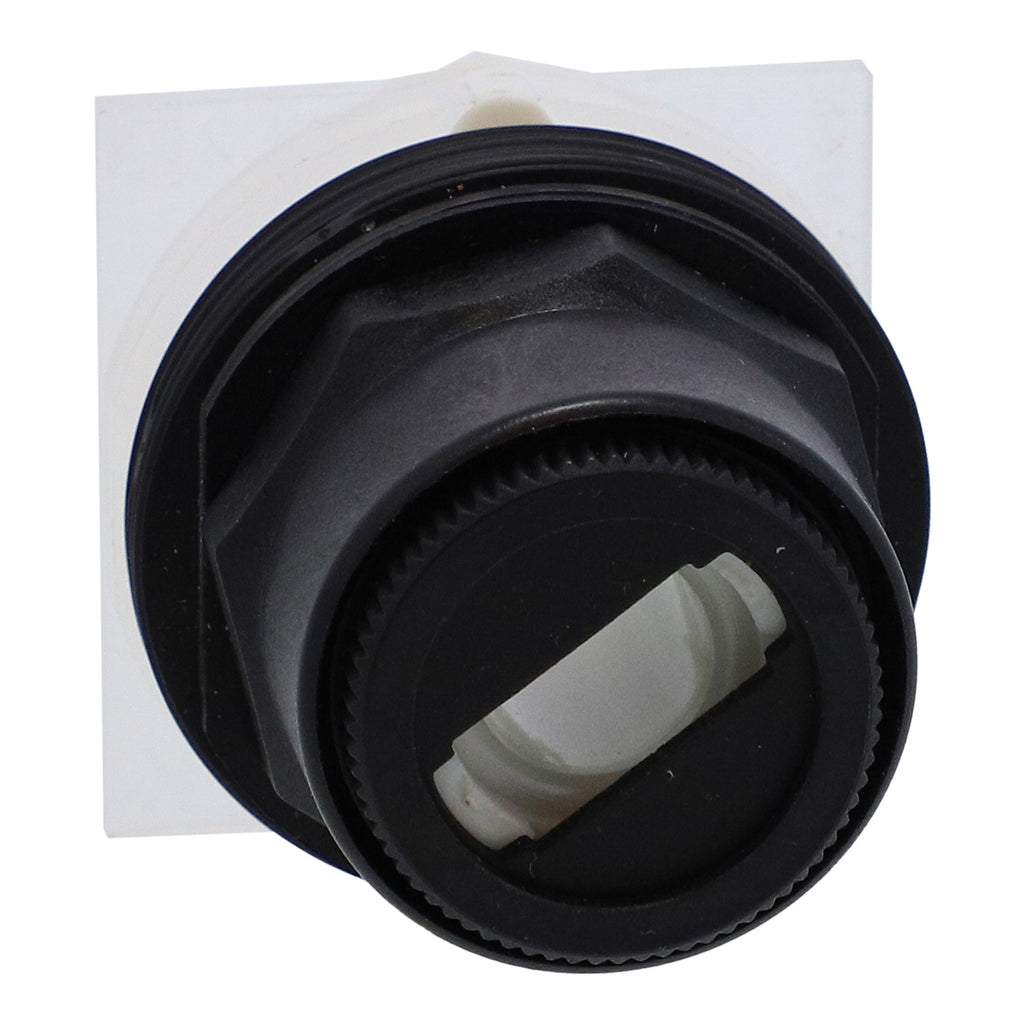

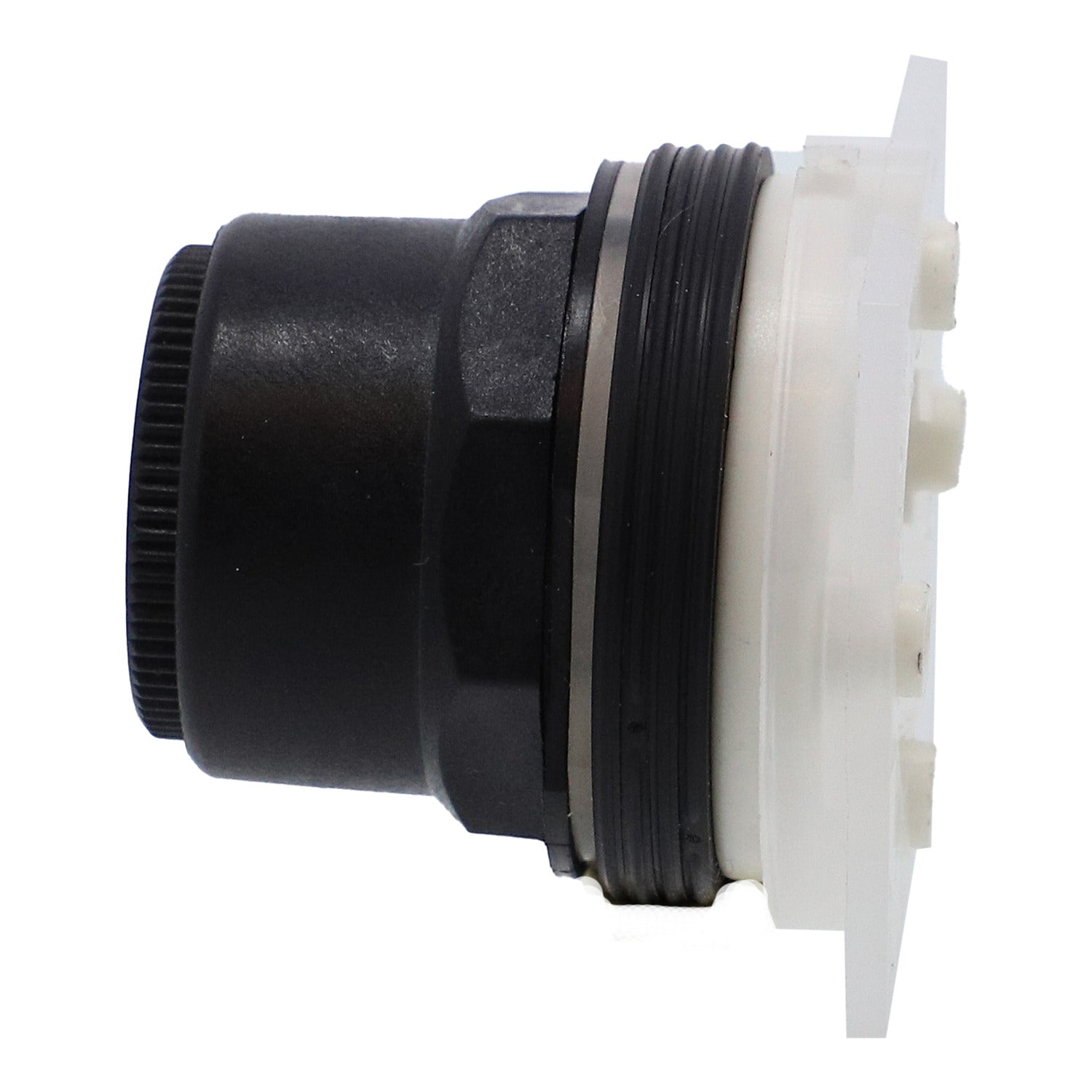

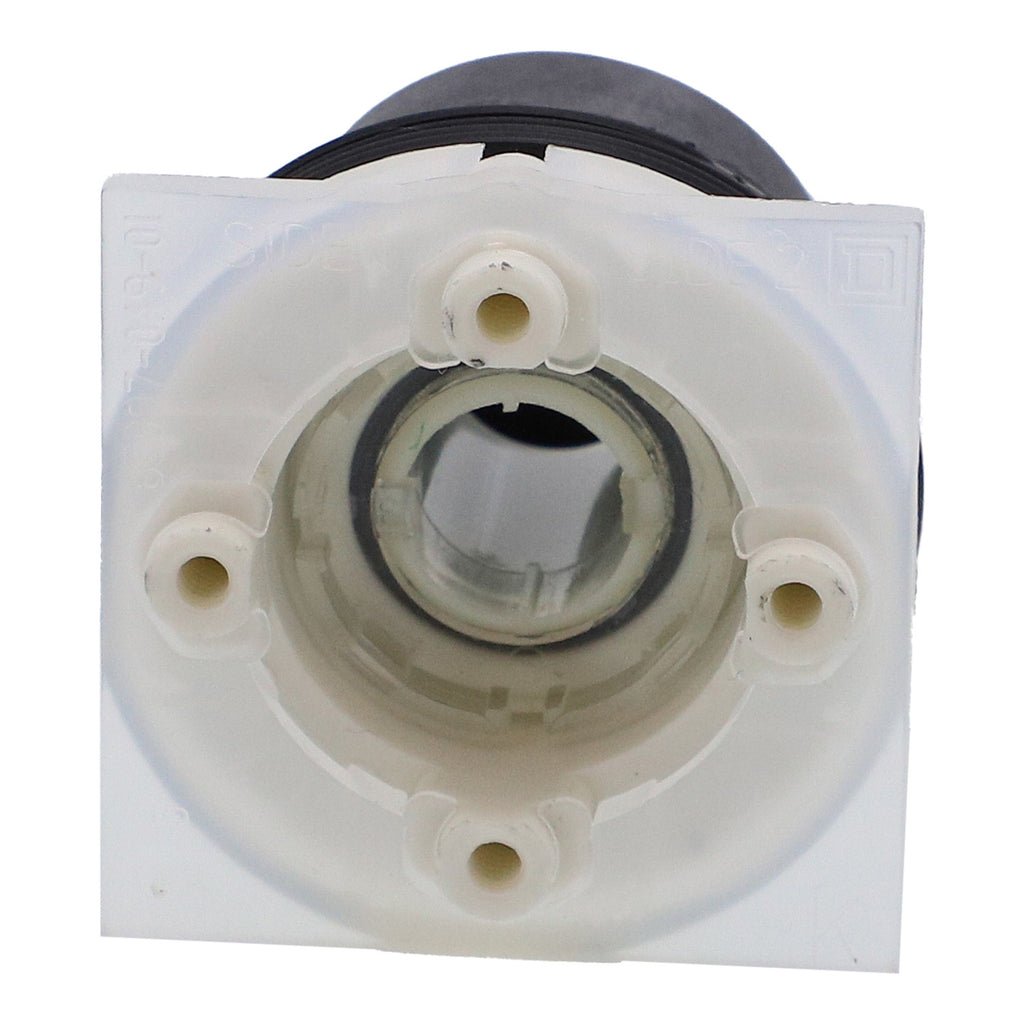

9001SKS5 - Schneider Electric - Square D Selector Switch
The Schneider Electric 9001SKS5 is a 30mm selector switch head from the Harmony 9001SK series, designed for industrial control applications requiring a durable and modular interface. This unit features a 3-position return-to-center mechanism, allowing for a neutral position when released. It is supplied without a handle, enabling customization based on specific operational needs.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001SK |
|---|---|
| Product or Component Type | Head for selector switch |
| Device short name | 9001SK |
| Type of operator | Both sides to centre spring return |
| Bezel material | Plastic |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Net Weight | 0.130 lb(US) (0.059 kg) |
| Shape of signaling unit head | Round |
| Operator position information | 3 positions |
| Contacts type and composition | Without contact block |
| Mechanical durability | 0.5 Mcycles |
| Device presentation | Basic element |
| Operator profile | Without handle |
| Type of operator | Spring return |
| Size | 30 mm |
| Return | Both sides to centre |
| Cam profile | 0 |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP65/IP66 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X NEMA 6 |
| Standards | UL 508 JIS C 852 CSA C22.2 No 14 IEC 60947-5-1 IEC 60947-5-4 JIS C 4520 IEC 60947-1 |
| Product Certifications | UL 508 NEMA |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Category | US10CS121429 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901779841 |
| Returnability | No |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.62 in (19.355 cm) |
| Package 1 Width | 3.00 in (7.62 cm) |
| Package 1 Length | 19.35 in (49.161 cm) |
| Package 1 Weight | 2.080 oz (58.967 g) |
