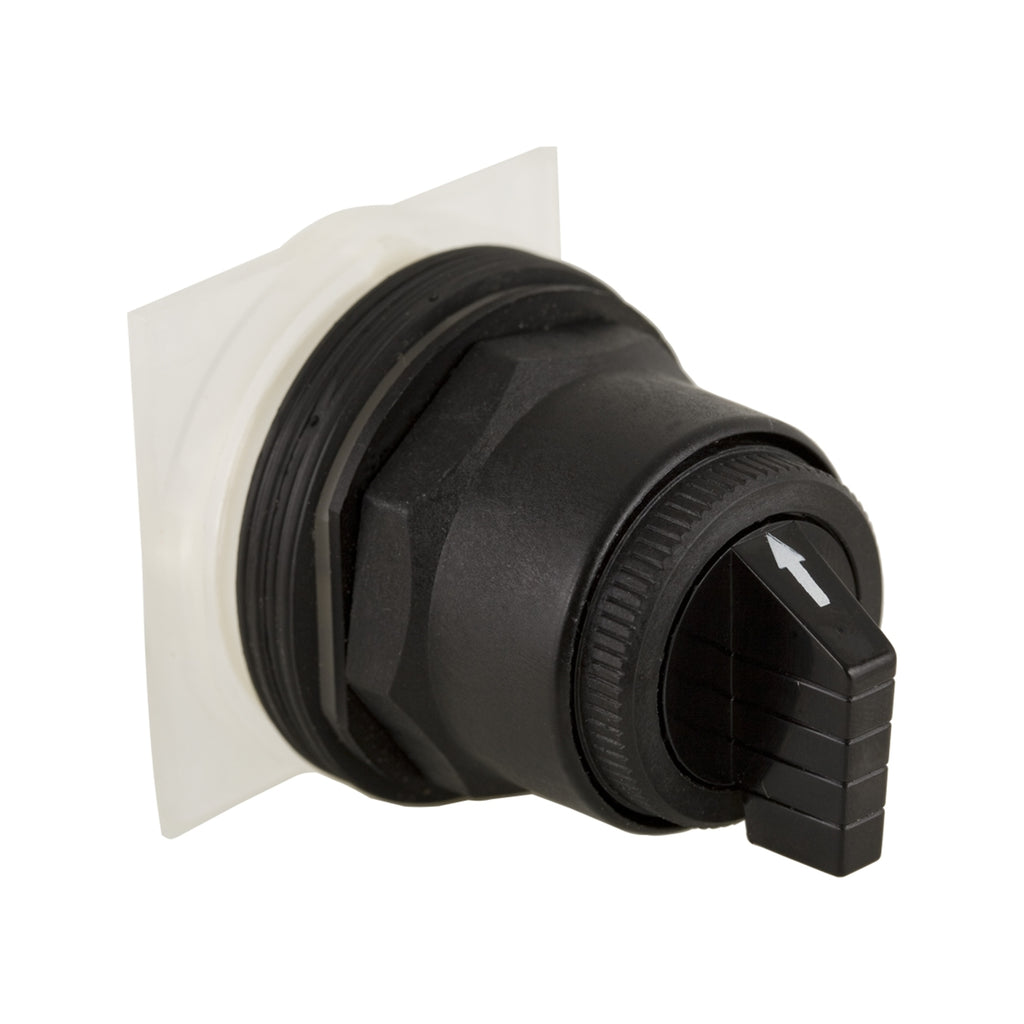

9001SKS53B - Schneider Electric - Square D Selector Switch
This selector switch is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a black standard knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 3 positions. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001SK |
| Product or Component Type |
Head for selector switch |
| Device short name |
9001SK |
Complementary
| Bezel material |
Plastic |
| Mounting diameter |
1.2 in (30 mm) |
| Operator position information |
3 positions |
| Contacts type and composition |
Without contact block |
| Mechanical durability |
0.5 Mcycles |
| Device presentation |
Basic element |
| Cap/operator or lens colour |
Black |
| Operator profile |
Standard handle |
| Type of operator |
Spring return |
| Size |
30 mm |
| Return |
Both sides to centre |
| Cam profile |
3 |
Environment
| Protective treatment |
TC |
| Ambient Air Temperature for Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
| Electrical shock protection class |
Class II conforming to IEC 61140 |
| IP Degree of Protection |
IP65/IP66 |
| NEMA degree of protection |
NEMA 3R/4X/13 |
| Product Certifications |
UL listed file E42259 CCN NKCR
CE
CSA LR24590 class 3211 03 |
Ordering and shipping details
| Category |
US10CS121429 |
| Discount Schedule |
0CS1 |
| GTIN |
785901848868 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.800 in (7.112 cm) |
| Package 1 Width |
2.300 in (5.842 cm) |
| Package 1 Length |
2.000 in (5.080 cm) |
| Package weight(Lbs) |
2.081 oz (59.000 g) |
| Unit Type of Package 2 |
S01 |
| Number of Units in Package 2 |
9 |
| Package 2 Height |
5.906 in (15.000 cm) |
| Package 2 Width |
5.906 in (15.000 cm) |
| Package 2 Length |
15.748 in (40.000 cm) |
| Package 2 Weight |
25.785 oz (731.000 g) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
288 |
| Package 3 Height |
29.528 in (75.000 cm) |
| Package 3 Width |
23.622 in (60.000 cm) |
| Package 3 Length |
31.496 in (80.000 cm) |
| Package 3 Weight |
69.208 lb(US) (31.392 kg) |
