9001SKT1 - Schneider Electric - Square D Selector Switch

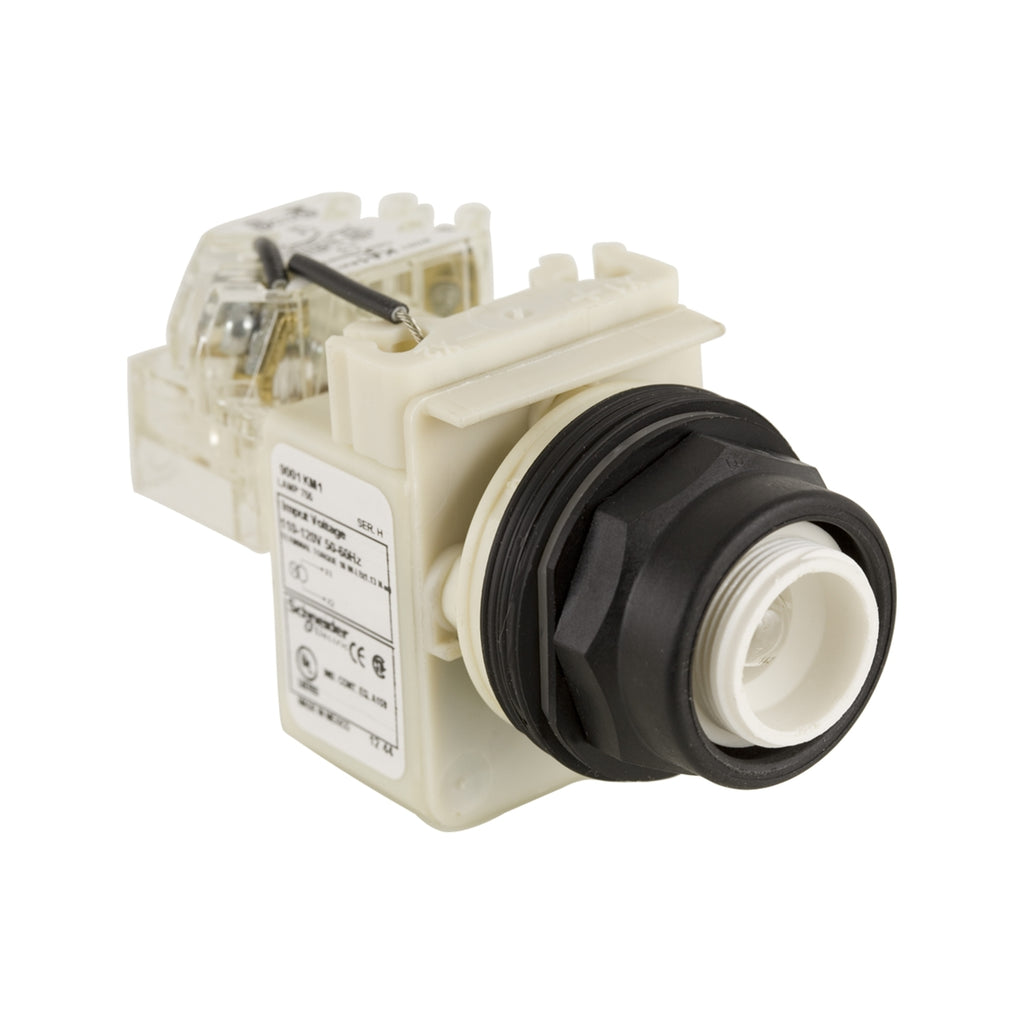

This pilot light is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel and is delivered with push to test operator. It is supplied via internal transformer with 110V to 120V AC. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001SK |
| Product or Component Type |
Head for push-to-test pilot light |
| Light block supply |
Via transformer 110 V AC 50/60 Hz
Via transformer 120 V AC 50/60 Hz |
Complementary
| Bezel material |
Plastic |
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Cap/operator or lens colour |
Without cap |
| Bulb base |
BA 9s |
| Operating Mode |
Push-to-test |
| [Us] Rated supply voltage |
110...120 V |
| Light block supply |
Via integral transformer |
| Contacts type and composition |
1 C/O |
| Supply frequency |
50...60 Hz |
| Size |
30 mm |
| Light source |
Incandescent bulb |
Environment
| Protective treatment |
TC |
| IP degree of protection |
IP65/IP66 |
Ordering and shipping details
| Category |
US10CS121429 |
| Discount Schedule |
0CS1 |
| GTIN |
785901513582 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.00 in (5.080 cm) |
| Package 1 Width |
2.20 in (5.588 cm) |
| Package 1 Length |
4.50 in (11.430 cm) |
| Package 1 Weight |
7.199 oz (204.100 g) |
| Unit Type of Package 2 |
S01 |
| Number of Units in Package 2 |
14 |
| Package 2 Height |
5.91 in (15.000 cm) |
| Package 2 Width |
5.91 in (15.000 cm) |
| Package 2 Length |
15.75 in (40.000 cm) |
| Package 2 Weight |
6.740 lb(US) (3.057 kg) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
448 |
| Package 3 Height |
29.53 in (75.000 cm) |
| Package 3 Width |
23.62 in (60.000 cm) |
| Package 3 Length |
31.50 in (80.000 cm) |
| Package 3 Weight |
233.331 lb(US) (105.837 kg) |
